Electronic Throttle Control Module

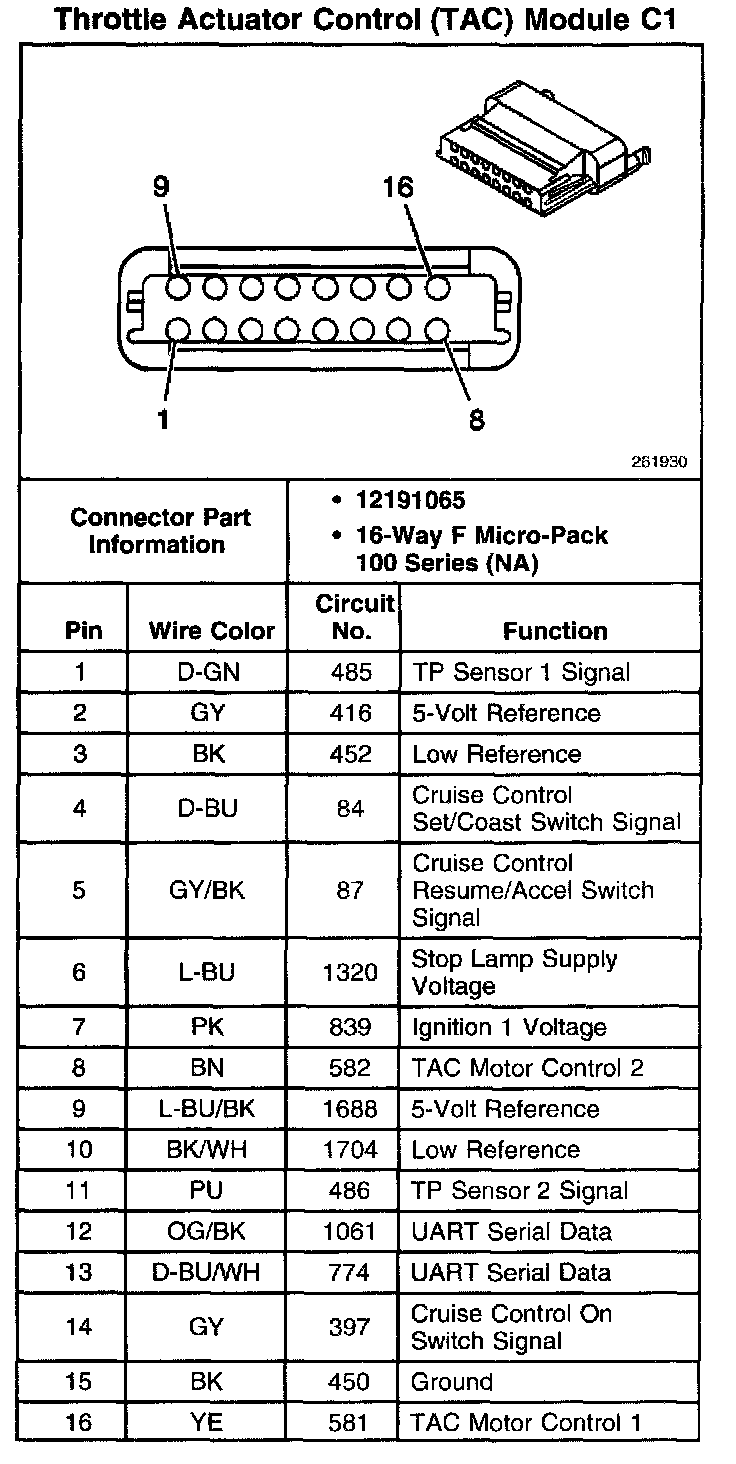

Throttle Actuator Control (TAC) Module C1:

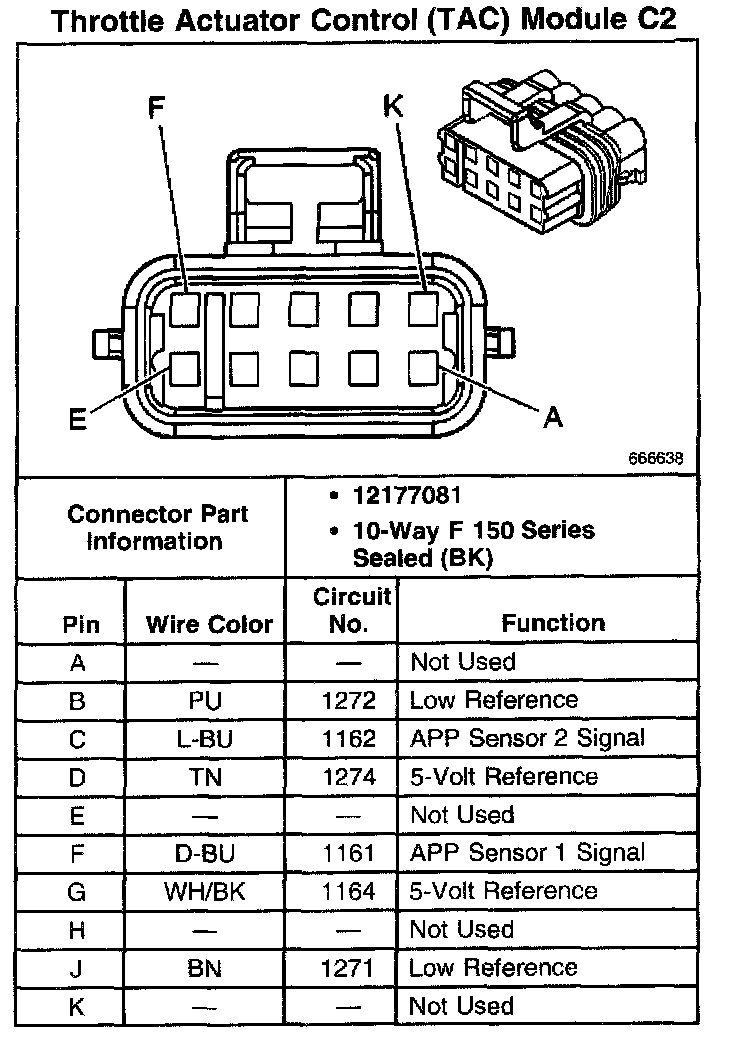

Throttle Actuator Control (TAC) Module C2:
