Endgate Module (EGM)

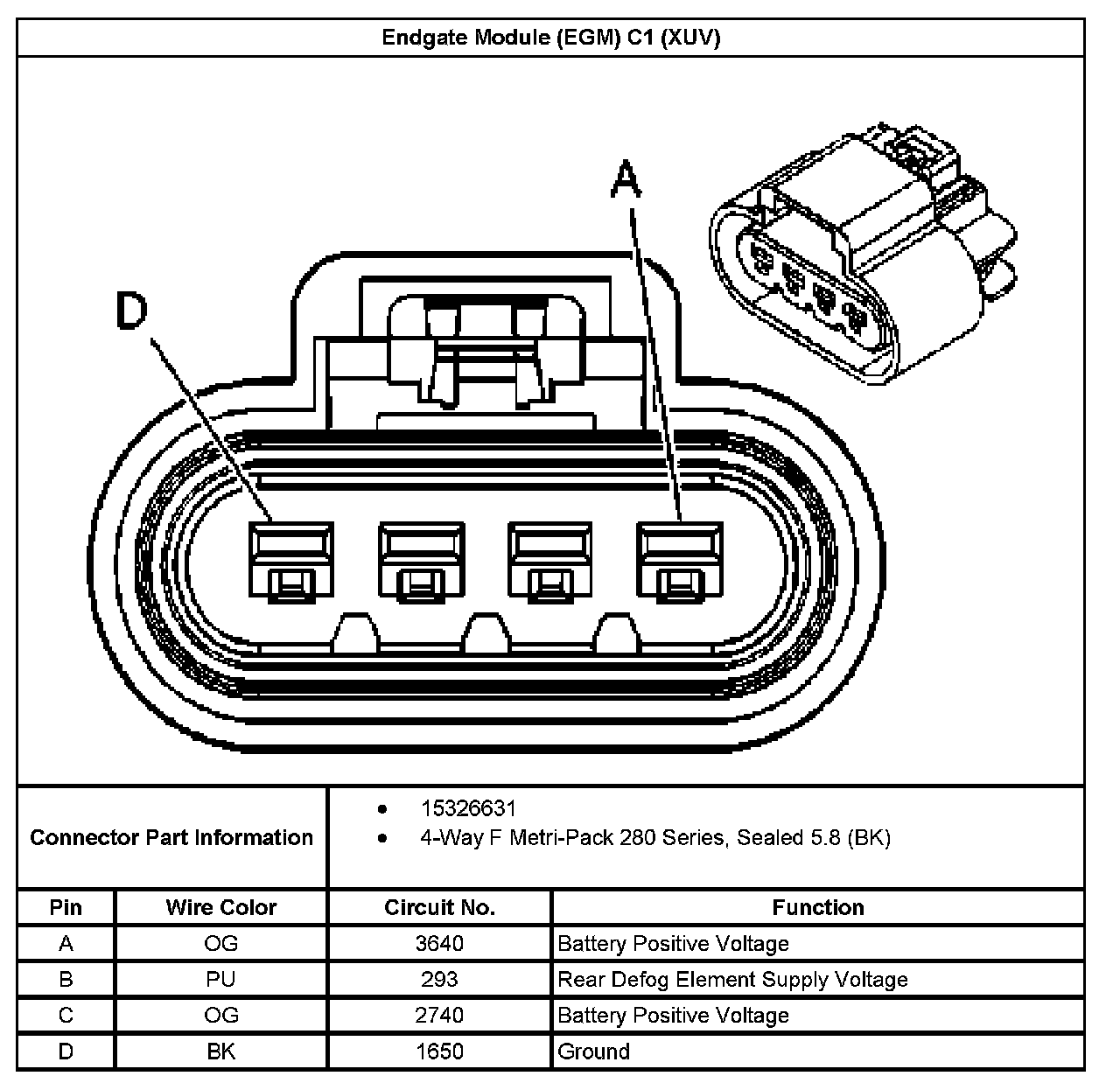

Endgate Module (EGM) C1 (XUV):

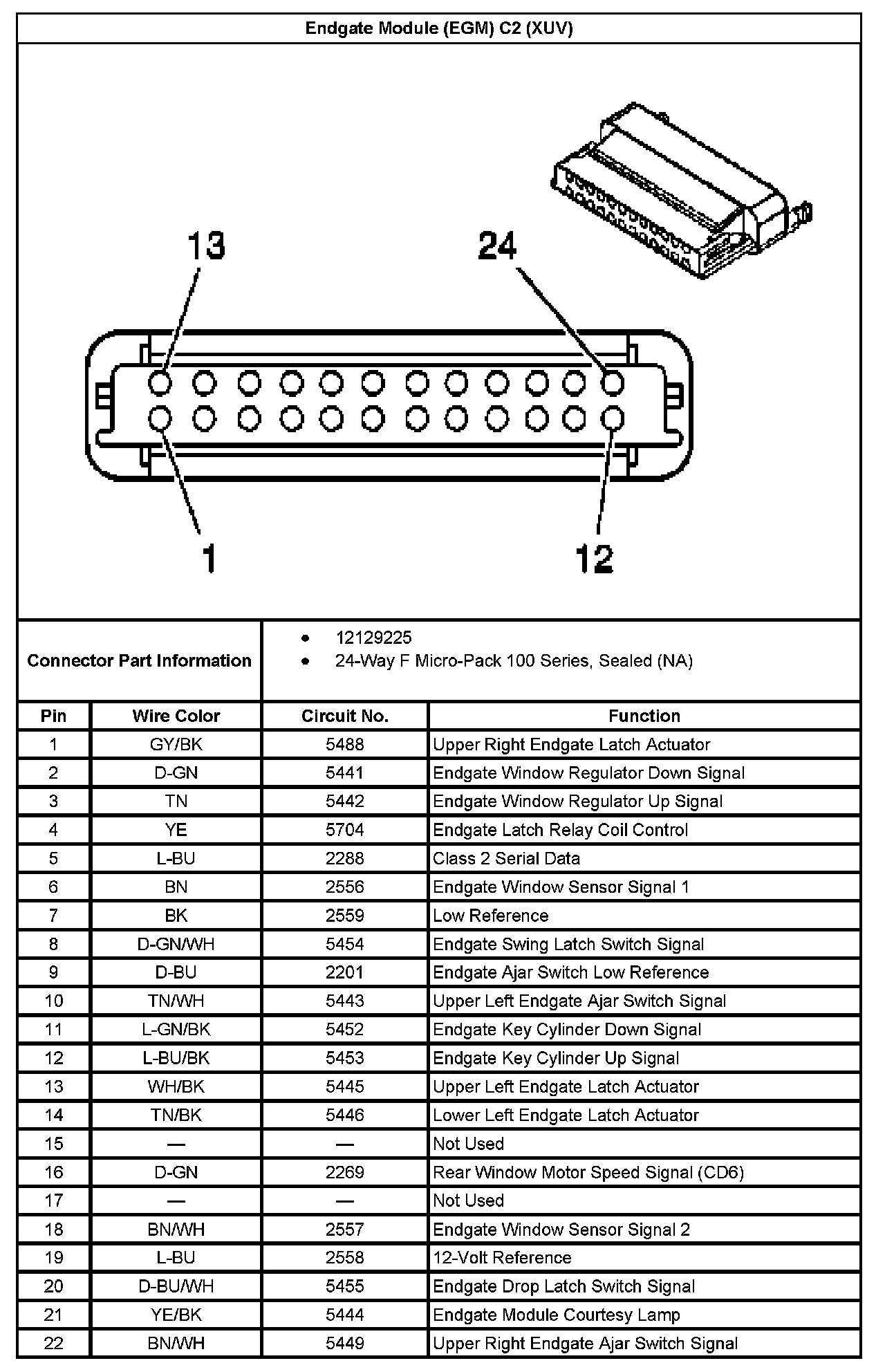

Endgate Module (EGM) C2 (XUV) Part 1:



Endgate Module (EGM) C2 (XUV) Part 2:
