Home >> Buick >> 2004 >> Rainier AWD L6-4.2L VIN S >> Repair and Diagnosis >> Diagrams >> Connector Views >> Outside Temperature Display Sensor

Outside Temperature Display Sensor

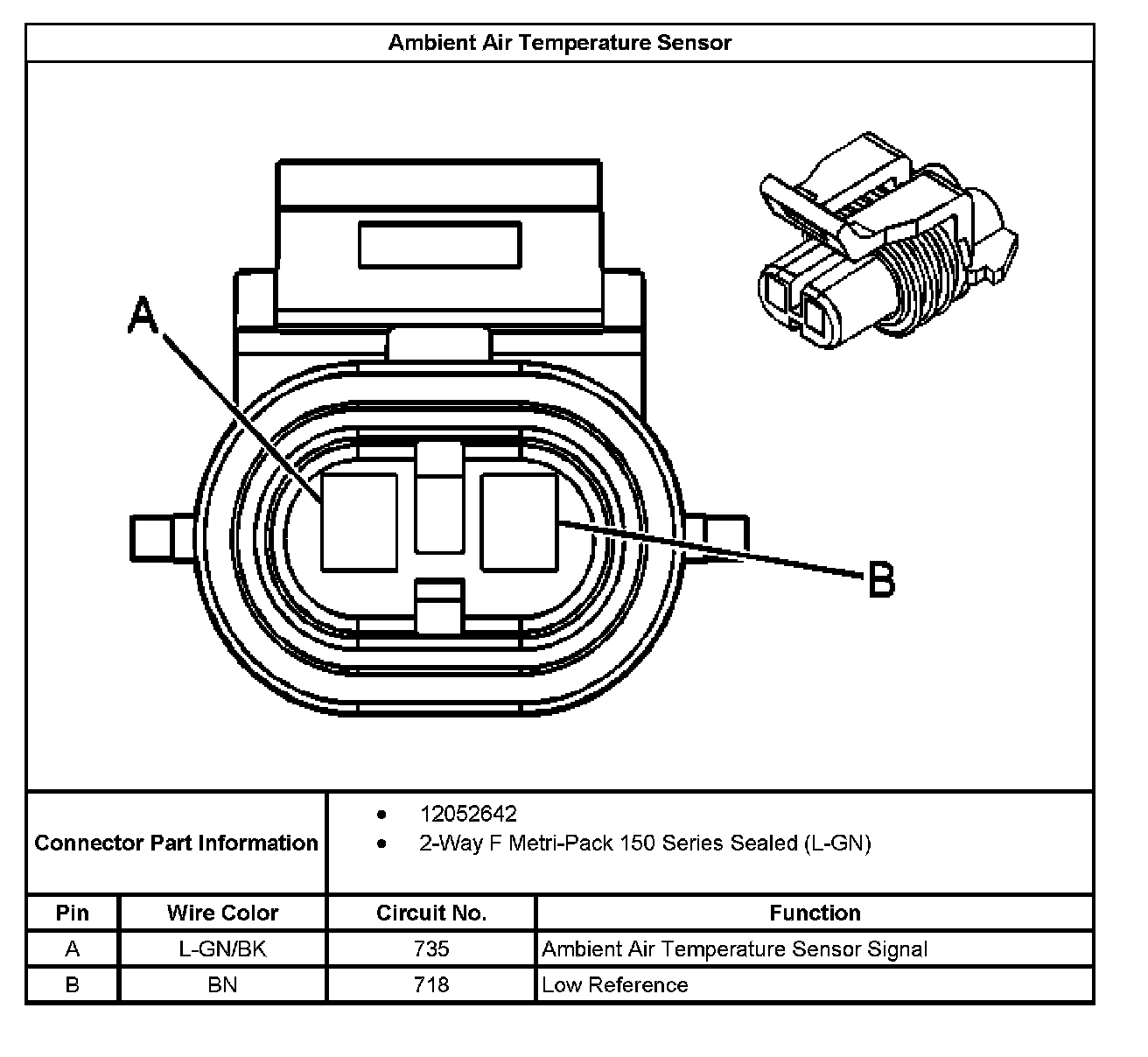

Ambient Air Temperature Sensor:
