Driver Door Module (DDM)

Driver Door Module (DDM) - C1:

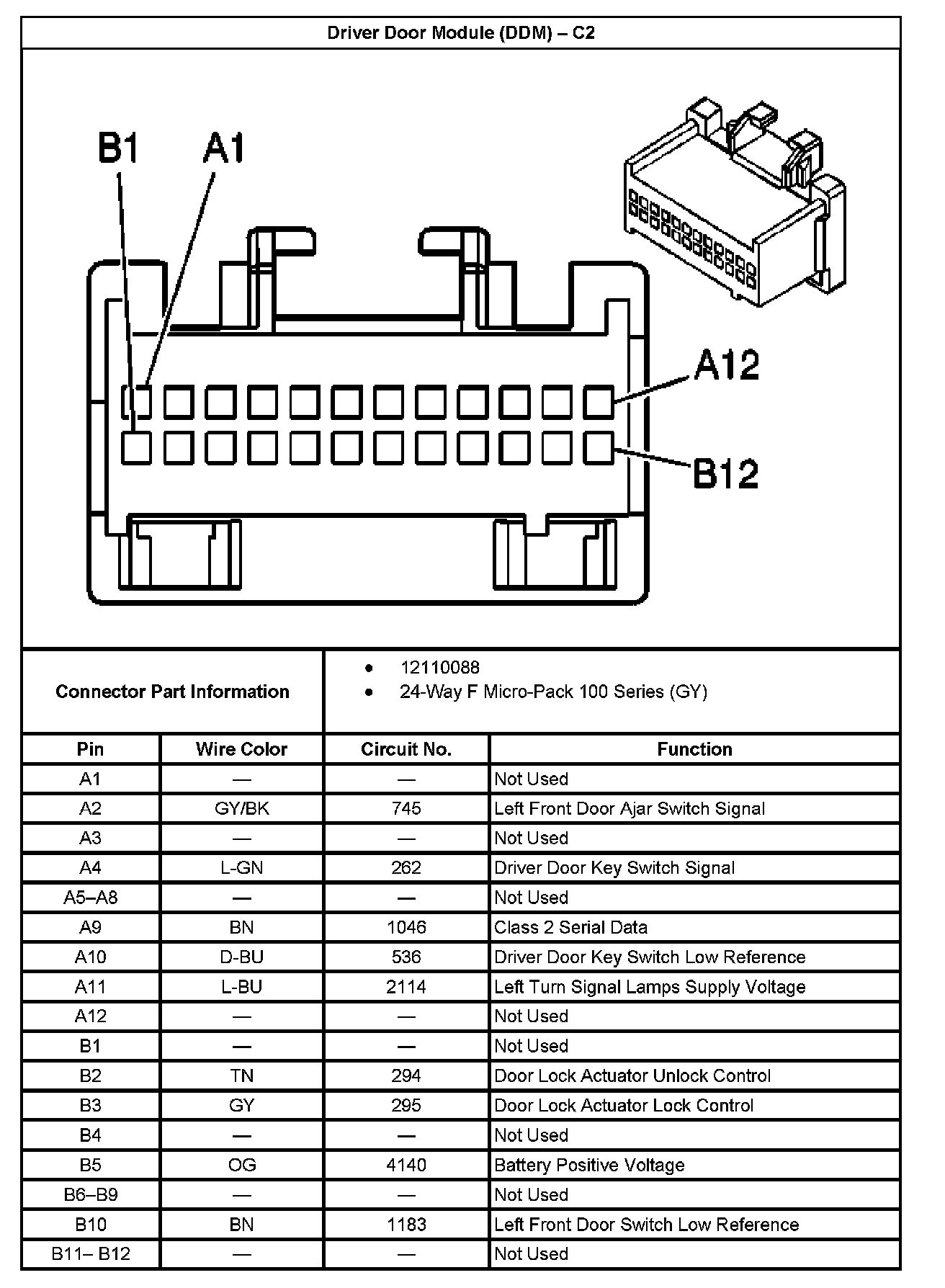

Driver Door Module (DDM) - C2:

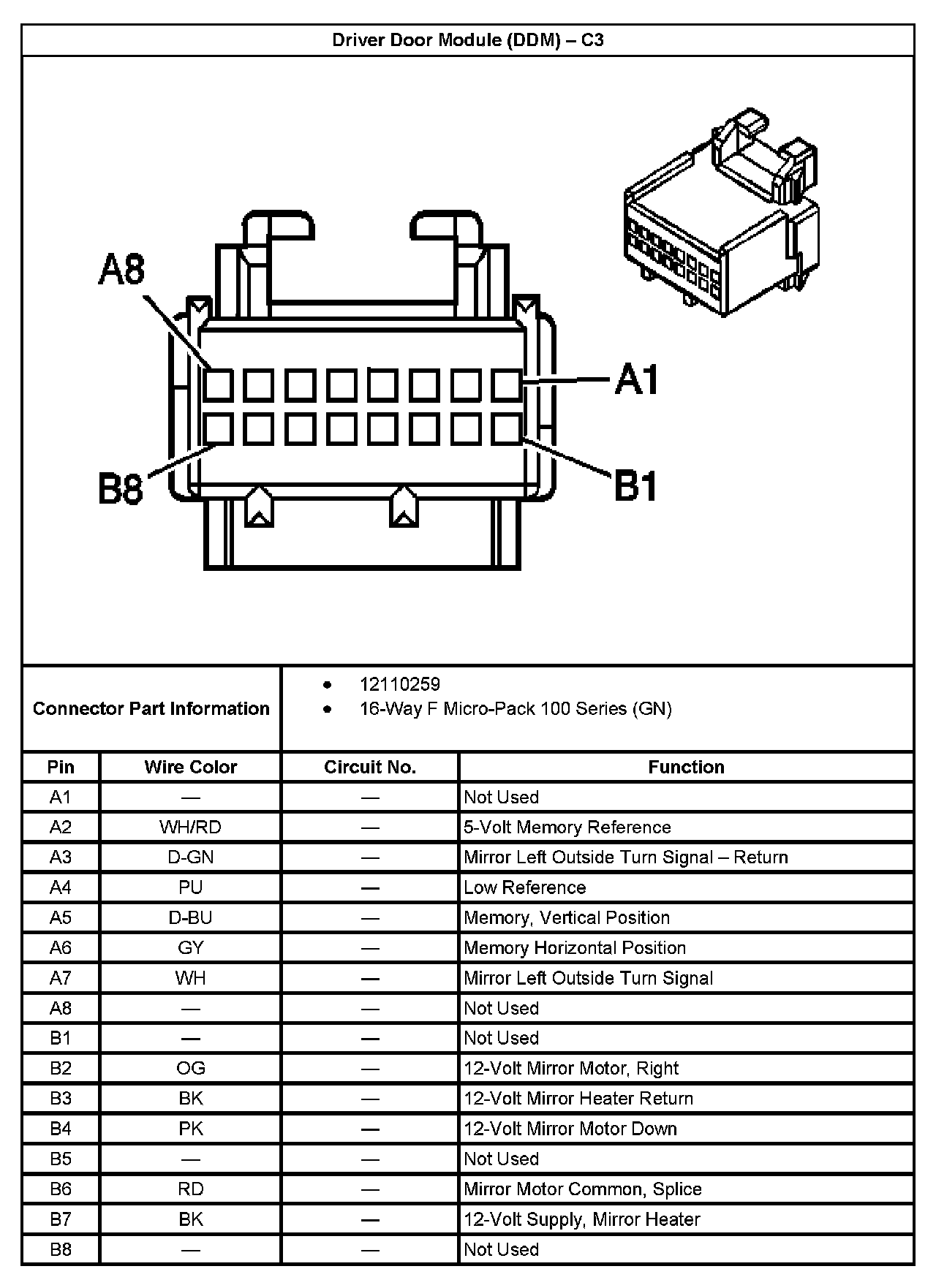

Driver Door Module (DDM) - C3:

Driver Door Module (DDM) - C4:

Driver Door Module (DDM) - C5:
