Home >> Buick >> 2004 >> Rainier AWD L6-4.2L VIN S >> Repair and Diagnosis >> Diagrams >> Connector Views >> Air Bag Control Module

Air Bag Control Module

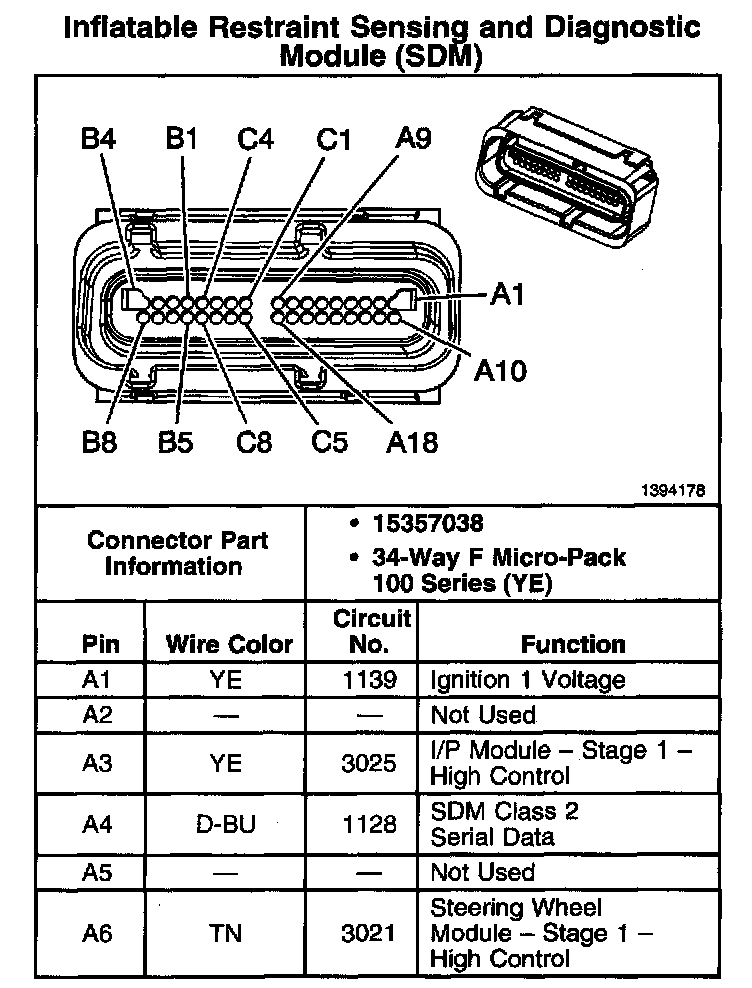

Inflatable Restraint Sensoring And Diagnostic Module (SDM):

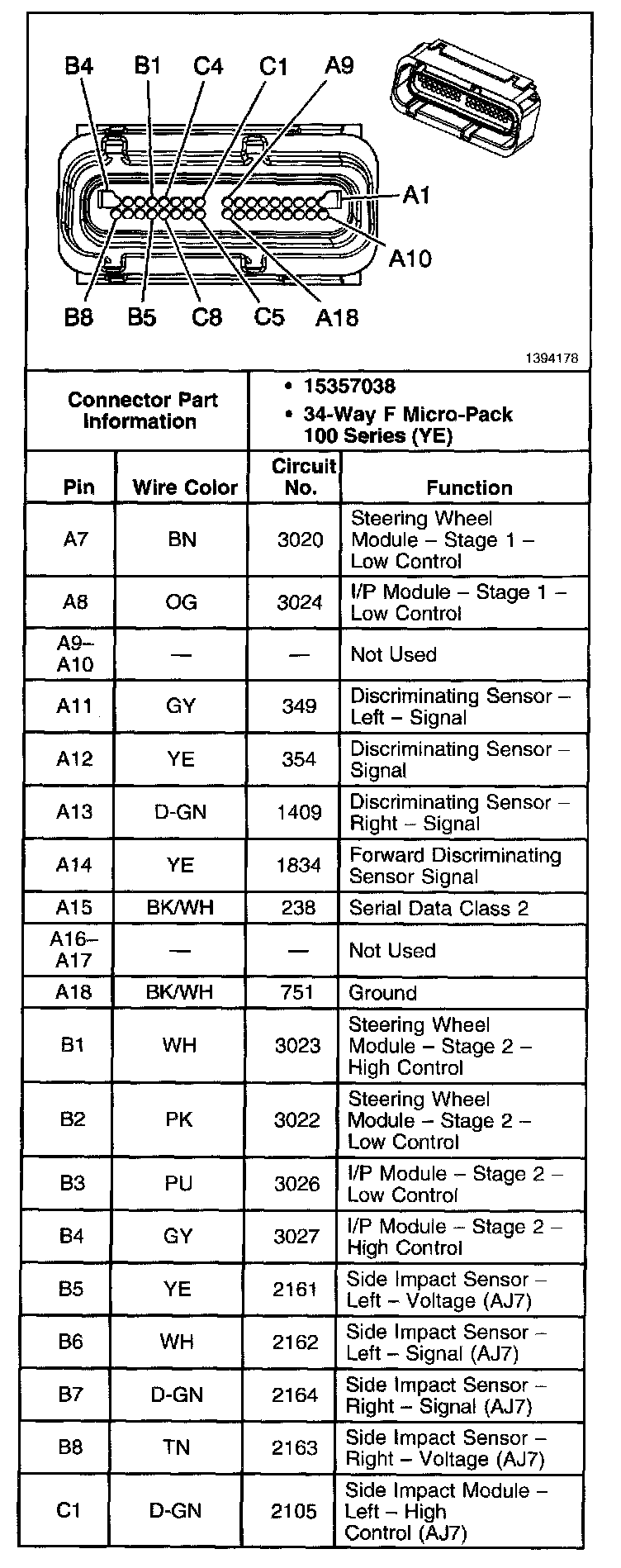

Inflatable Restraint Sensoring And Diagnostic Module (SDM) Part 2:

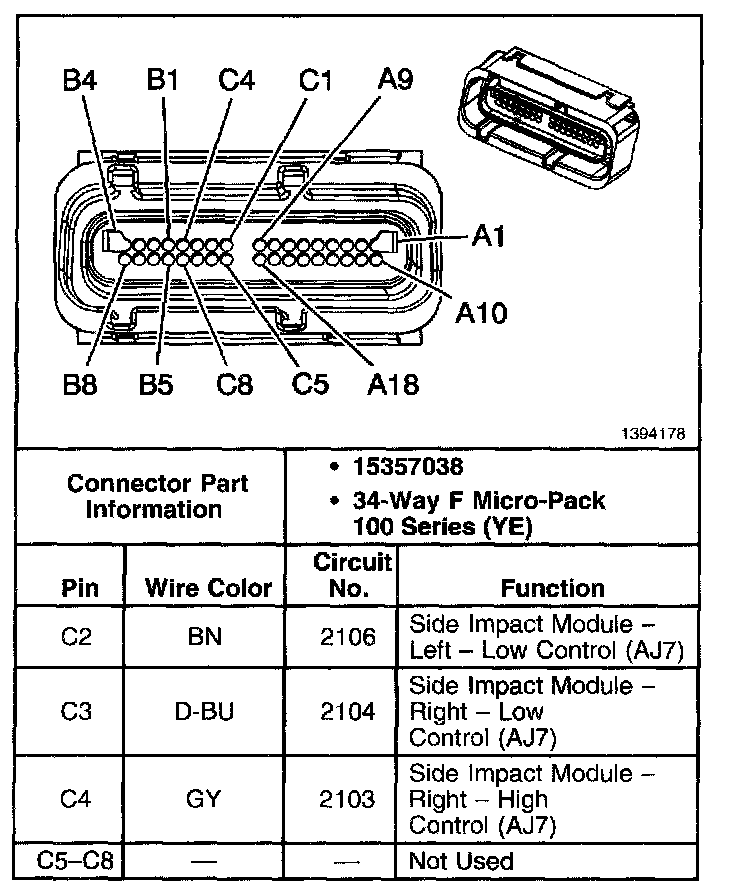

Inflatable Restraint Sensoring And Diagnostic Module (SDM) Part 3:
