Fuse Block Rear C2

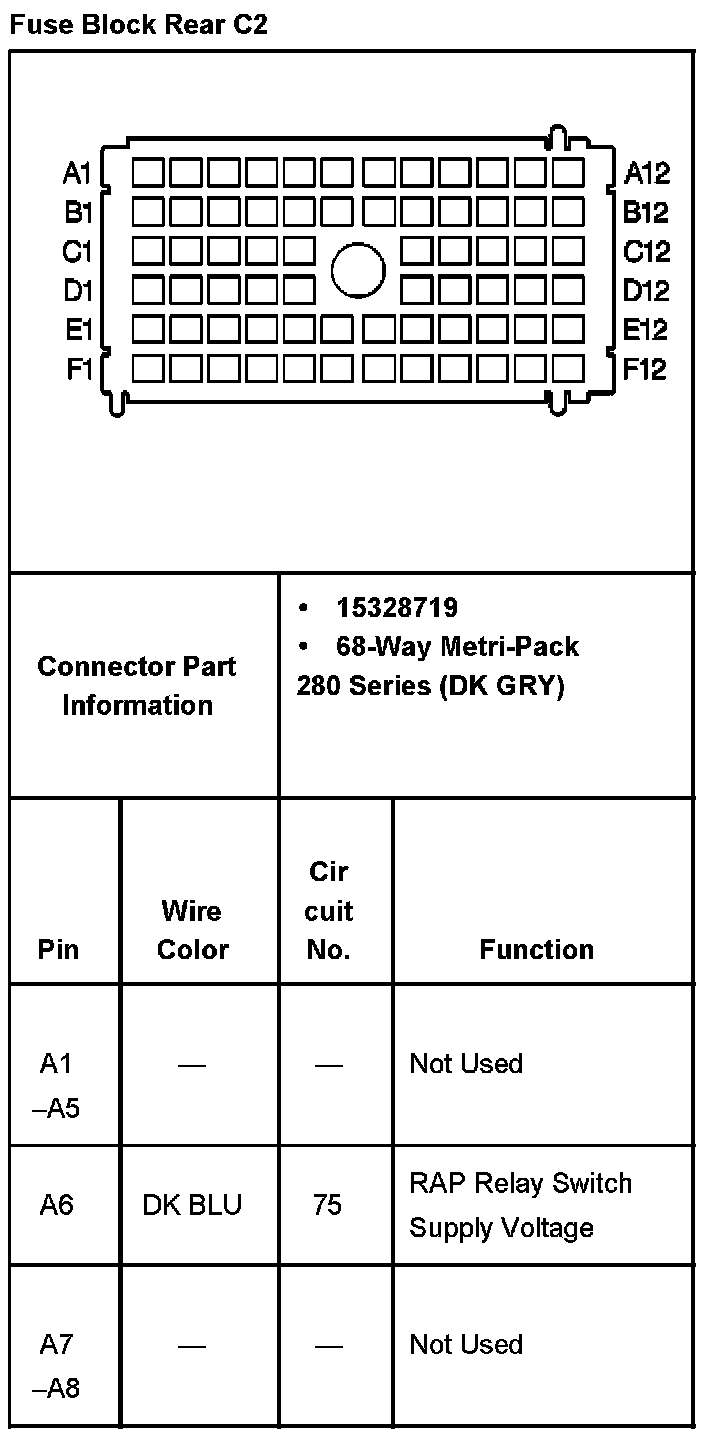

Fuse Block Rear C2 Part 1:

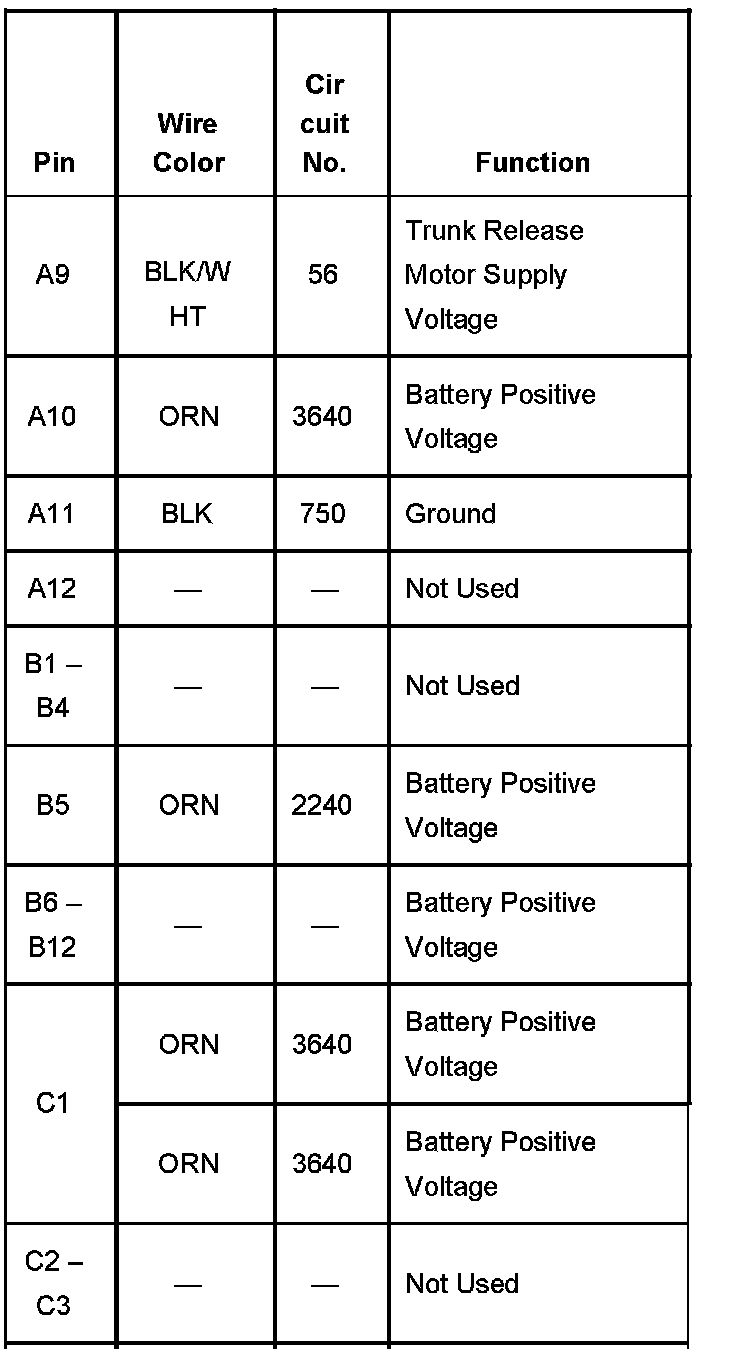

Fuse Block Rear C2 Part 2:

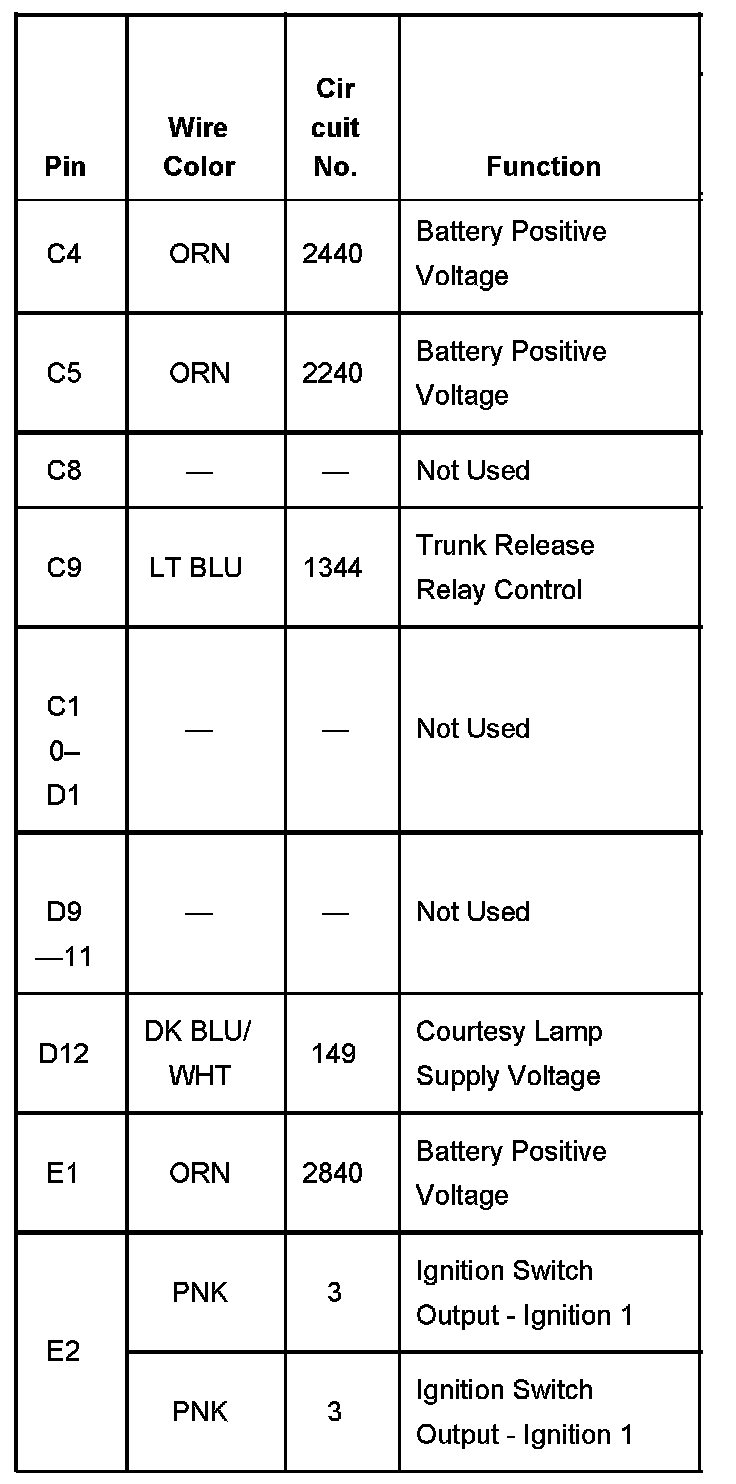

Fuse Block Rear C2 Part 3:

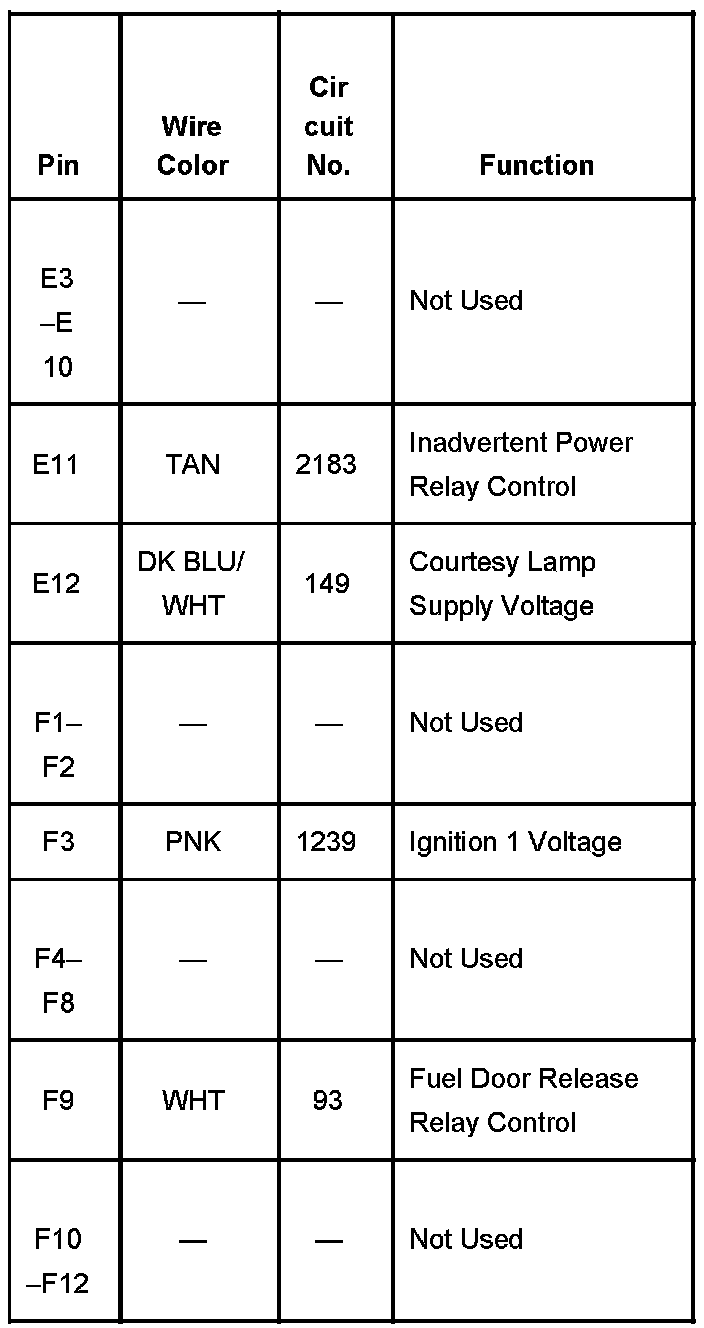

Fuse Block Rear C2 Part 4:
