Oil Pressure Sensor: Locations

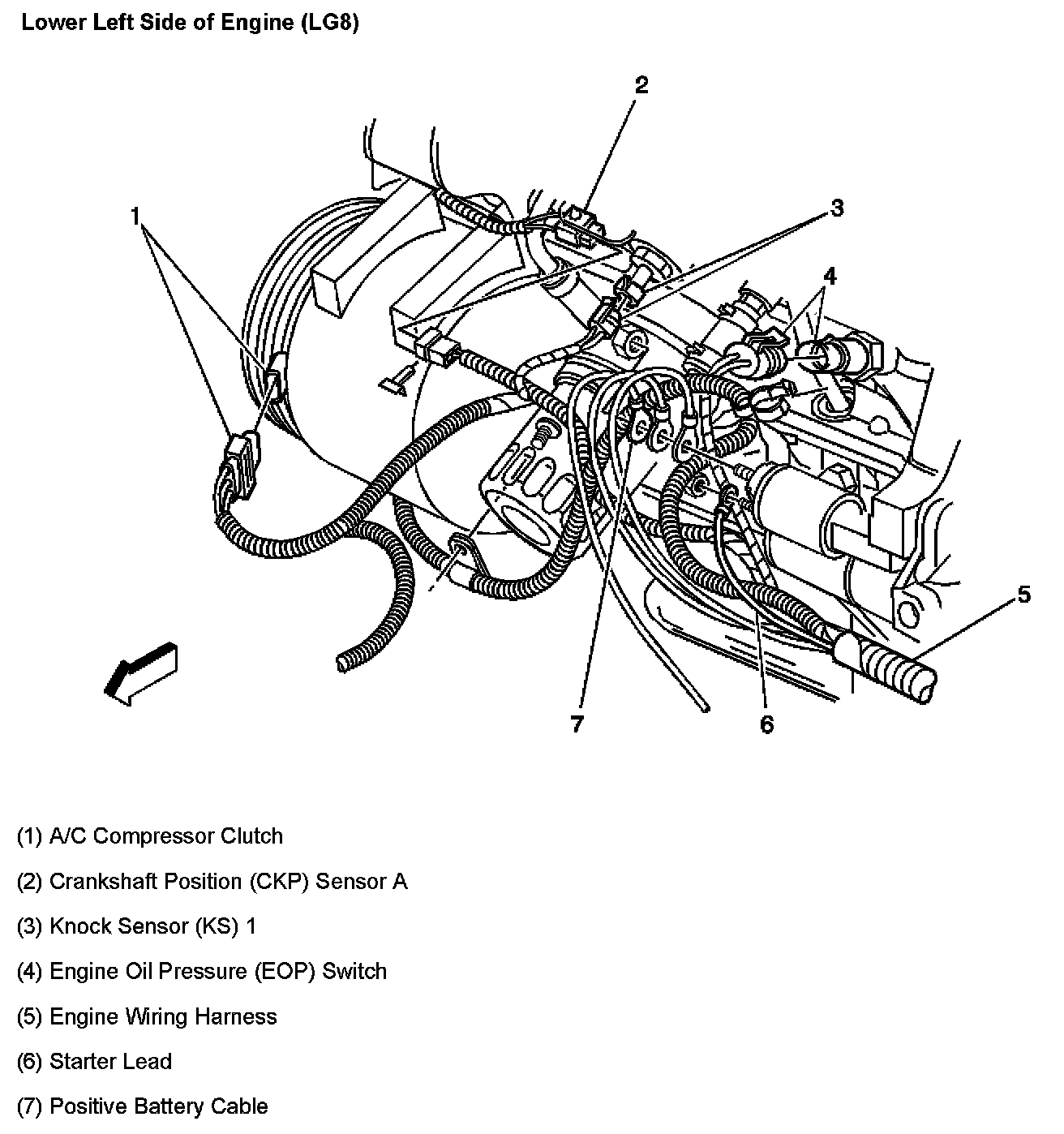

Lower Left Side Of Engine:

Lower Left Side Of Engine:

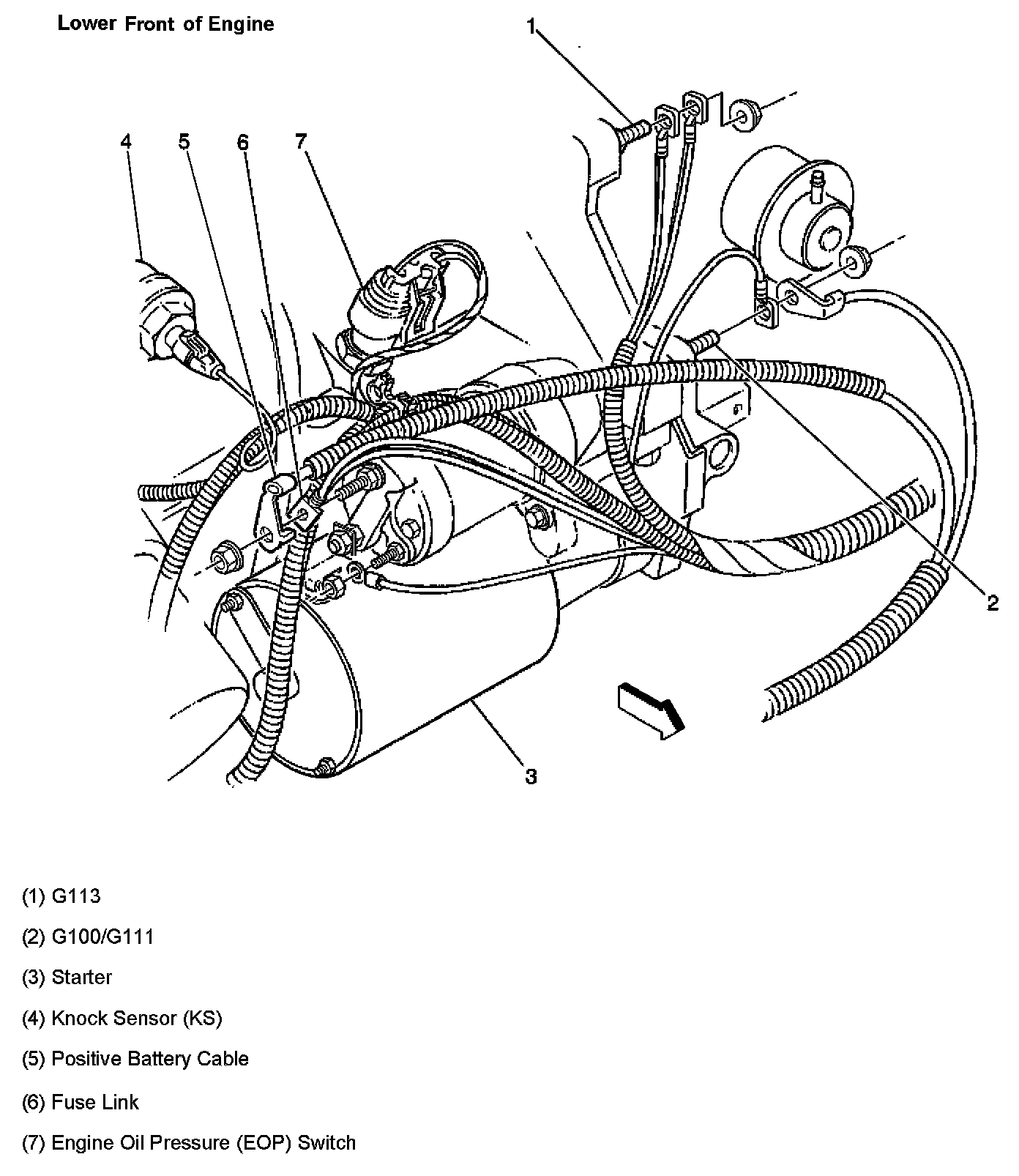

Lower Front Of Engine:

Lower Front Of The Engine:

Lower Front Of The Engine Components:
