Ignition Control Module

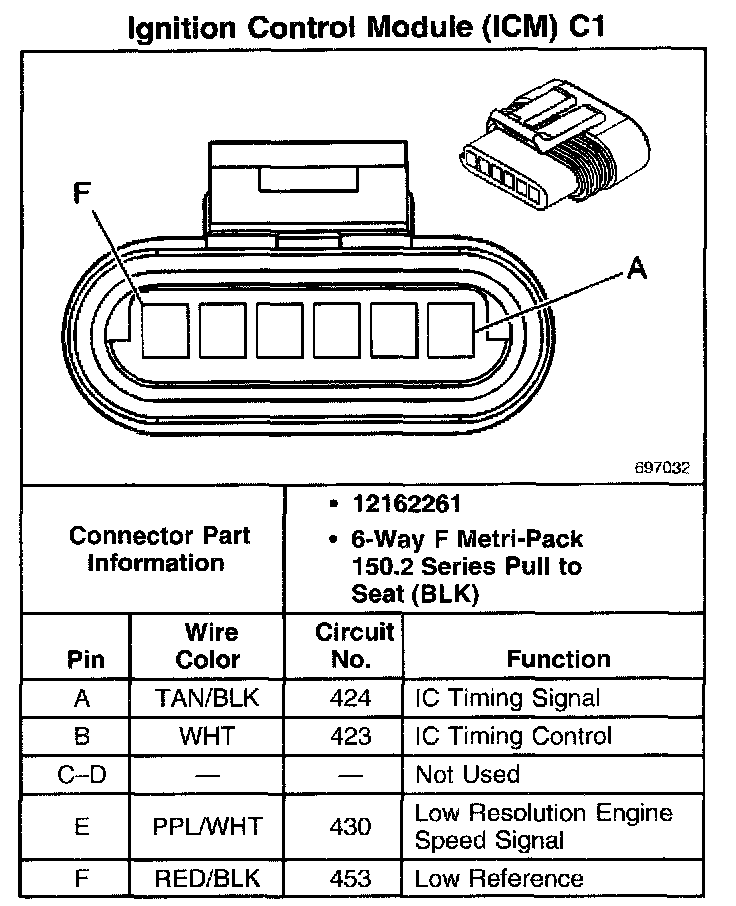

Ignition Control Module (ICM) C1:

Ignition Control Module (ICM) C2:

Ignition Control Module (ICM) C3:
