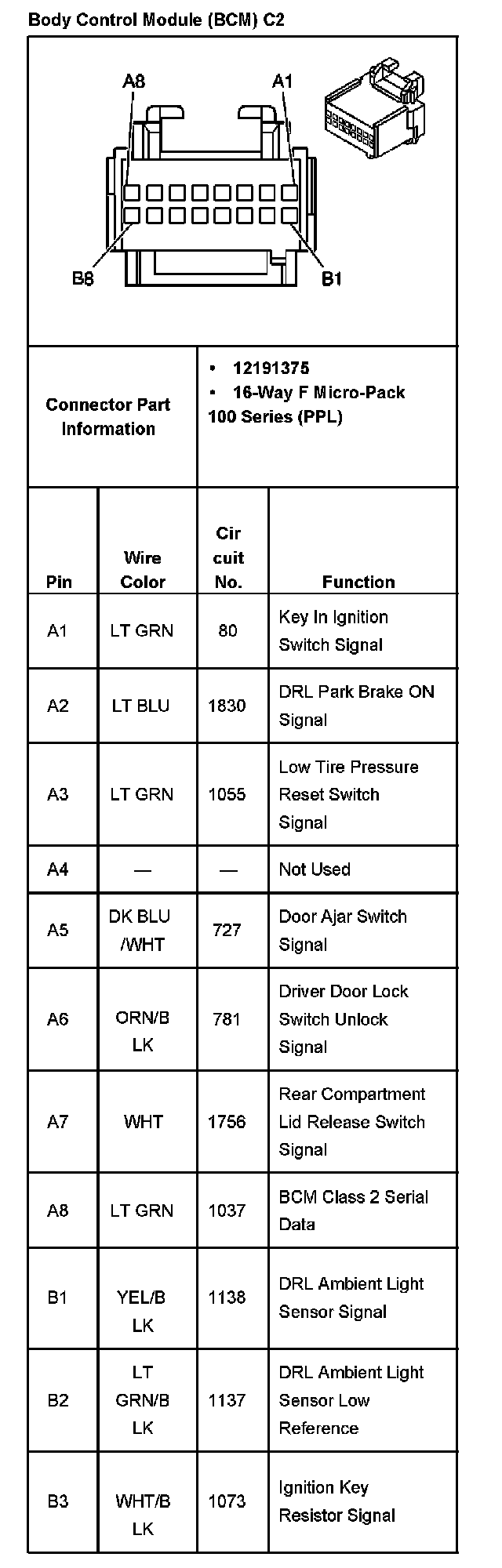

Body Control Module (BCM) C2

Body Control Module (BCM) C2 Part 1:



Body Control Module (BCM) C2 Part 2:
