Home >> Buick >> 2003 >> Regal V6-3.8L VIN K >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Steering Column

Steering Column

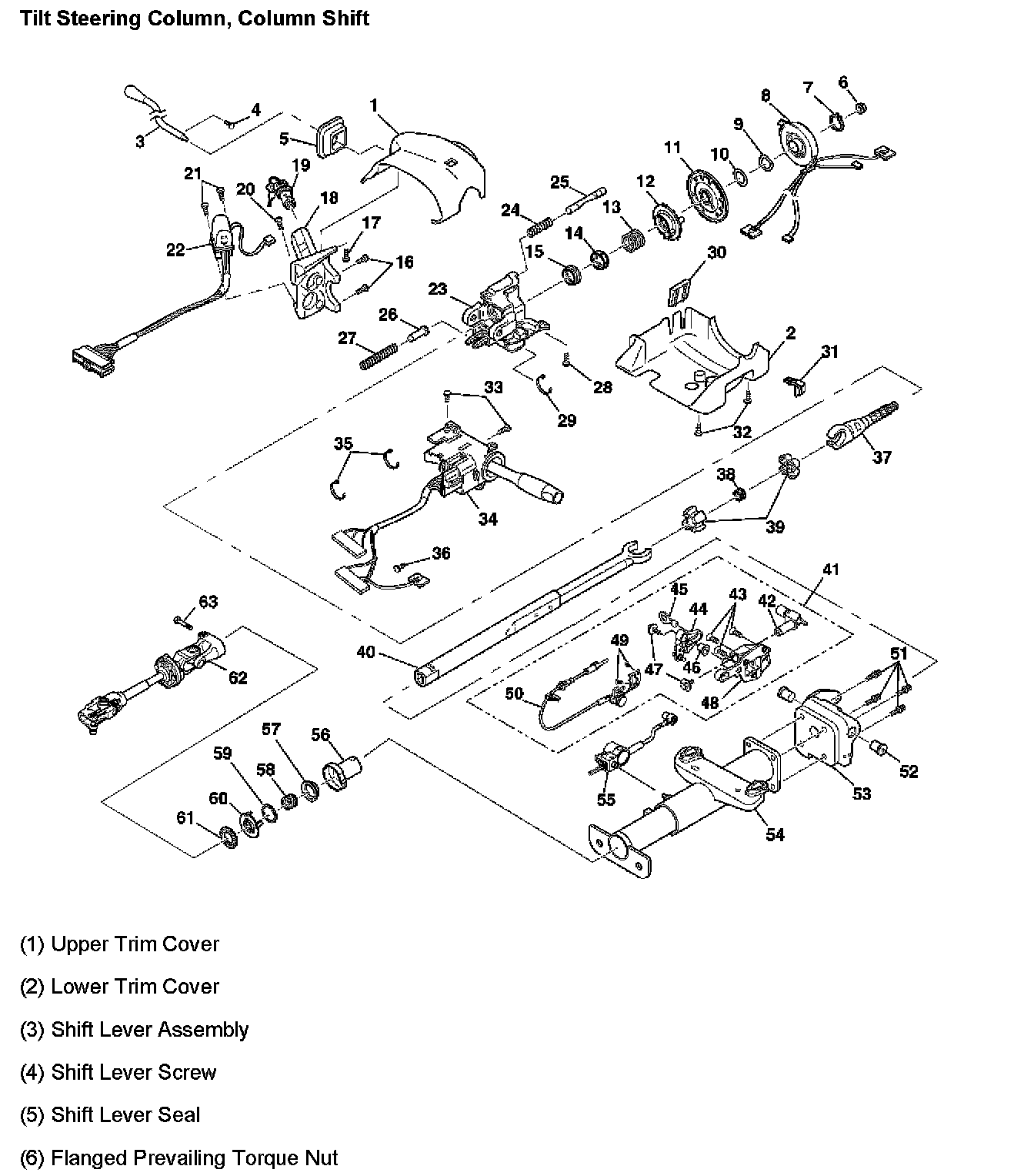

Tilt Steering Column, Column Shift Part 1:

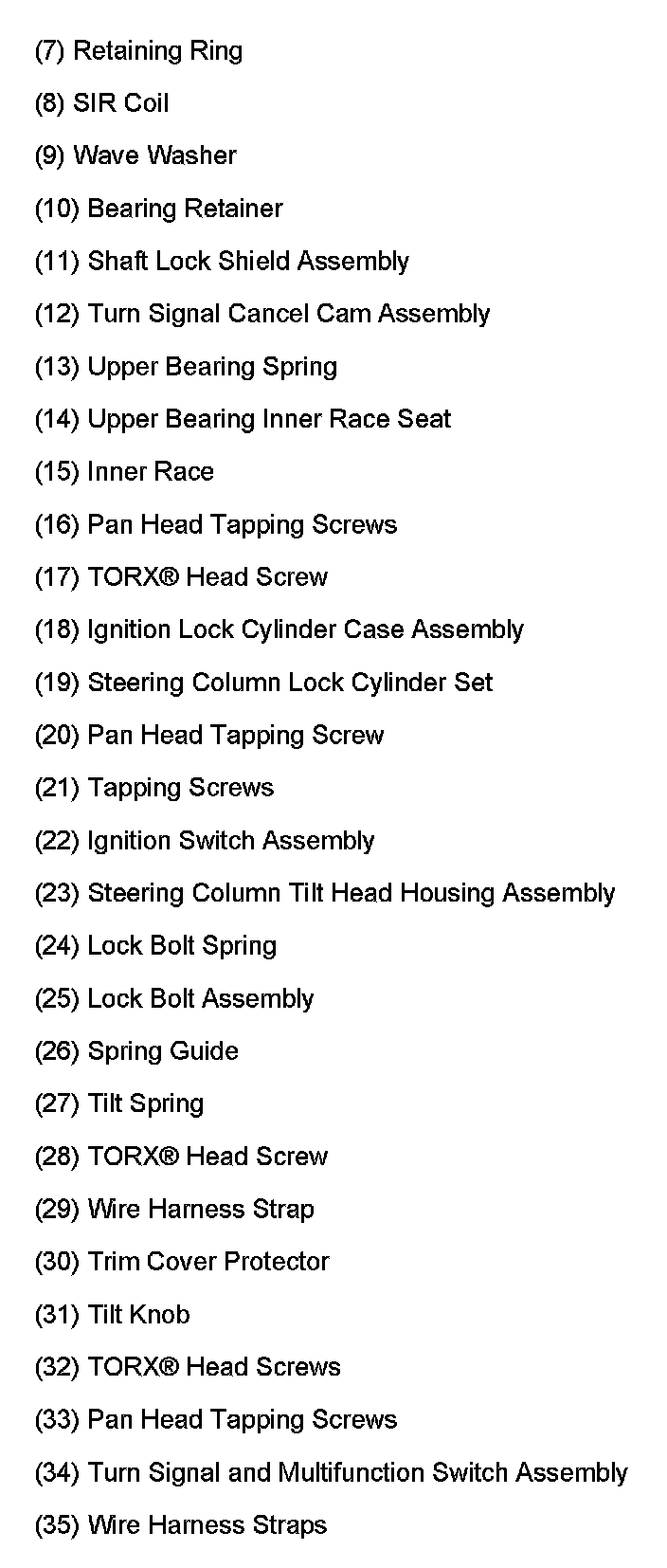

Tilt Steering Column, Column Shift Part 2:

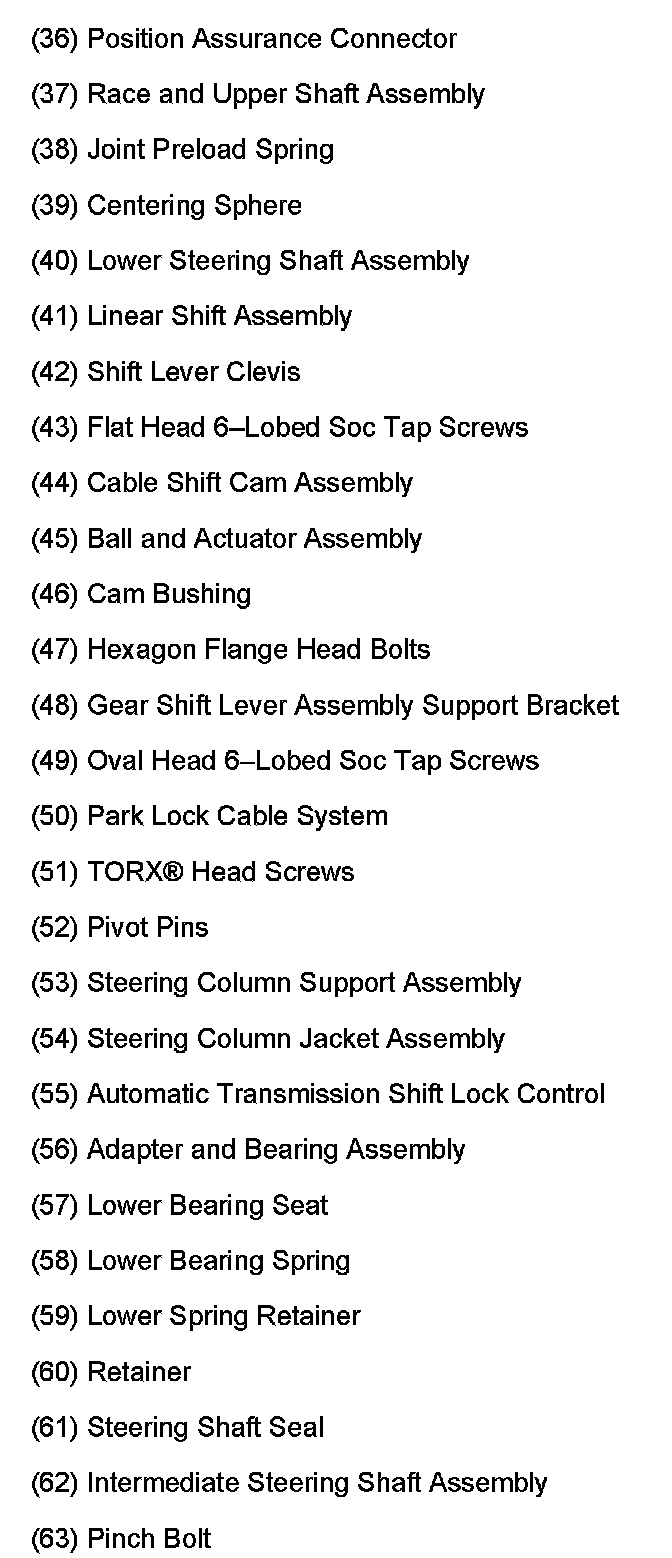

Tilt Steering Column, Column Shift Part 3:

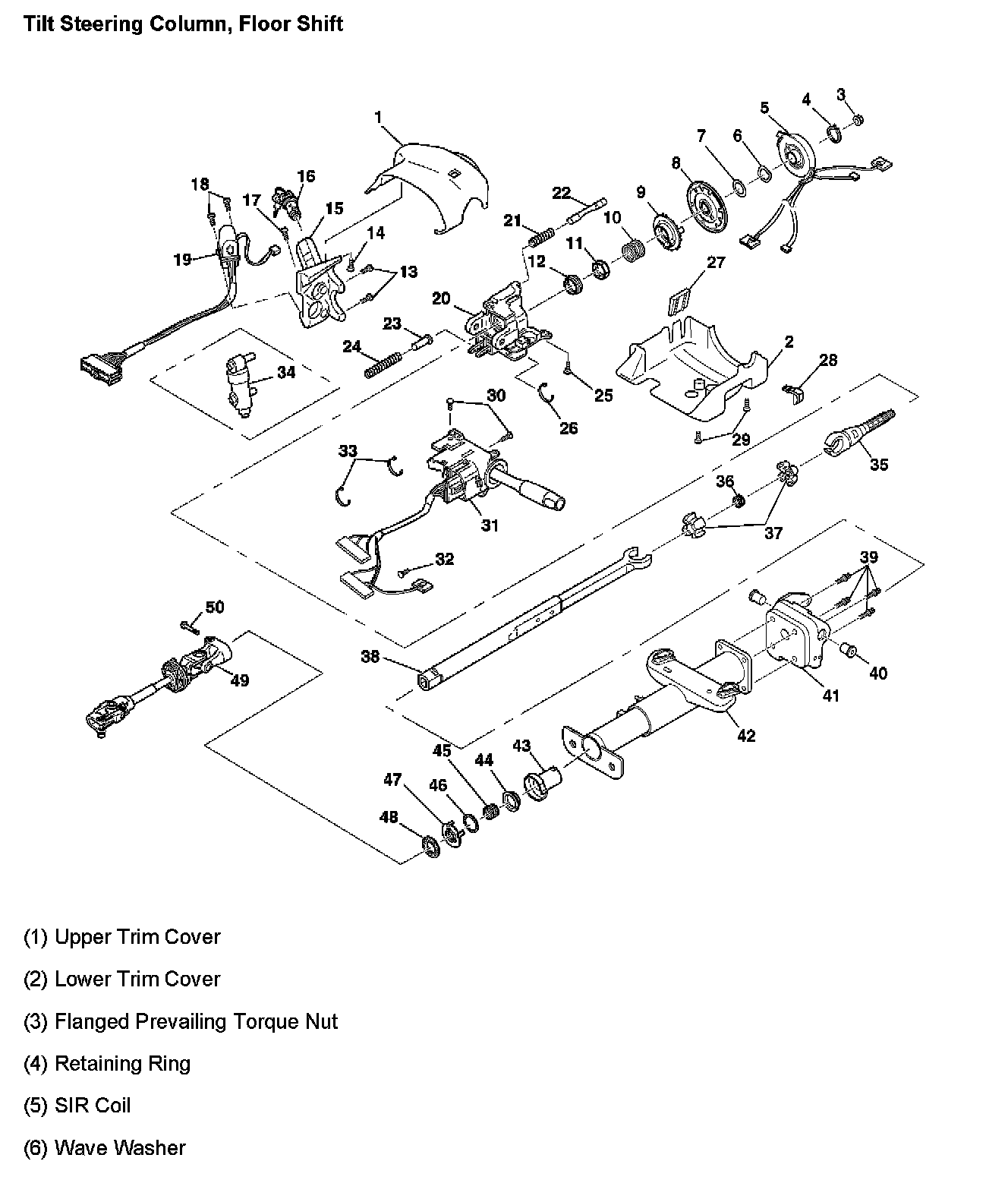

Tilt Steering Column, Floor Shift Part 1:

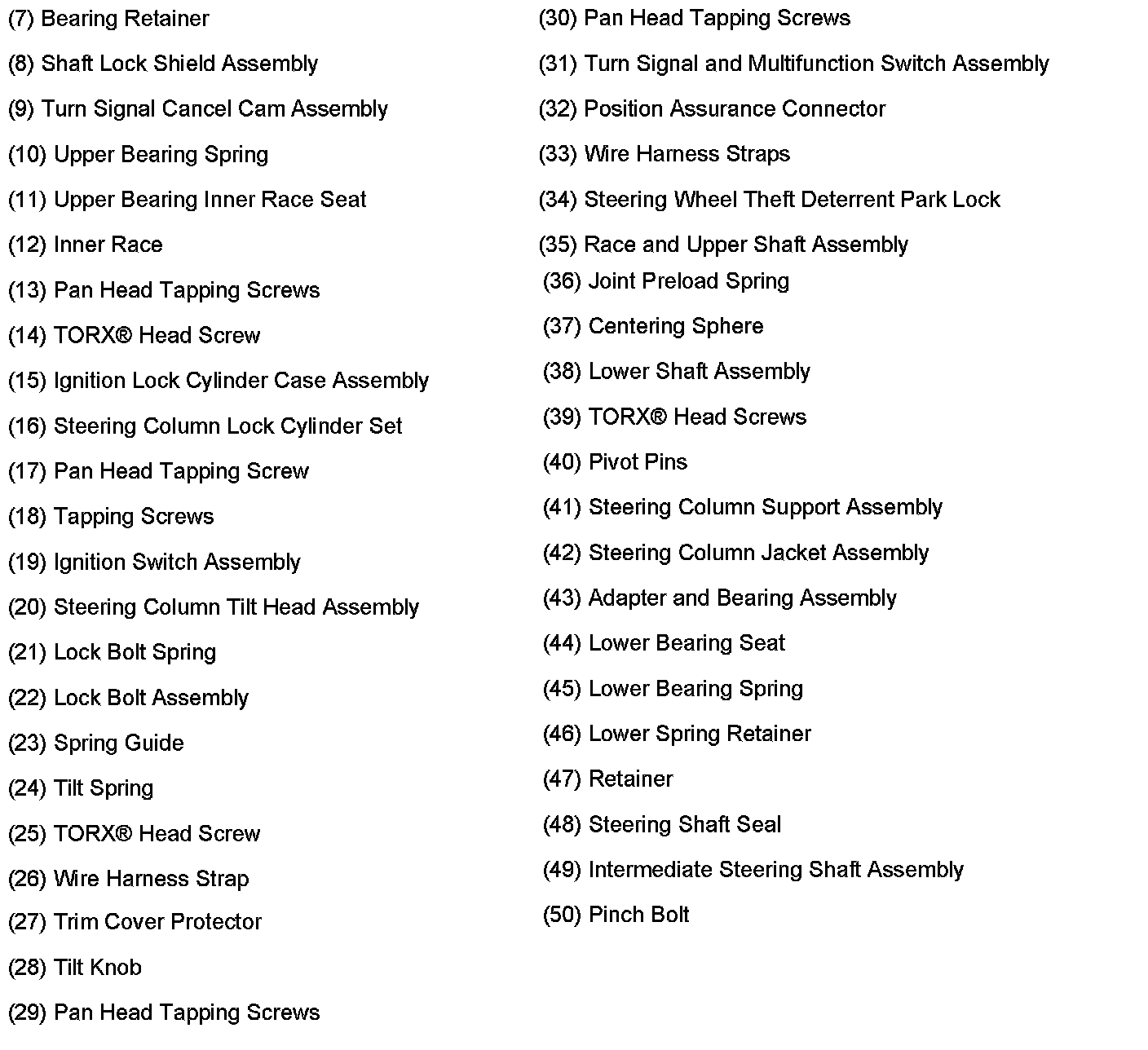

Tilt Steering Column, Floor Shift Part 2:
