Home >> Buick >> 2003 >> Regal V6-3.8L VIN K >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Automatic Transmission/Transaxle >> Internal Components

Internal Components

Part 1 Of 2:




Part 2 Of 2:

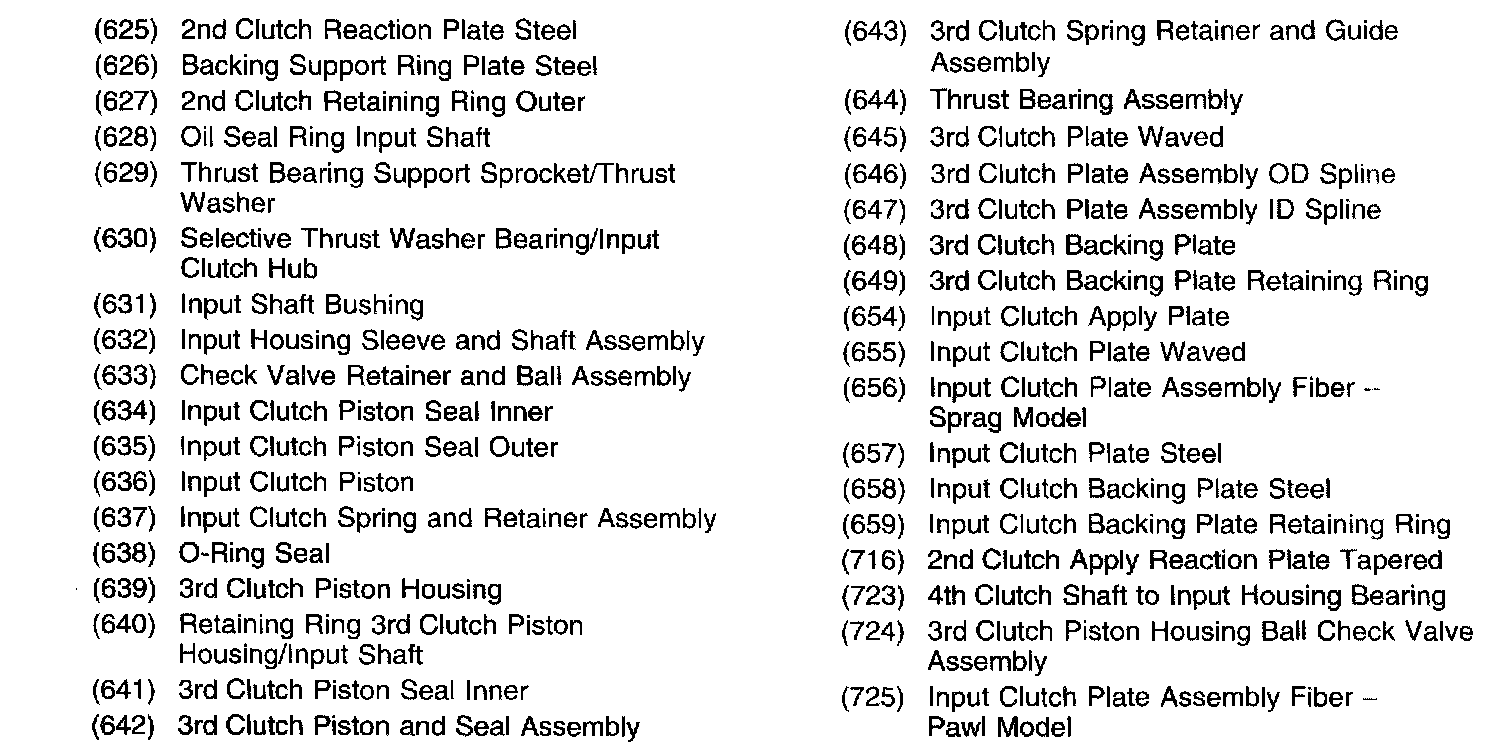

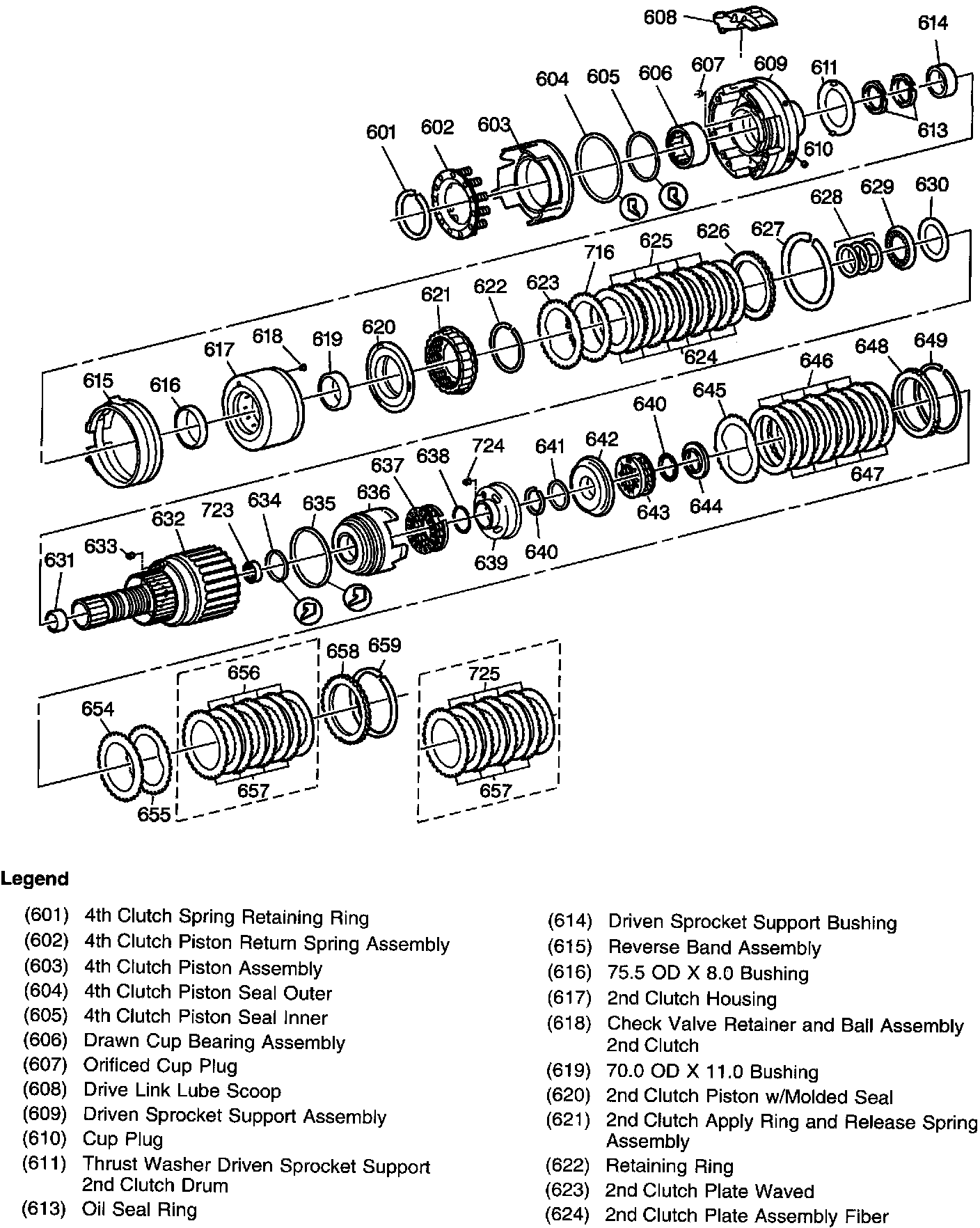

Internal Components (1 of 2)

Part 1 Of 2:




Part 2 Of 2:

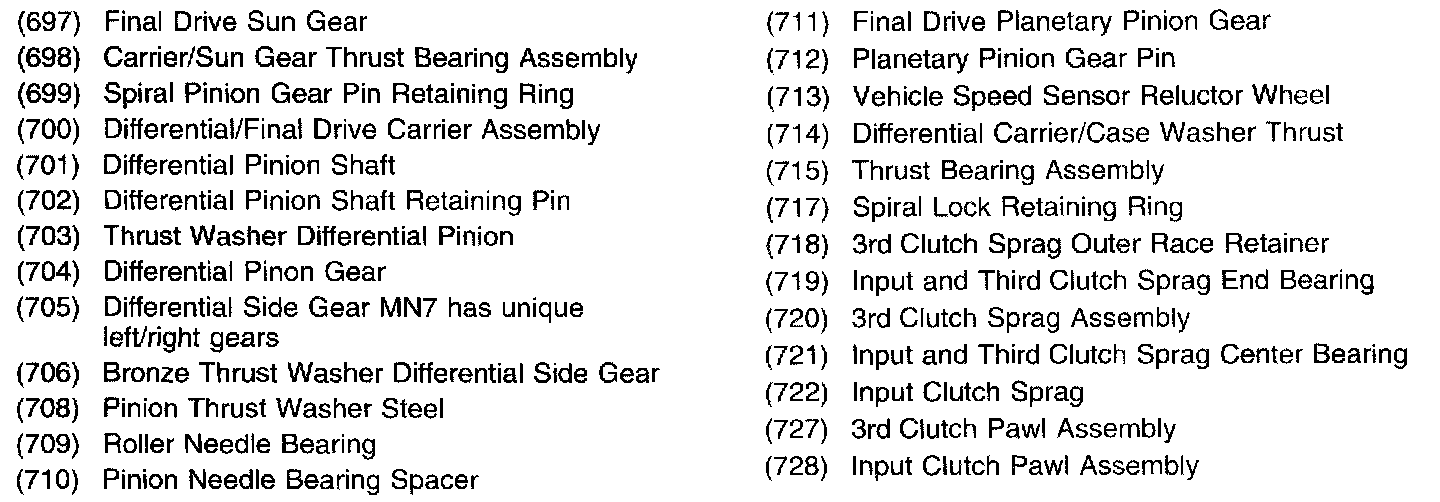

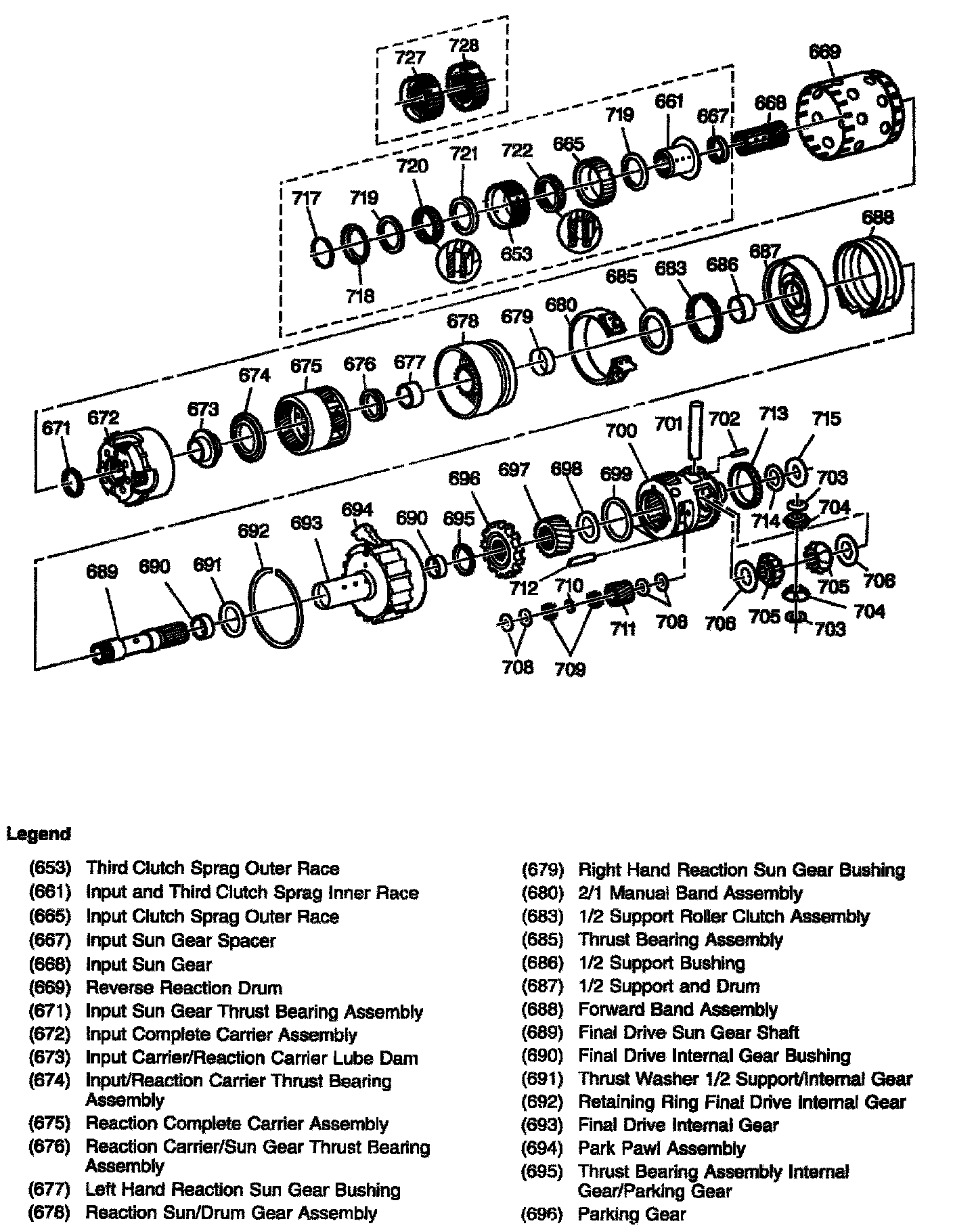

Internal Components (2 of 2)
