Regal V6-3.8L SC VIN 1
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
>>
Oil Pump Assembly
Oil Pump Assembly
Part 1 Of 2:
Part 2 Of 2:

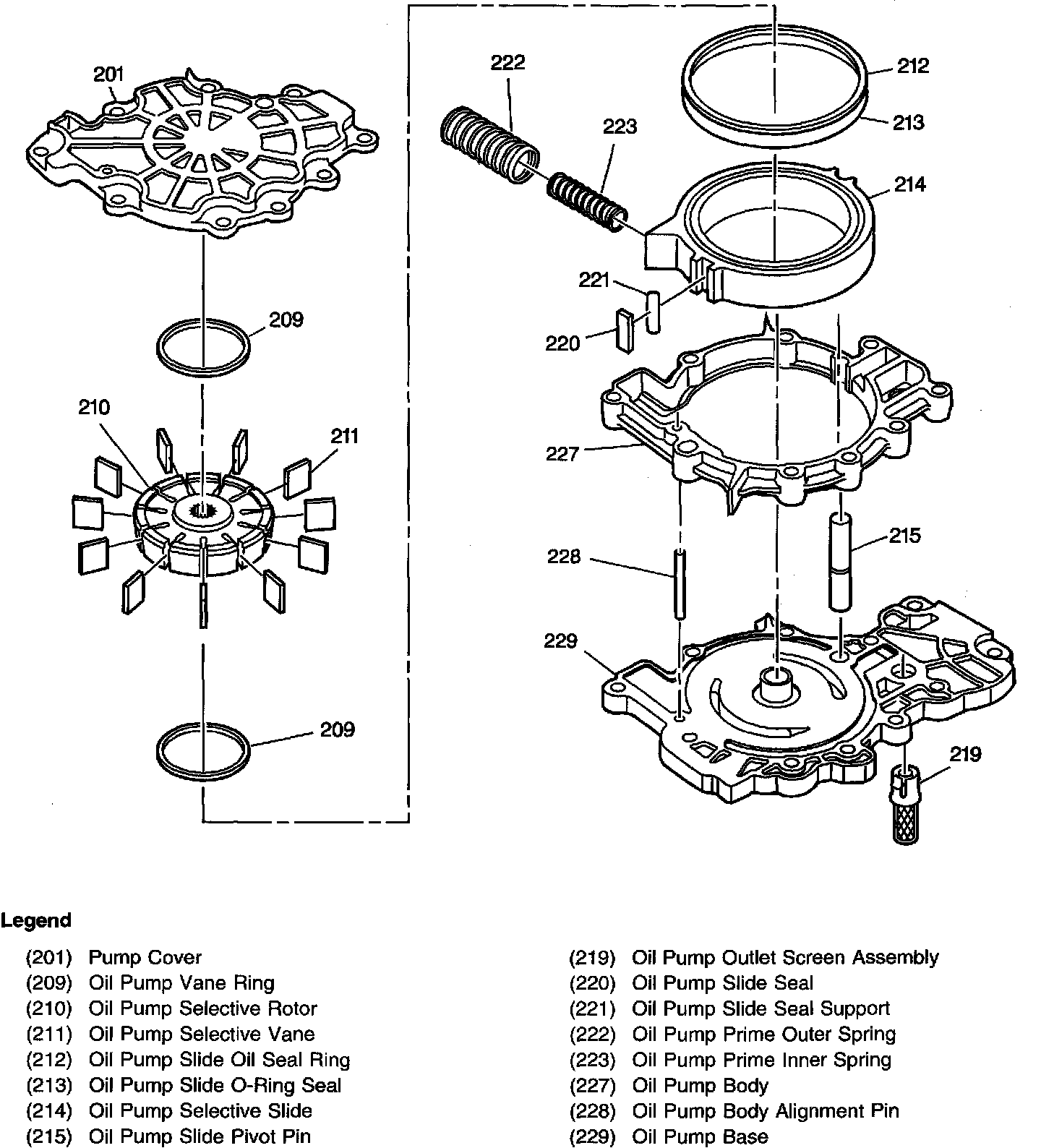

Oil Pump Assembly - 2 Piece Pump

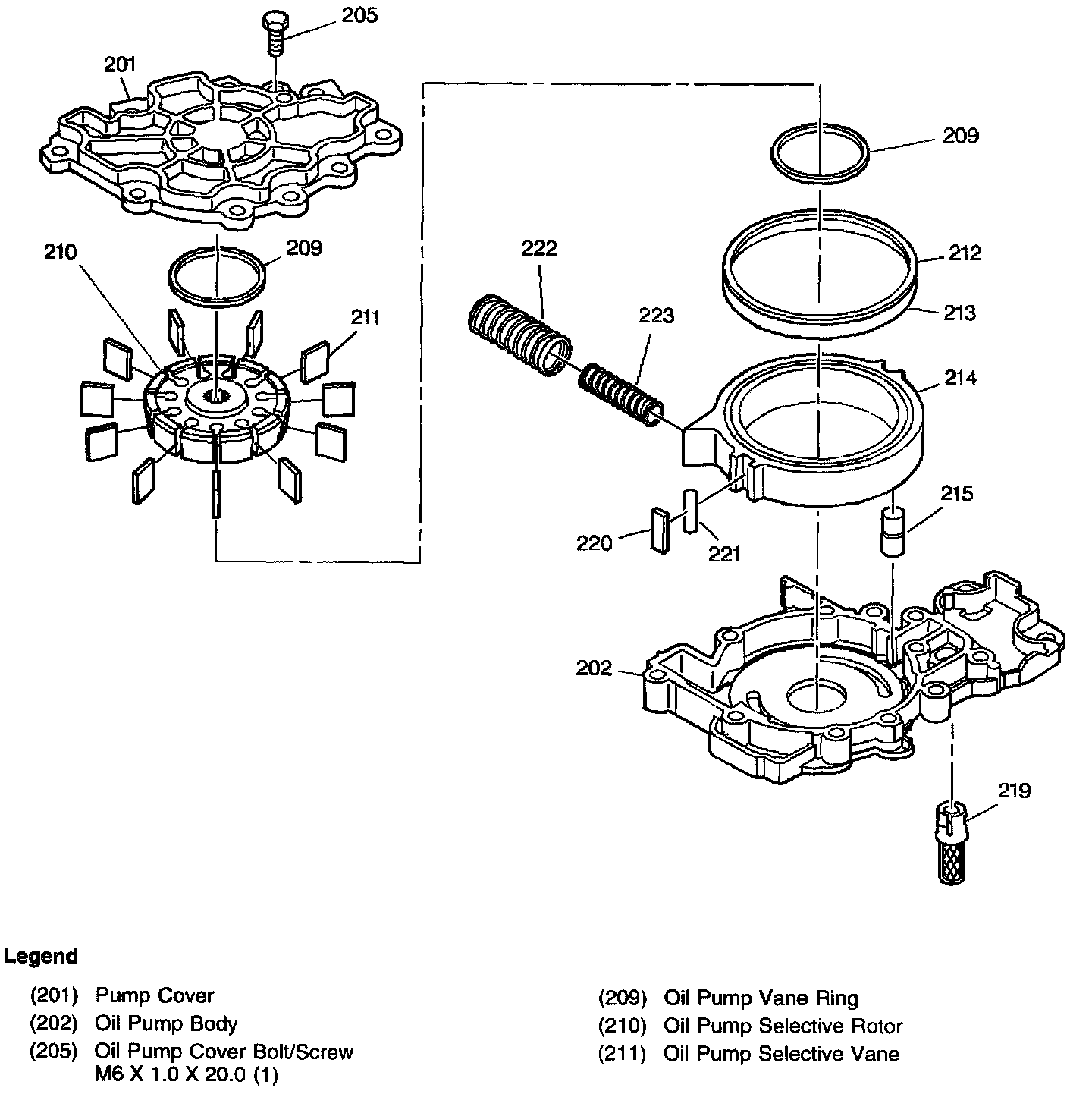

Oil Pump Assembly - 3 Piece Pump
