Home >> Buick >> 2003 >> LeSabre V6-3.8L VIN K >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> Intake Manifold and Components

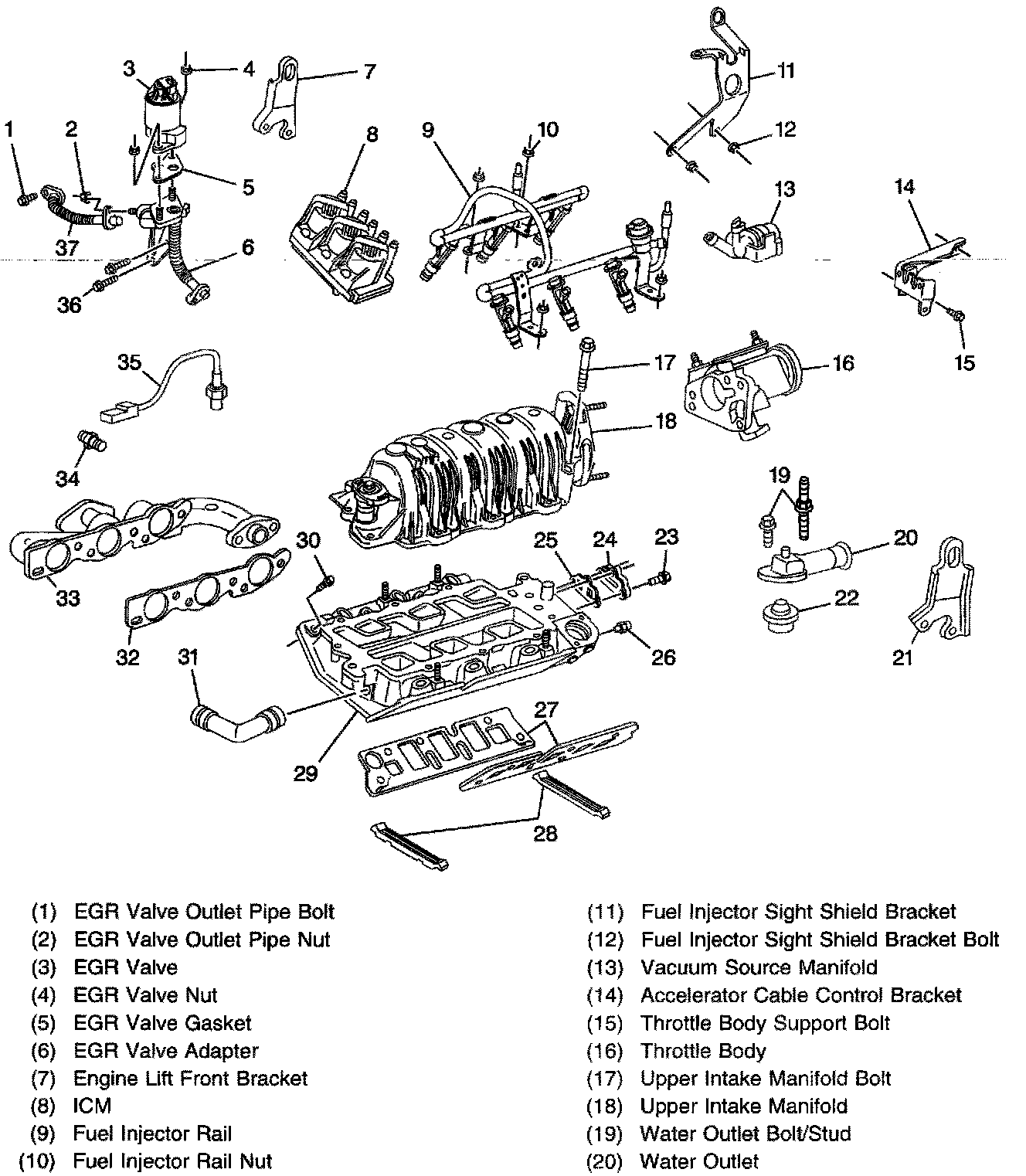

Intake Manifold and Components

Intake Manifold and Components





Part 1 of 2





Part 2 of 2
