Rear Integration Module

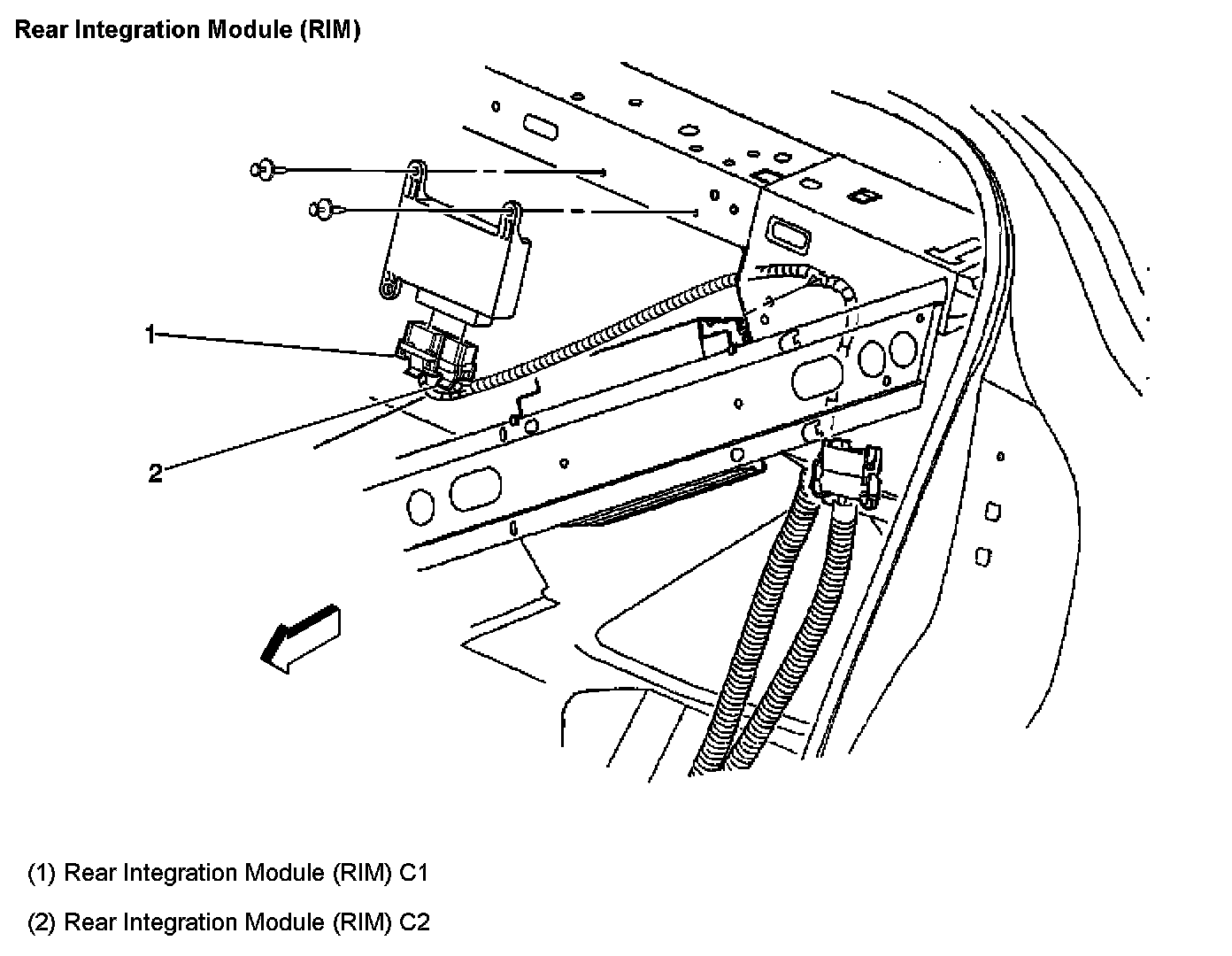

Rear Integration Module (RIM)

Rear Integration Module (RIM):






Note: Behind the rear seat back cushion (upper, left).
