IPM

Locations View:

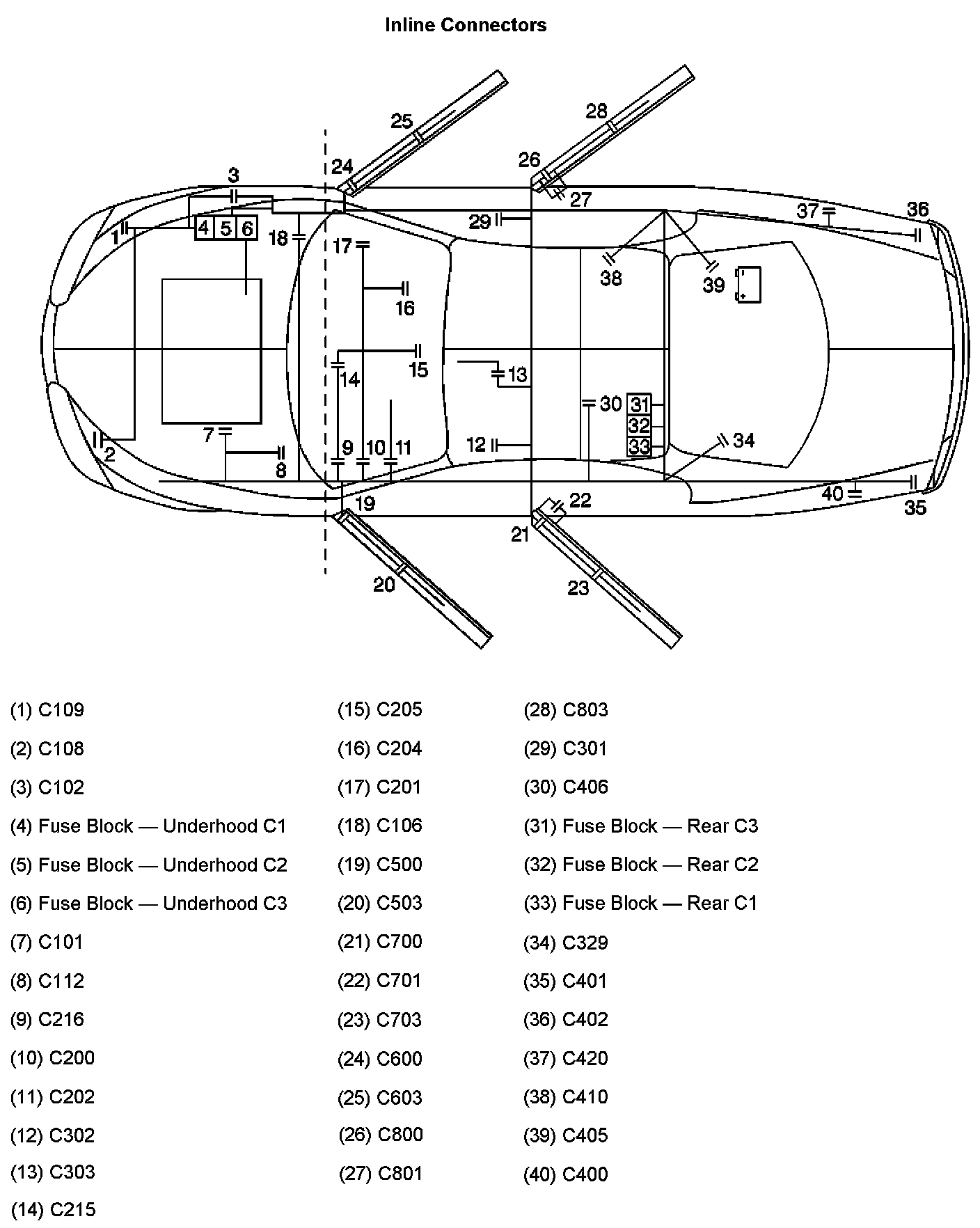

Inline Connectors:

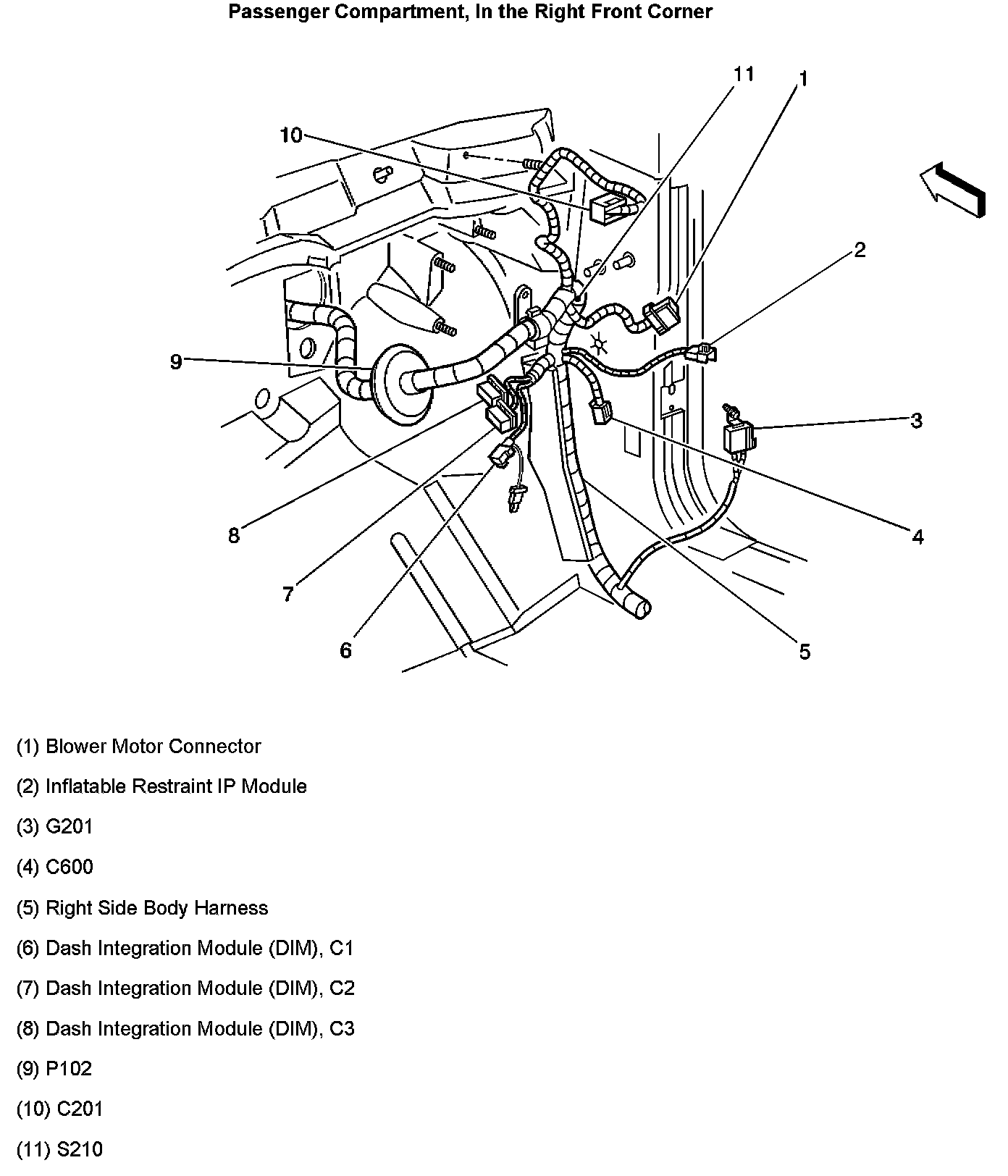

Passenger Compartment, In The Right Front Corner:

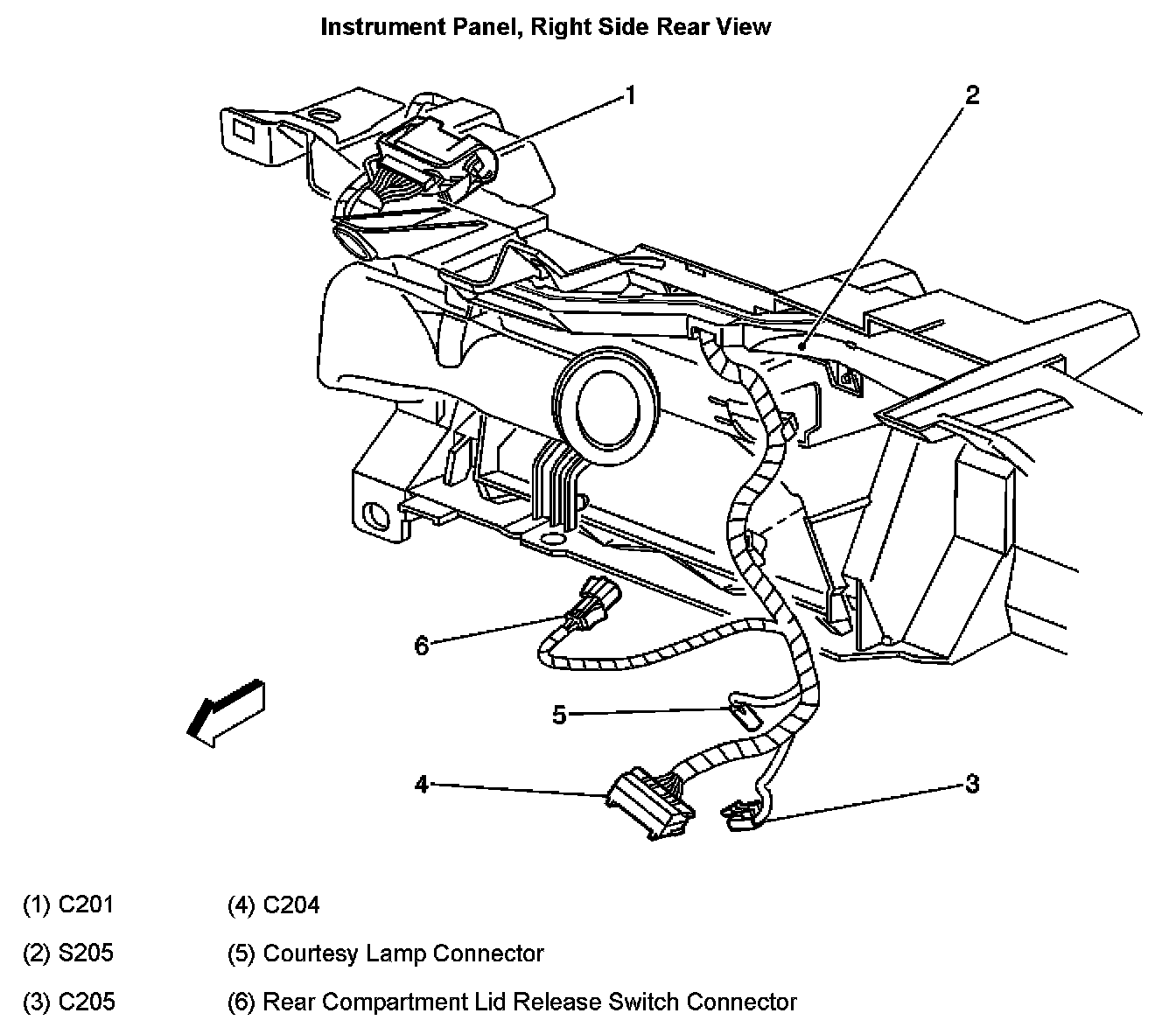

Instrument Panel, Right Side Rear View:

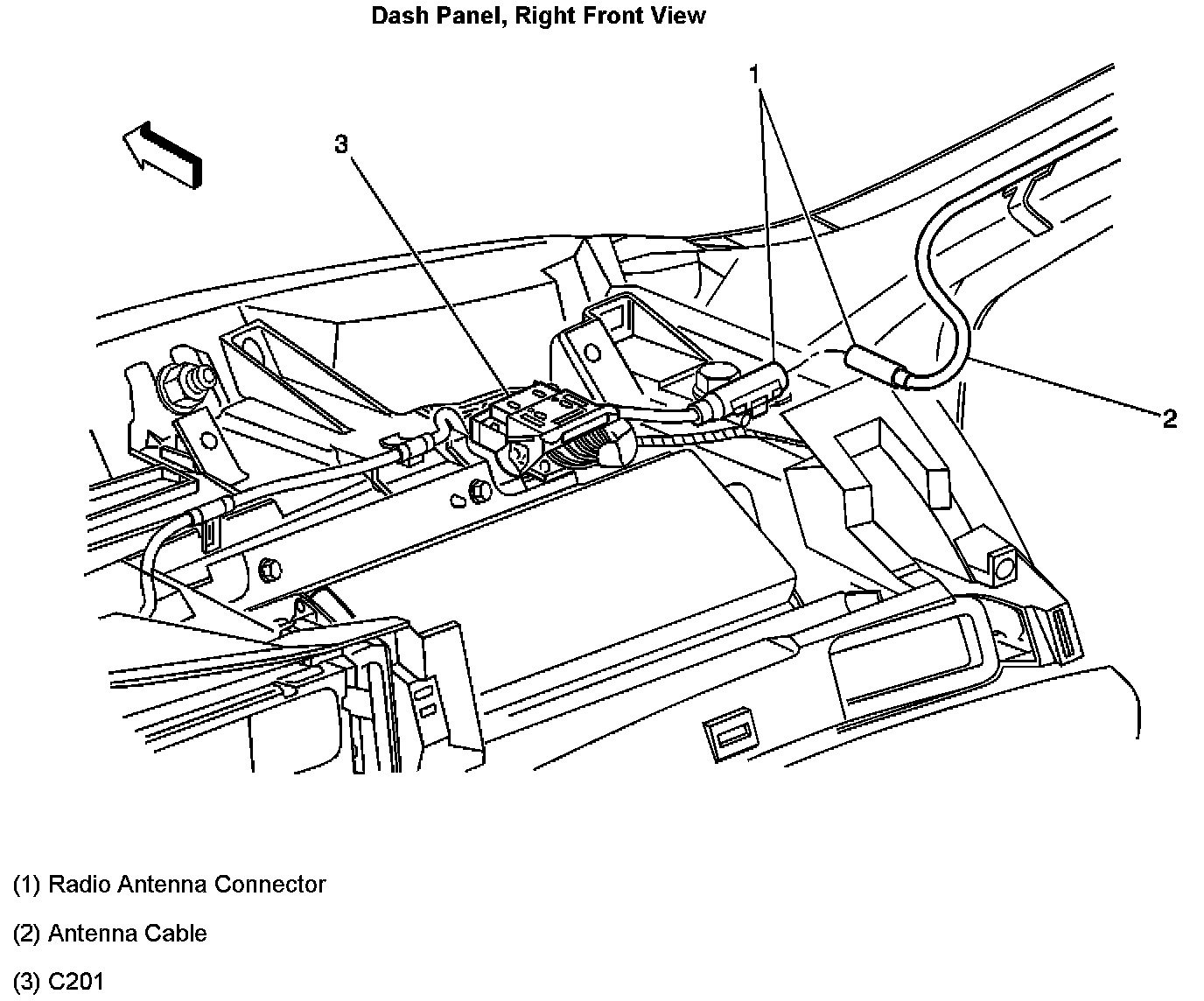

Dash Panel, Right Front View:
