LeSabre Custom, 4T65E/MN3
>>
Repair and Diagnosis
>>
Body & Frame
>>
Door Locks
>>
Keyless Entry System
>>
Component Locator
>>
Keyless Entry Connector End Views
Keyless Entry Connector End Views

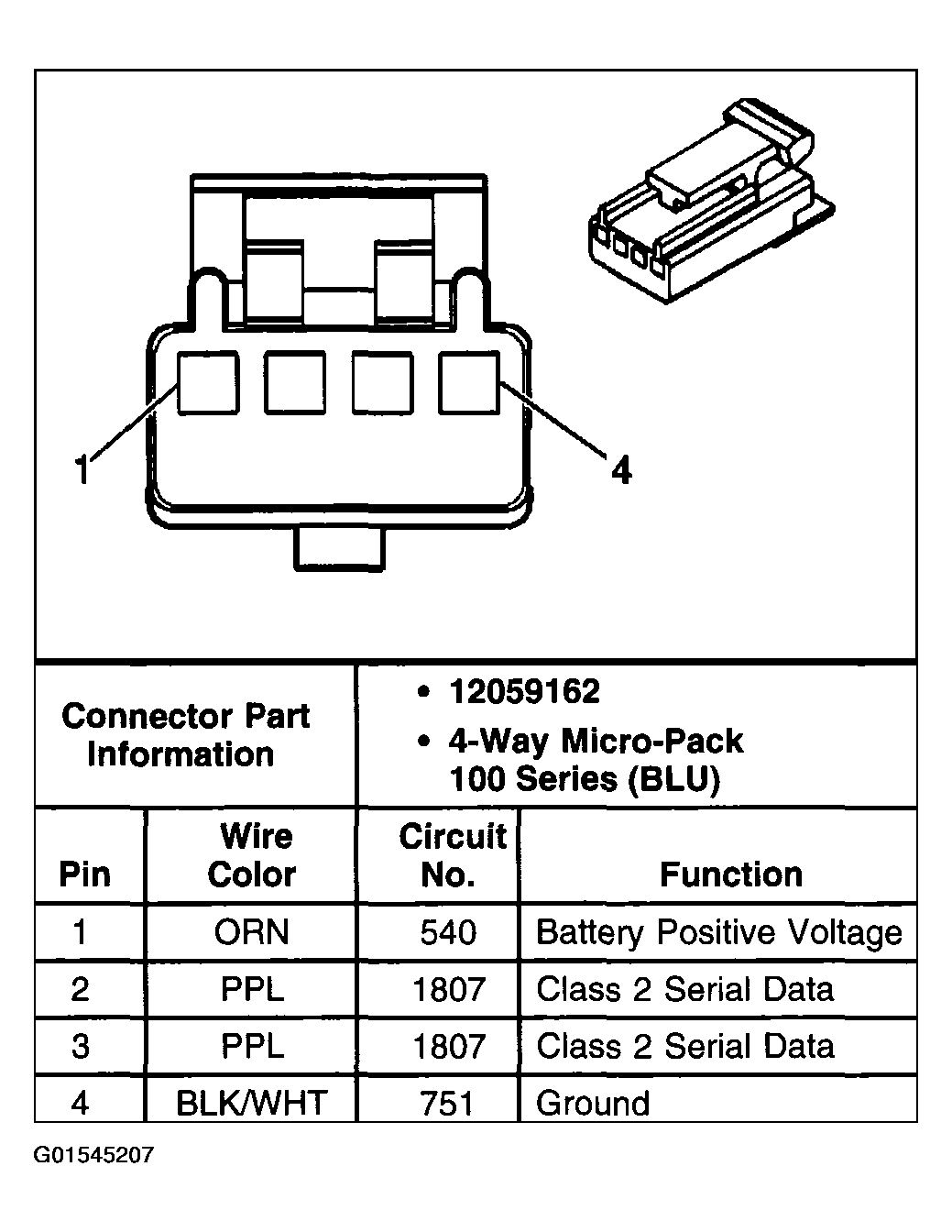

Fig 1: Keyless Entry Connector End Views - Remote Control Door Lock Receiver (RCDLR)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
