Retained Accessory Power (RAP) Component Views

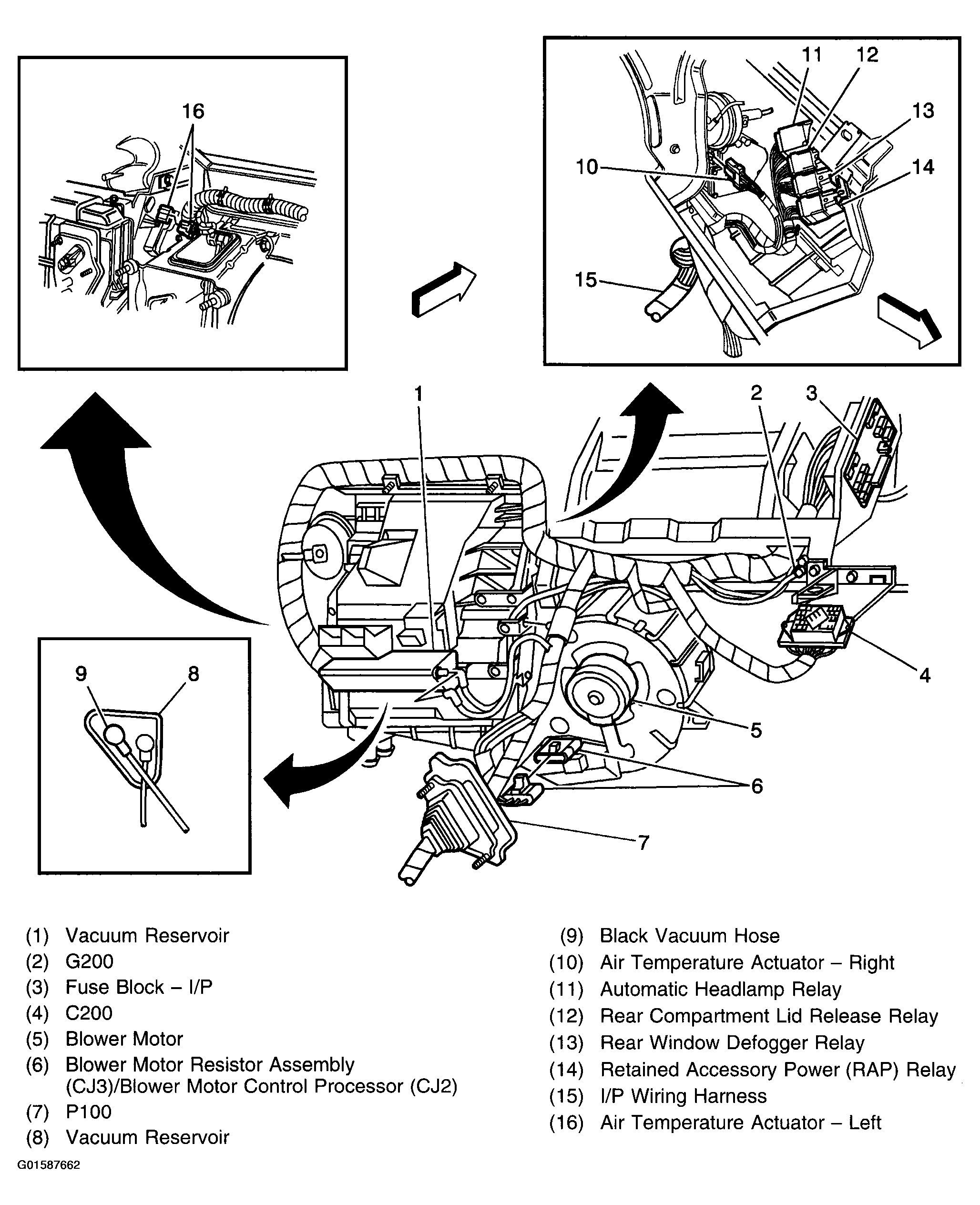

Fig 1: Identifying Behind the Right Side of the I/P Component View
G01587662Courtesy of GENERAL MOTORS CORP.
