Steering Column

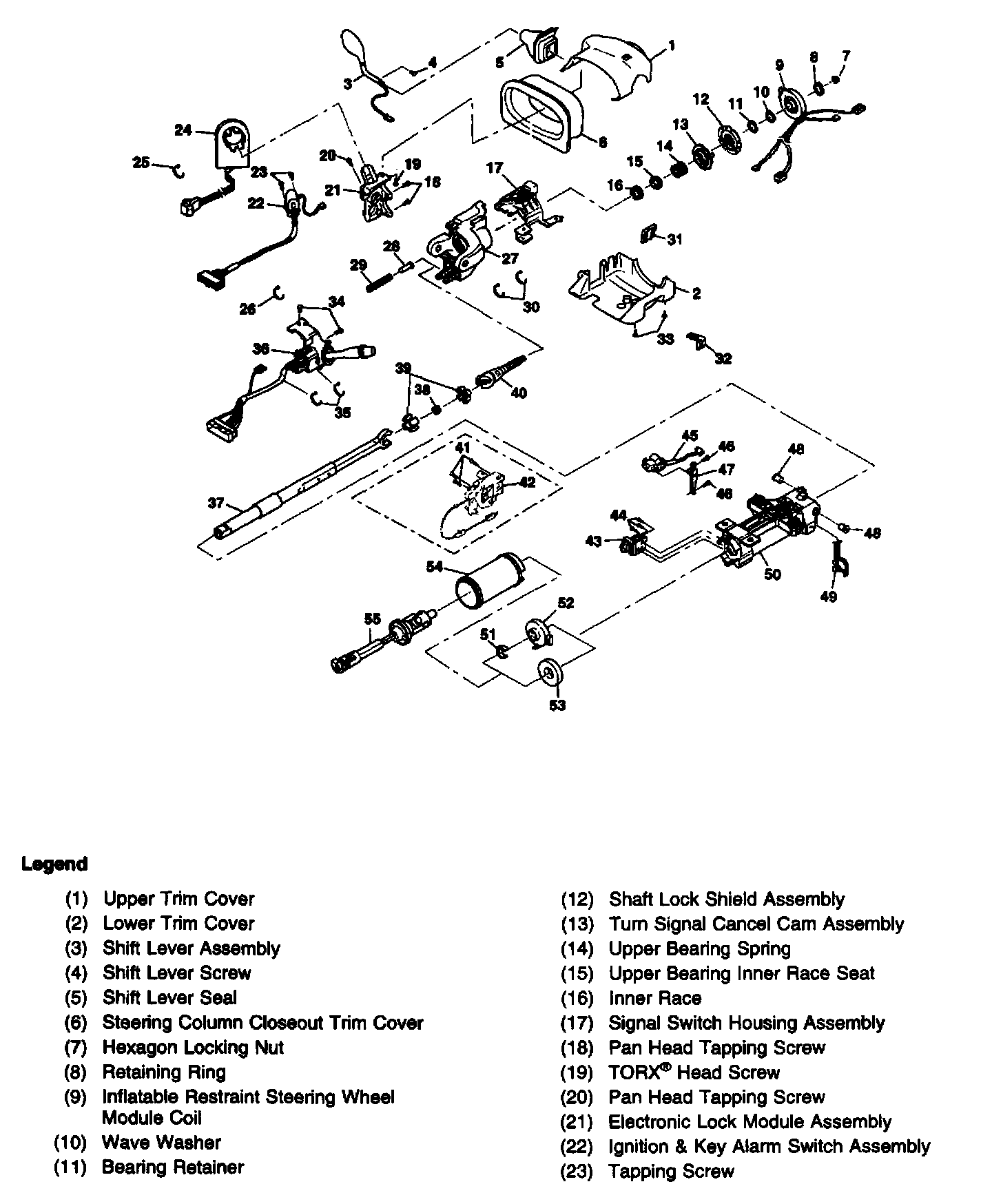

Steering Column Disassembled View





Part 1 of 2

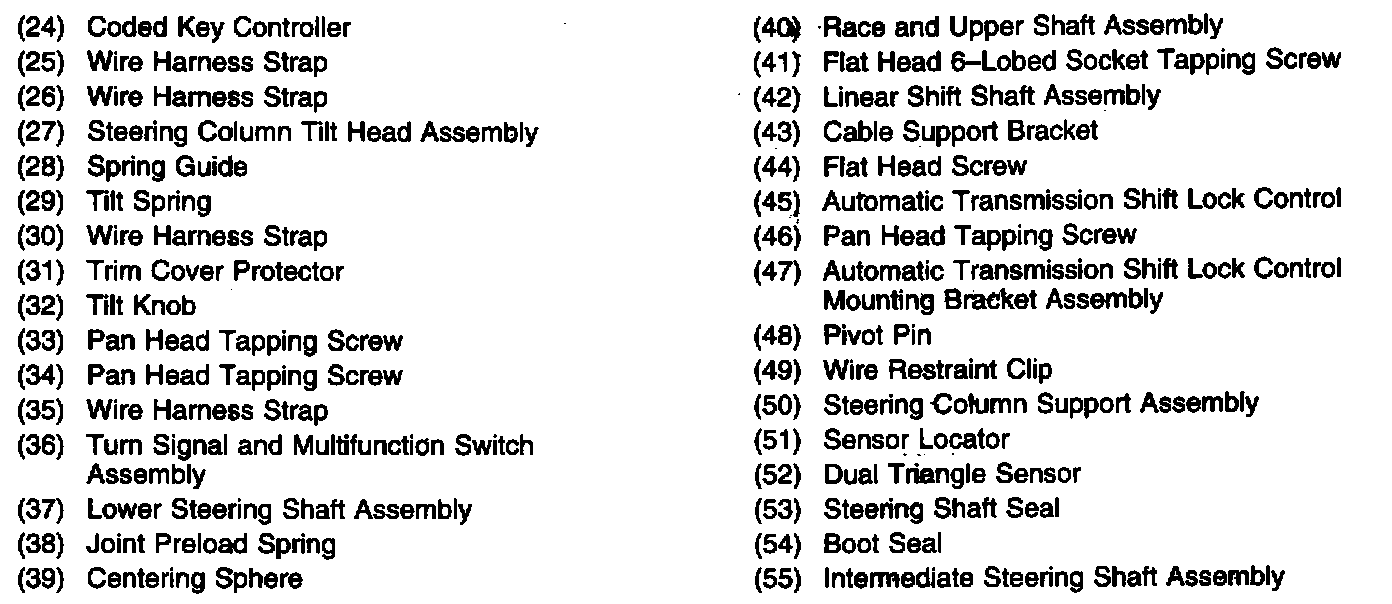

Part 2 of 2

Tilt the Shift Steering Column
