Vehicle Communication Interface Module (VCIM) F1

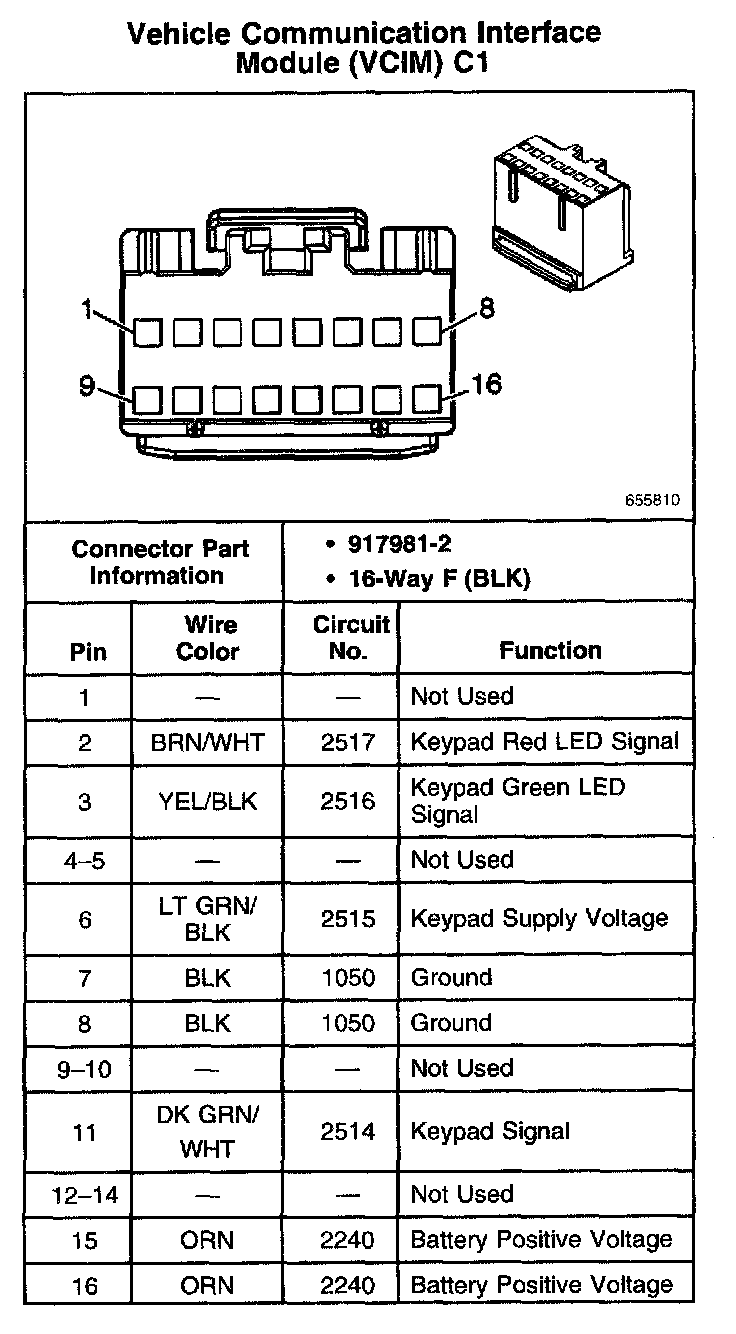

Vehicle Communication Interface Module (VCIM) C1:

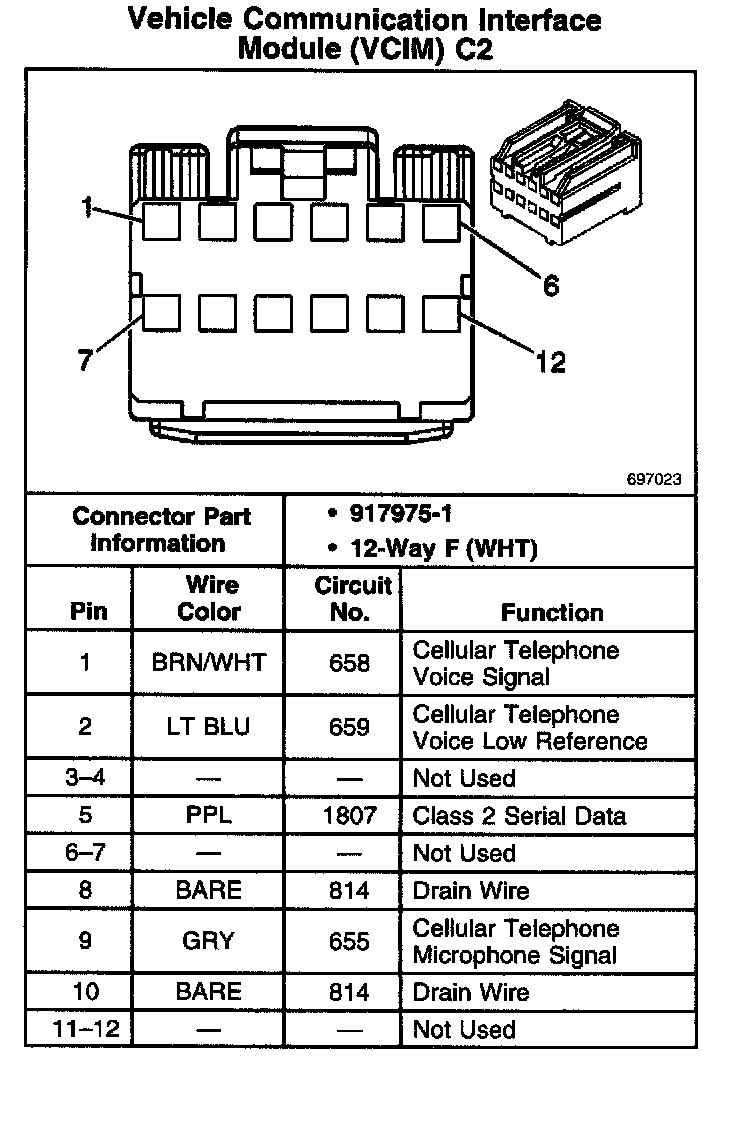

Vehicle Communication Interface Module (VCIM) C2:
