PCM References - Controlled/Monitored Subsystem

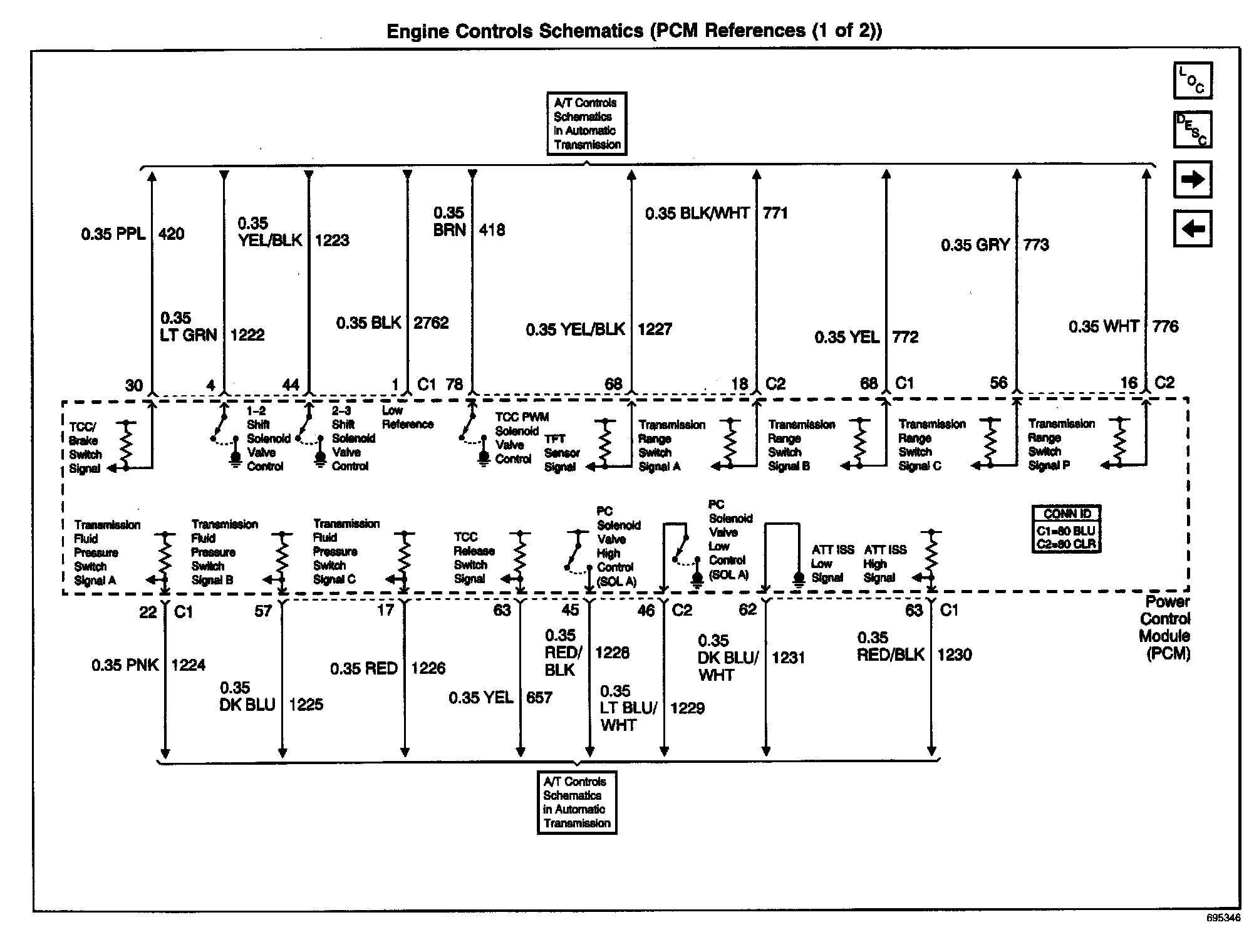

Engine Controls Schematics: PCM References (Part 1 Of 2):

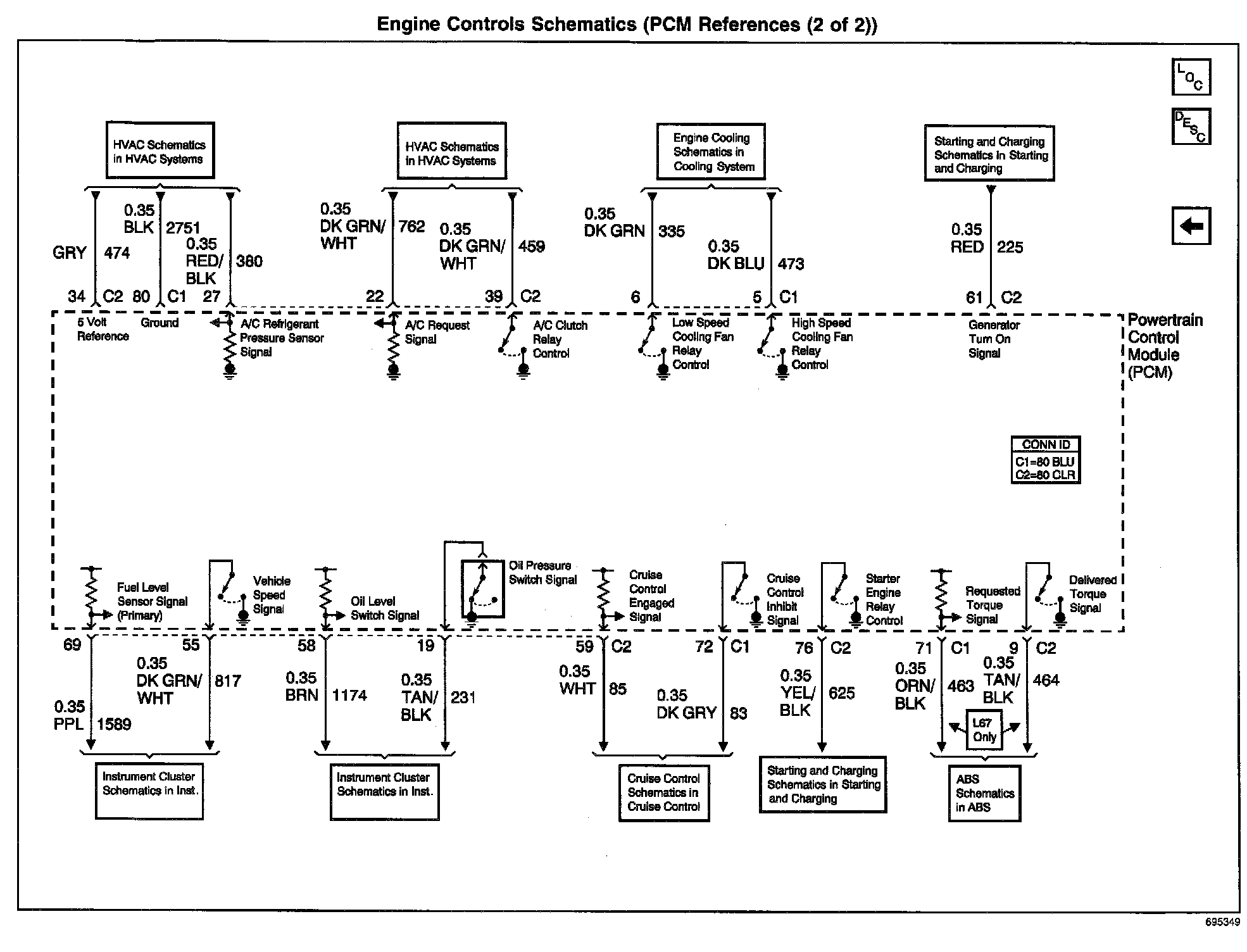

Engine Controls Schematics: PCM References (Part 2 Of 2):
