BCM References
BCM References

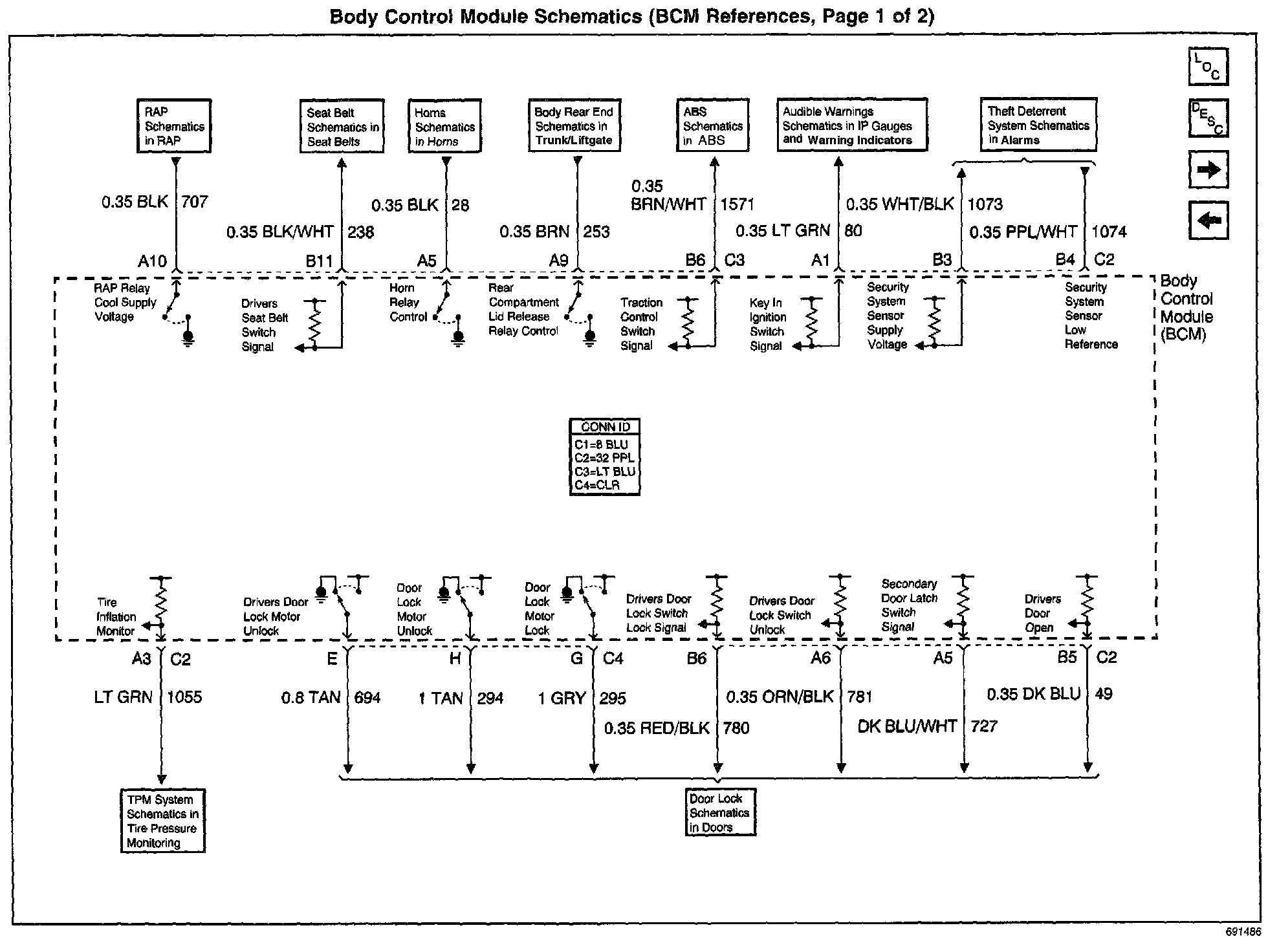

Body Control Module Schematics: BCM References (Part 1 Of 2):

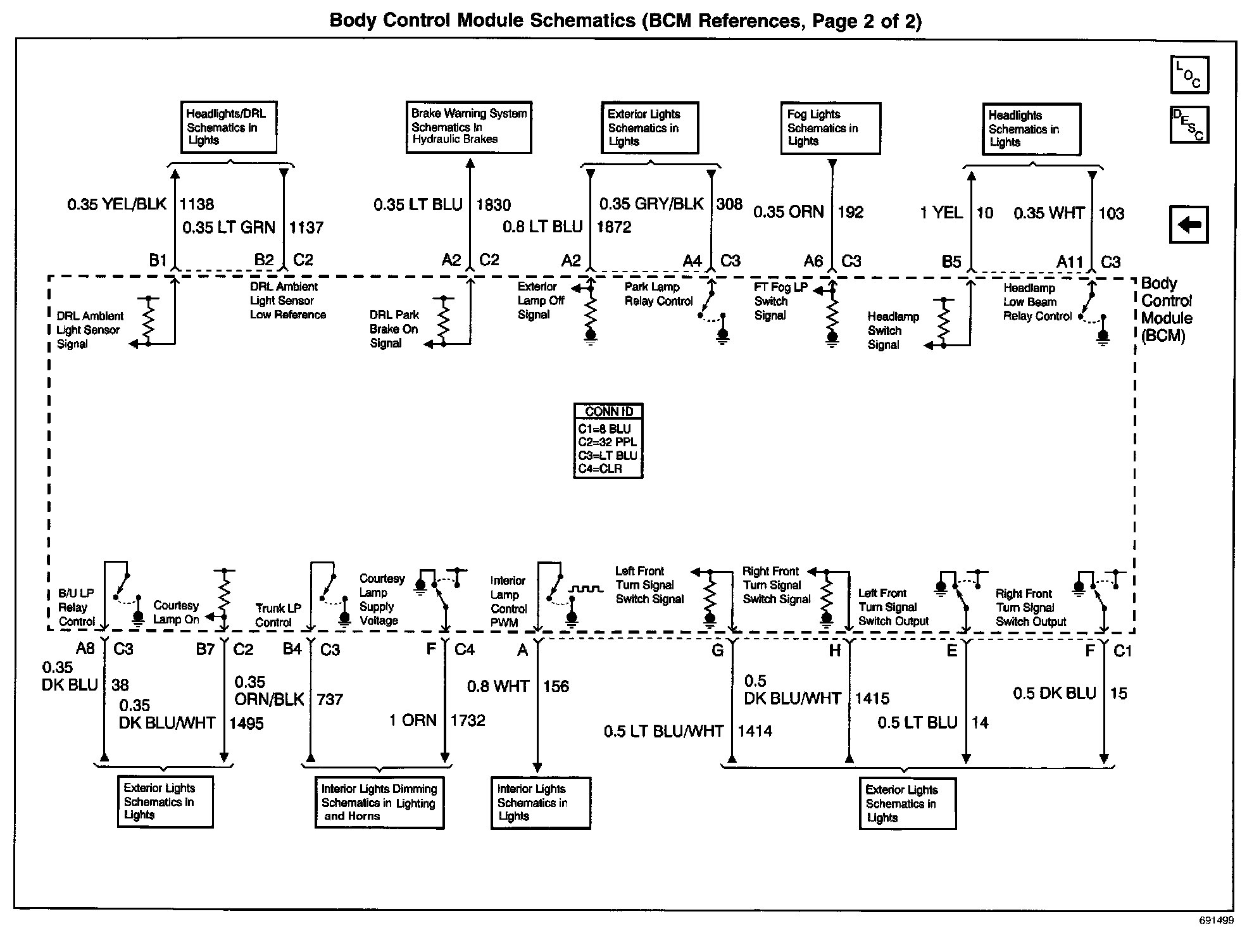

Body Control Module Schematics: BCM References (Part 2 Of 2):
