Home >> Buick >> 2001 >> Regal V6-3.8L SC VIN 1 >> Repair and Diagnosis >> Heating and Air Conditioning >> Control Assembly >> Diagrams >> HVAC Systems - Manual >> HVAC Control Module, C2

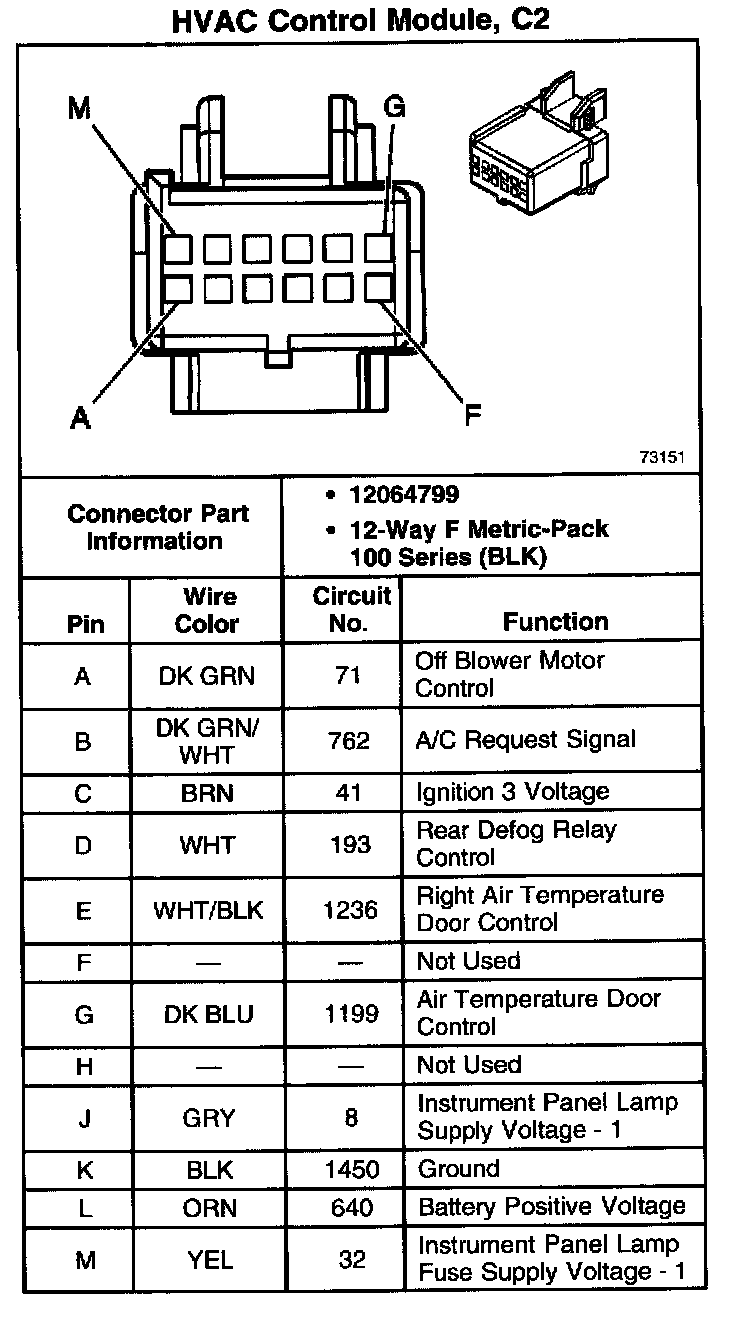

HVAC Control Module, C2

HVAC Control Module, C2:
