Compressor Clutch Relay: Service and Repair

COMPRESSOR RELAY REPLACEMENT

REMOVAL PROCEDURE

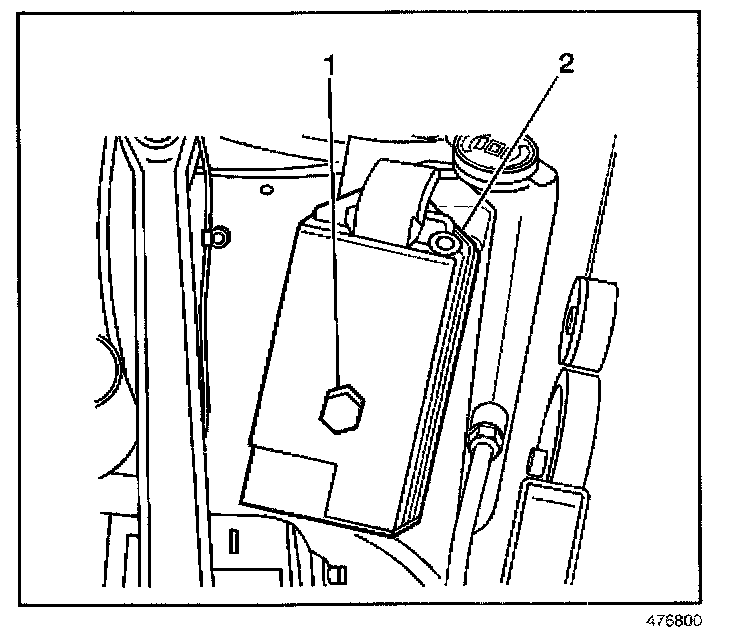

1. Remove the underhood relay center knob.
2. Remove the underhood relay center cover.

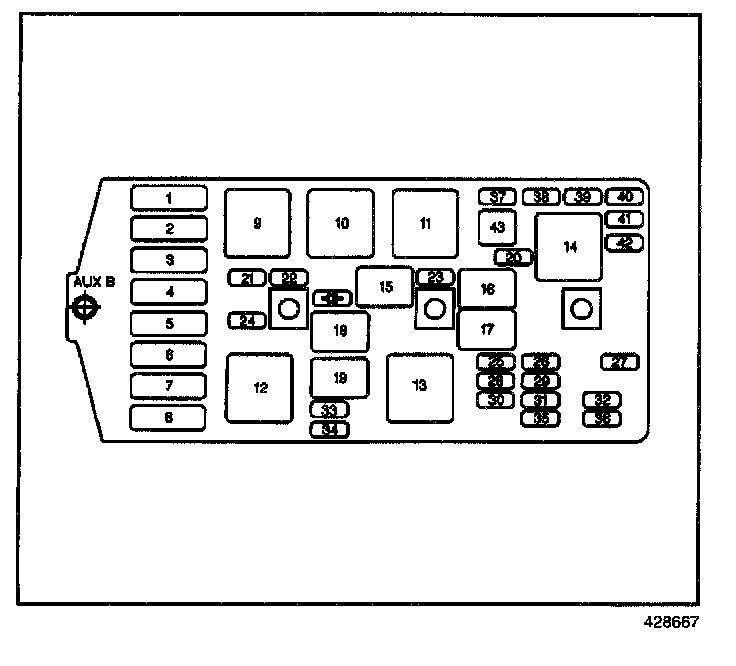

3. Remove the A/C compressor control relay from the electrical center.

INSTALLATION PROCEDURE

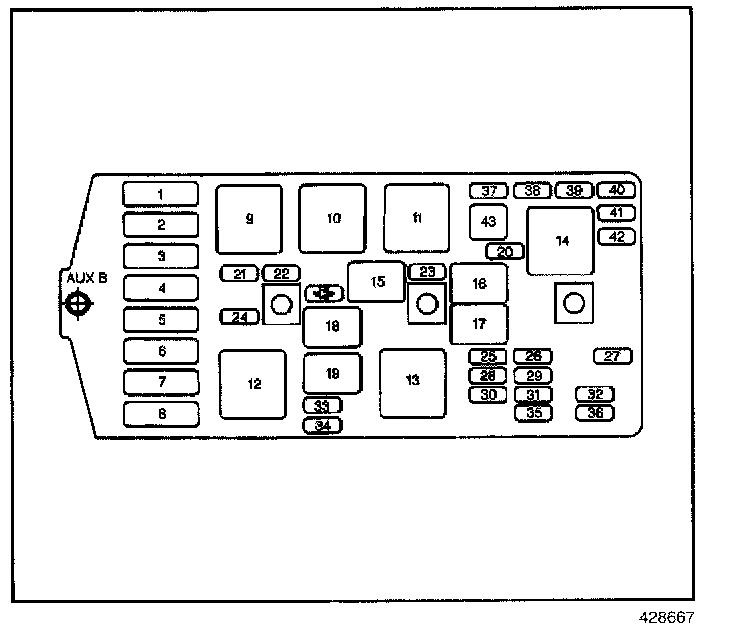

1. Install the A/C compressor control relay into the electrical center.

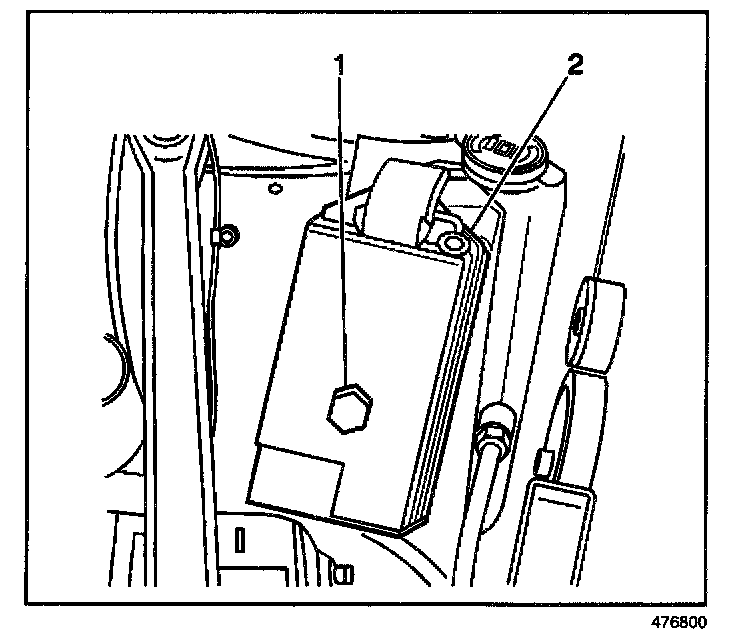

2. Install the underhood relay cover.
3. Install the underhood relay center knob.
