IPM Inputs/Outputs

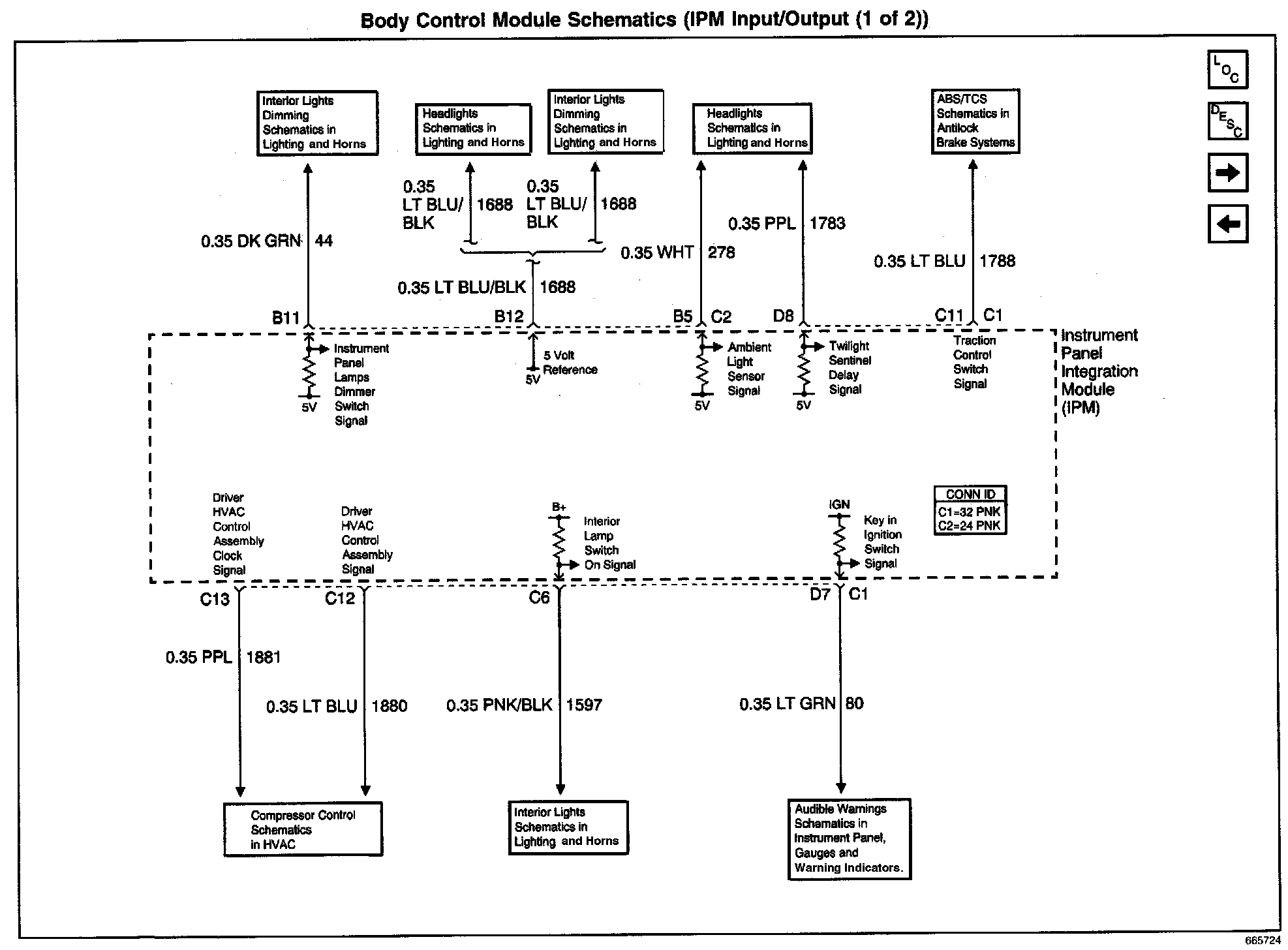

Body Control Module Schematics: IPM Input/Output (Part 1 Of 2):

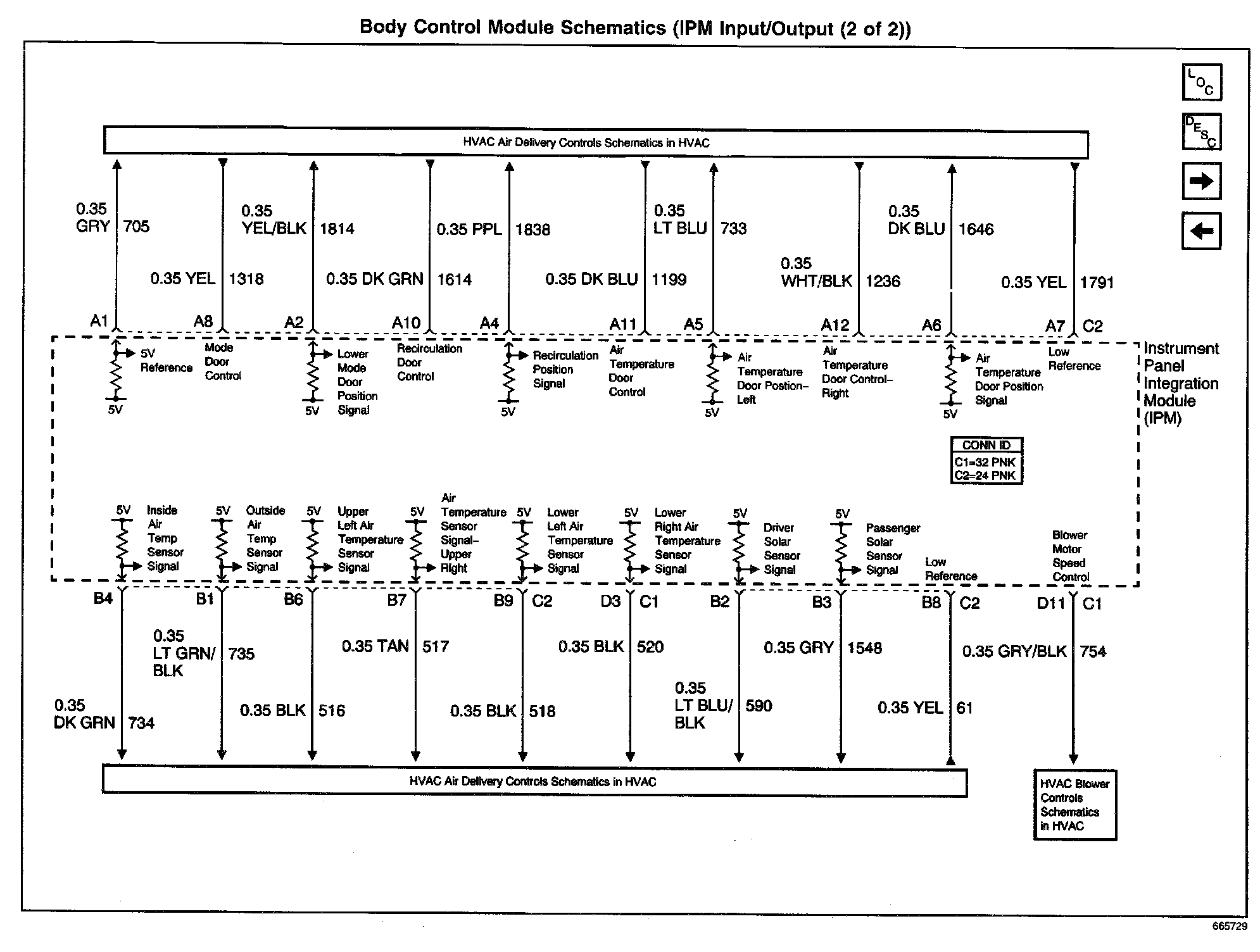

Body Control Module Schematics: IPM Input/Output (Part 2 Of 2):
