Home >> Buick >> 2001 >> LeSabre V6-3.8L VIN K >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> Computers and Control Systems >> Body Control Module >> IGN Switch, PCM Feeds

IGN Switch, PCM Feeds

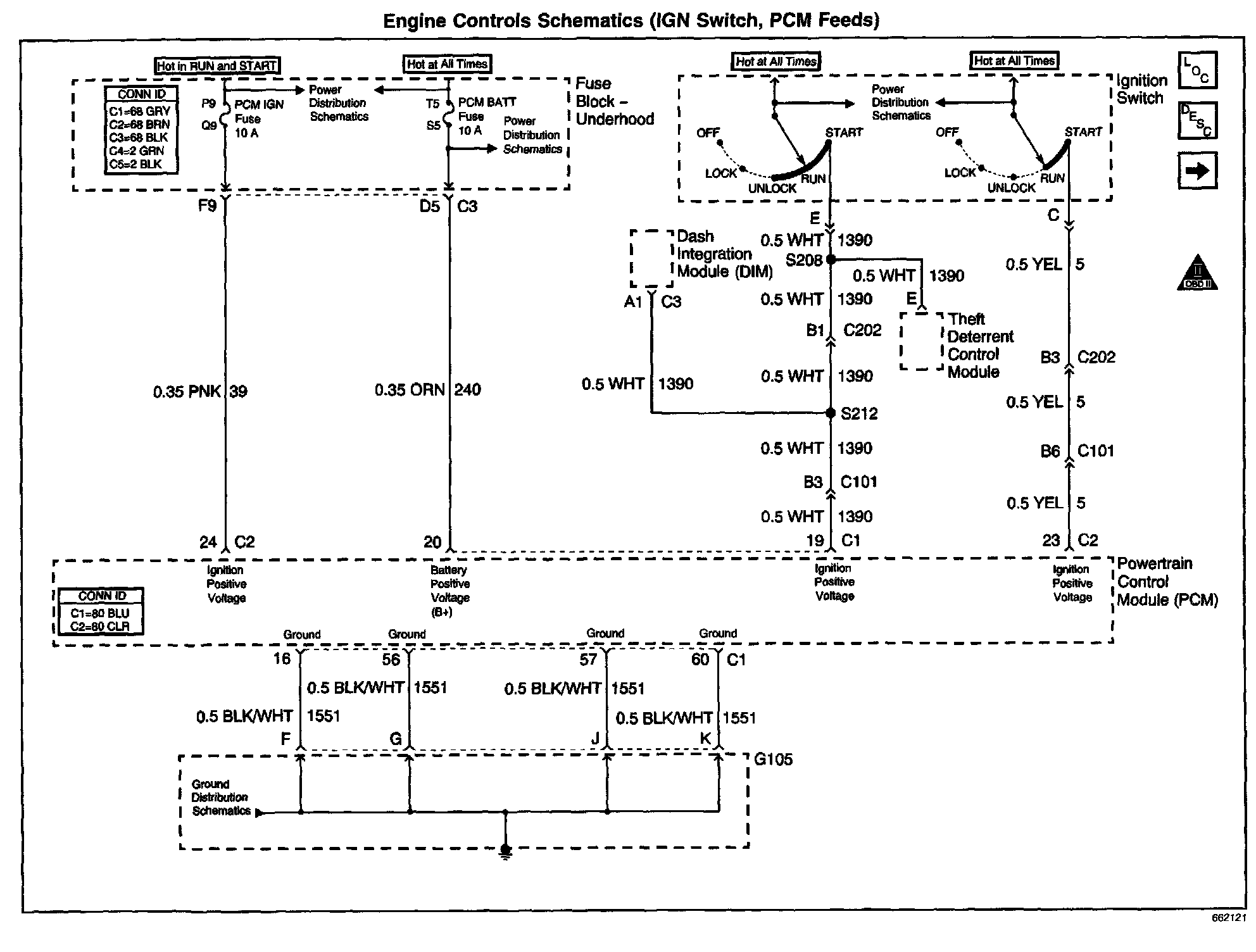

Engine Controls Schematics: IGN Switch, PCM Feeds:

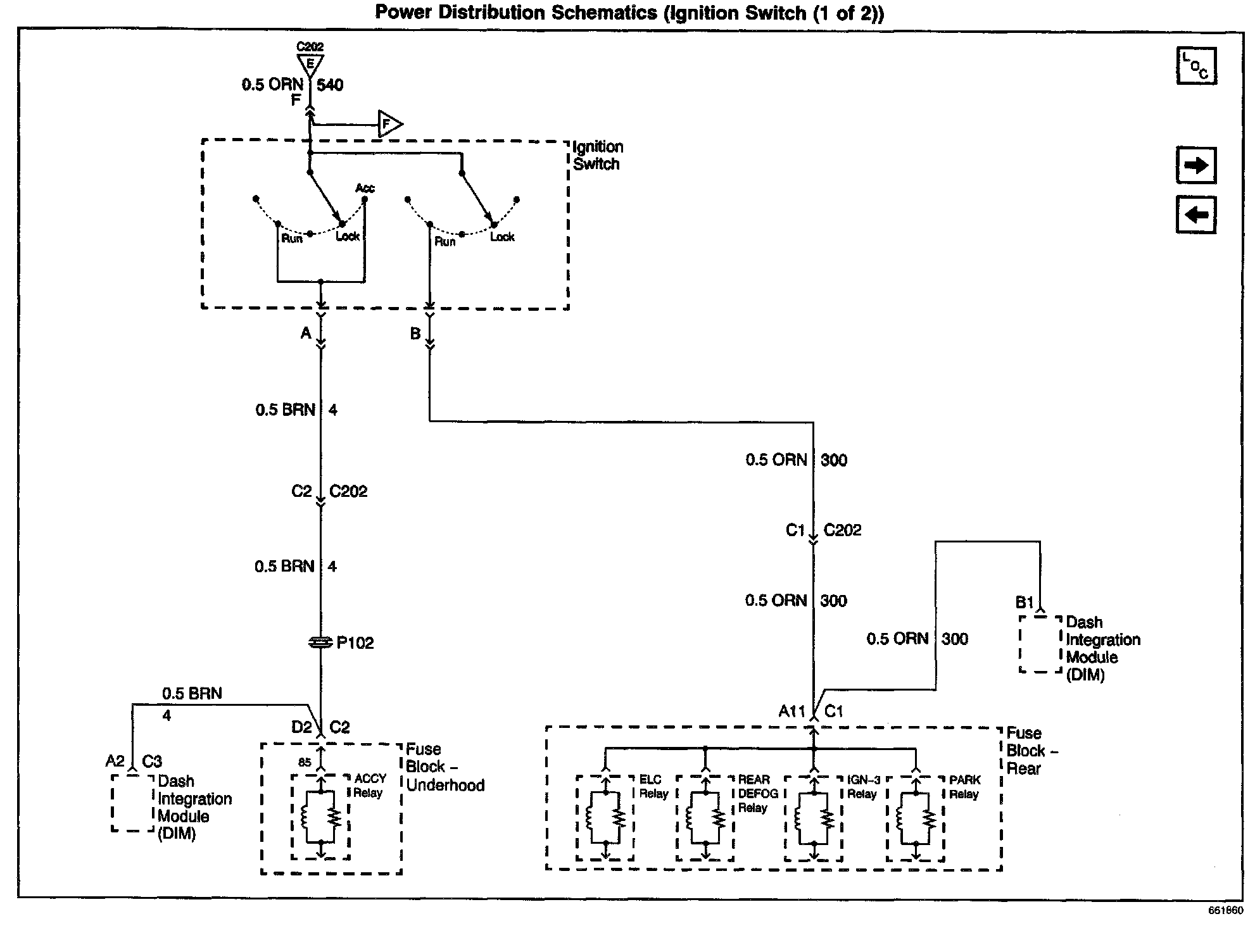

Power Distribution Schematics: Ignition Switch (Part 1 Of 2):

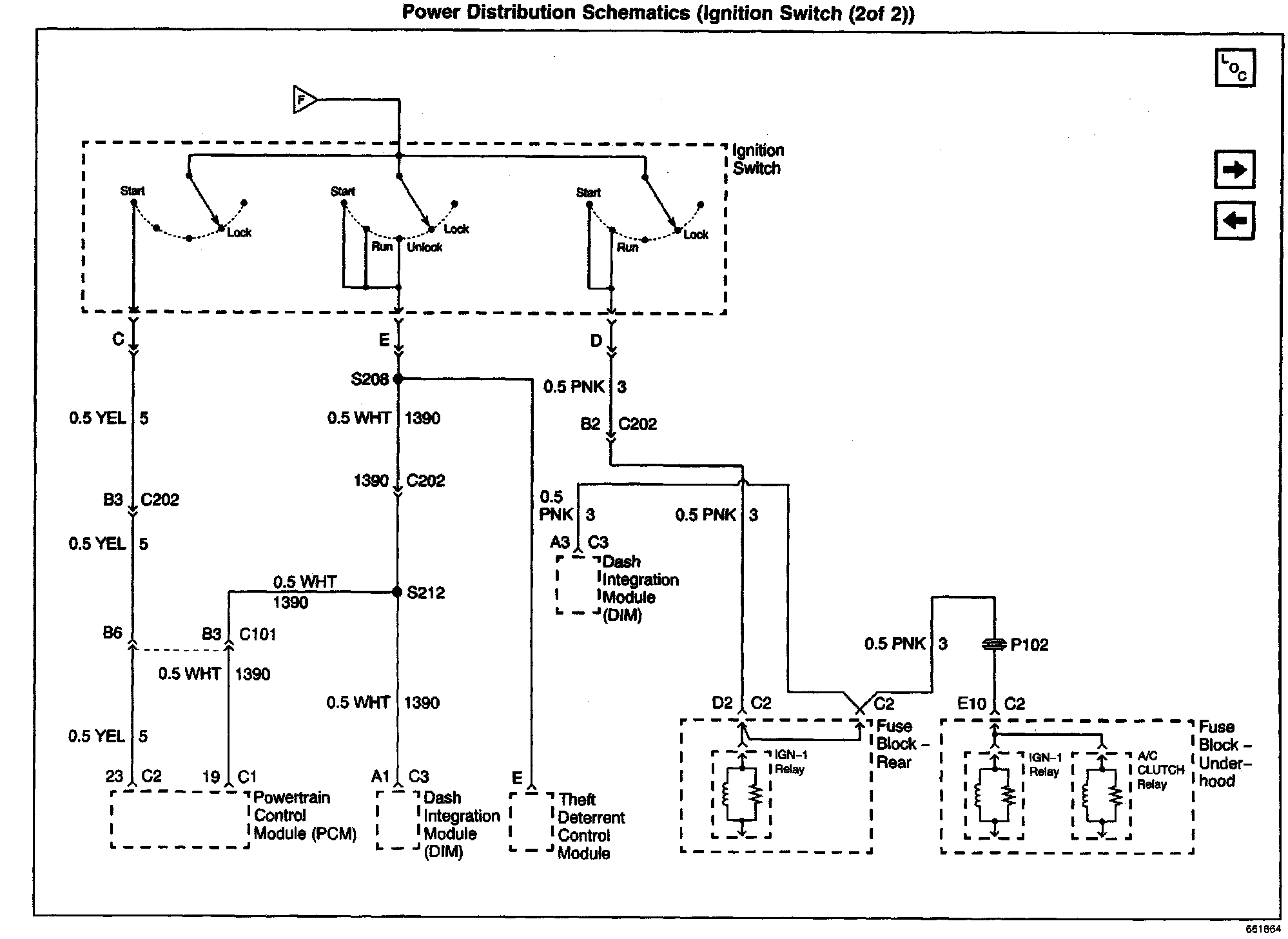

Power Distribution Schematics: Ignition Switch (Part 2 Of 2):
