Driver Door Module (DDM) Power and Ground

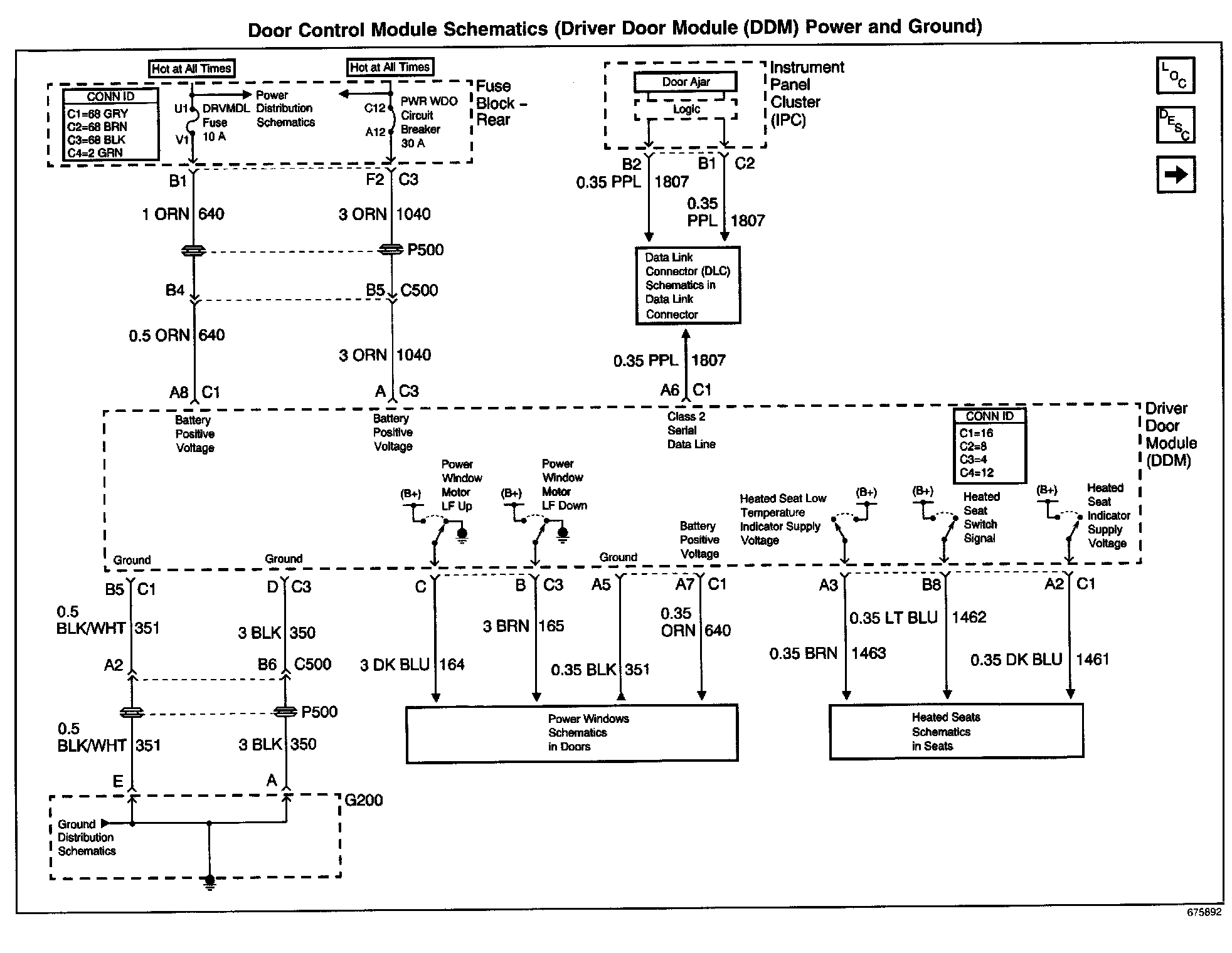

Door Control Module Schematics: Driver Door Module (DDM) Power And Ground:
