Home >> Buick >> 2001 >> LeSabre V6-3.8L VIN K >> Repair and Diagnosis >> Diagrams >> Connector Views >> Door Module >> Driver Door Module (DDM) C2

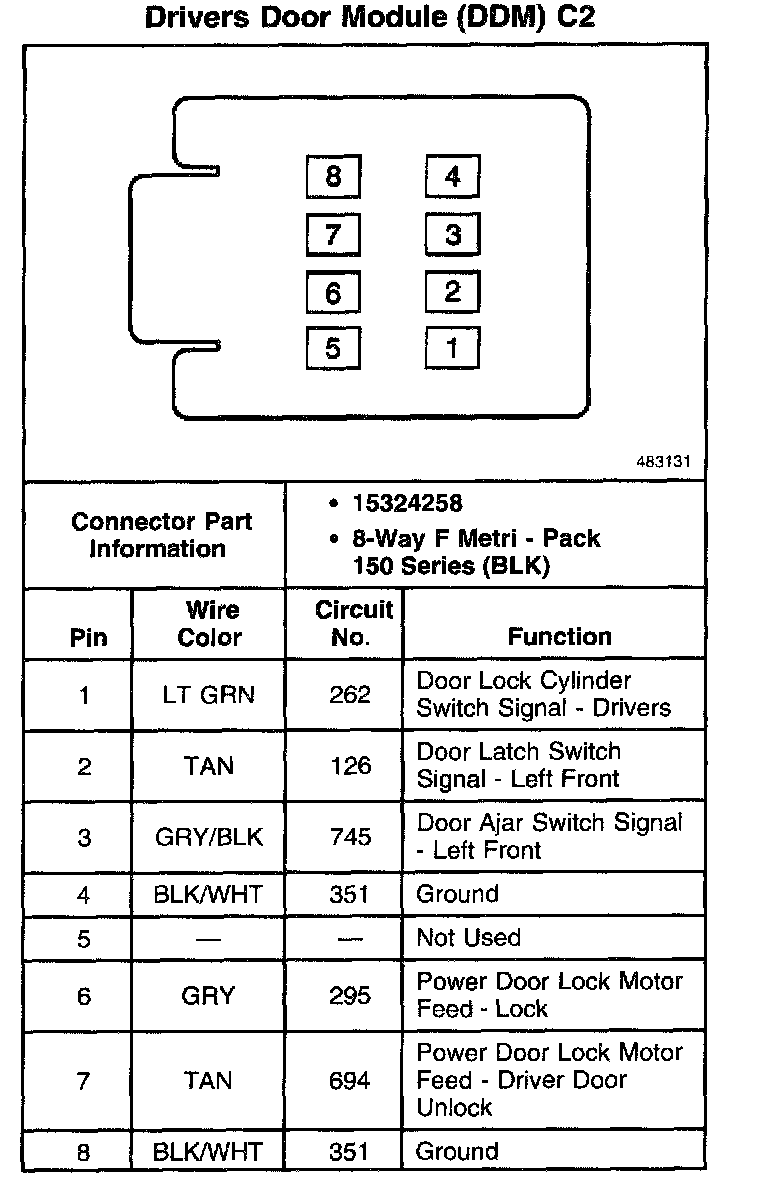

Driver Door Module (DDM) C2

Driver Door Module (DDM) C2:
