Home >> Buick >> 2001 >> Century V6-3.1L VIN J >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Assembly, HVAC >> HVAC Systems - Manual >> HVAC Control Module, C1

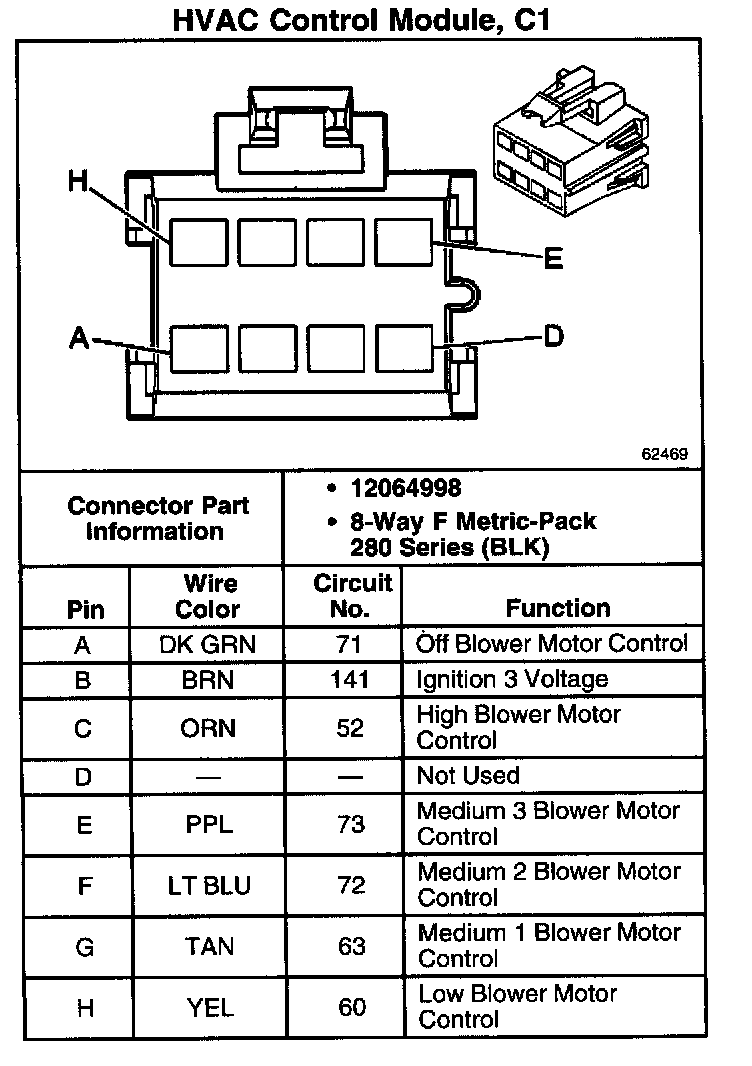

HVAC Control Module, C1

HVAC Control Module, C1:
