Connector Views

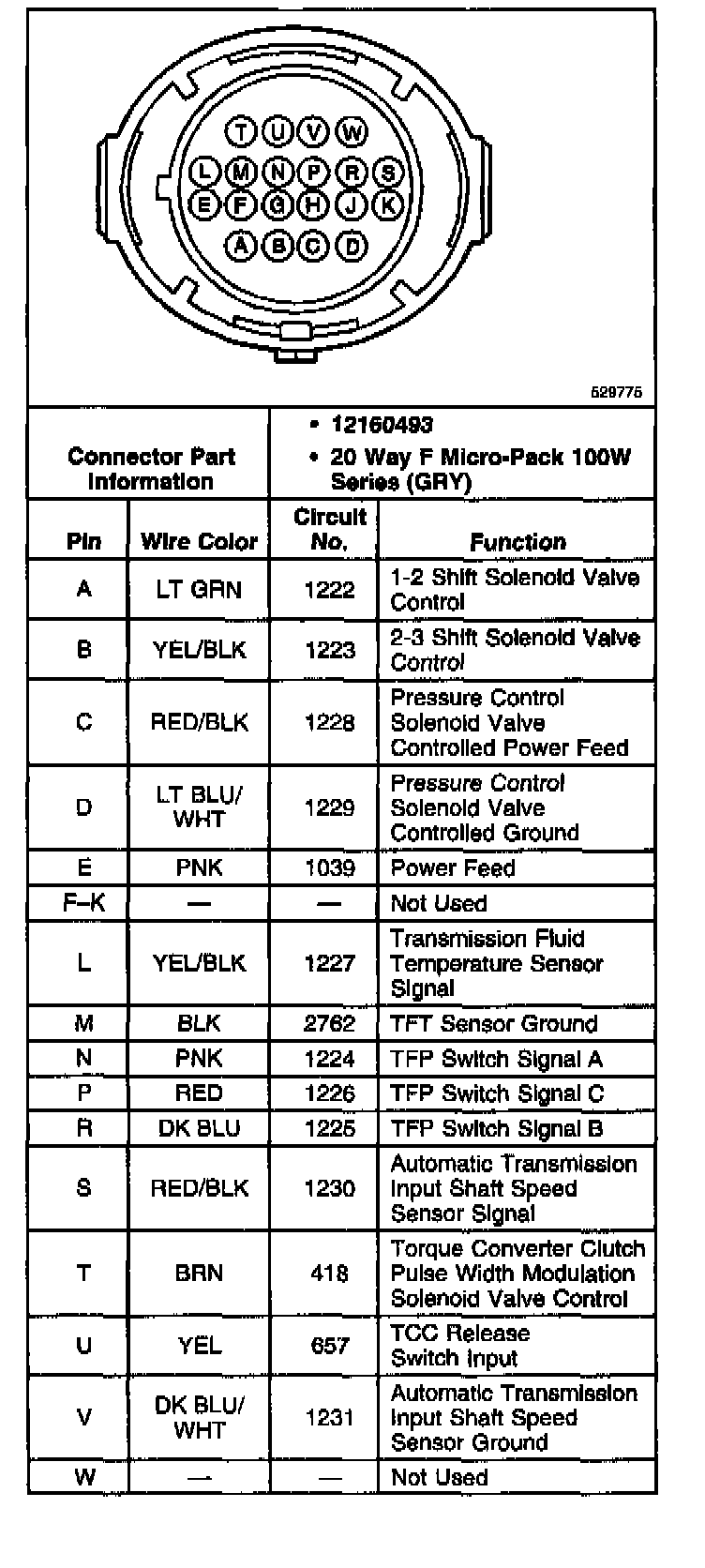

AT Inline Harness 20-way Connector, Engine Side

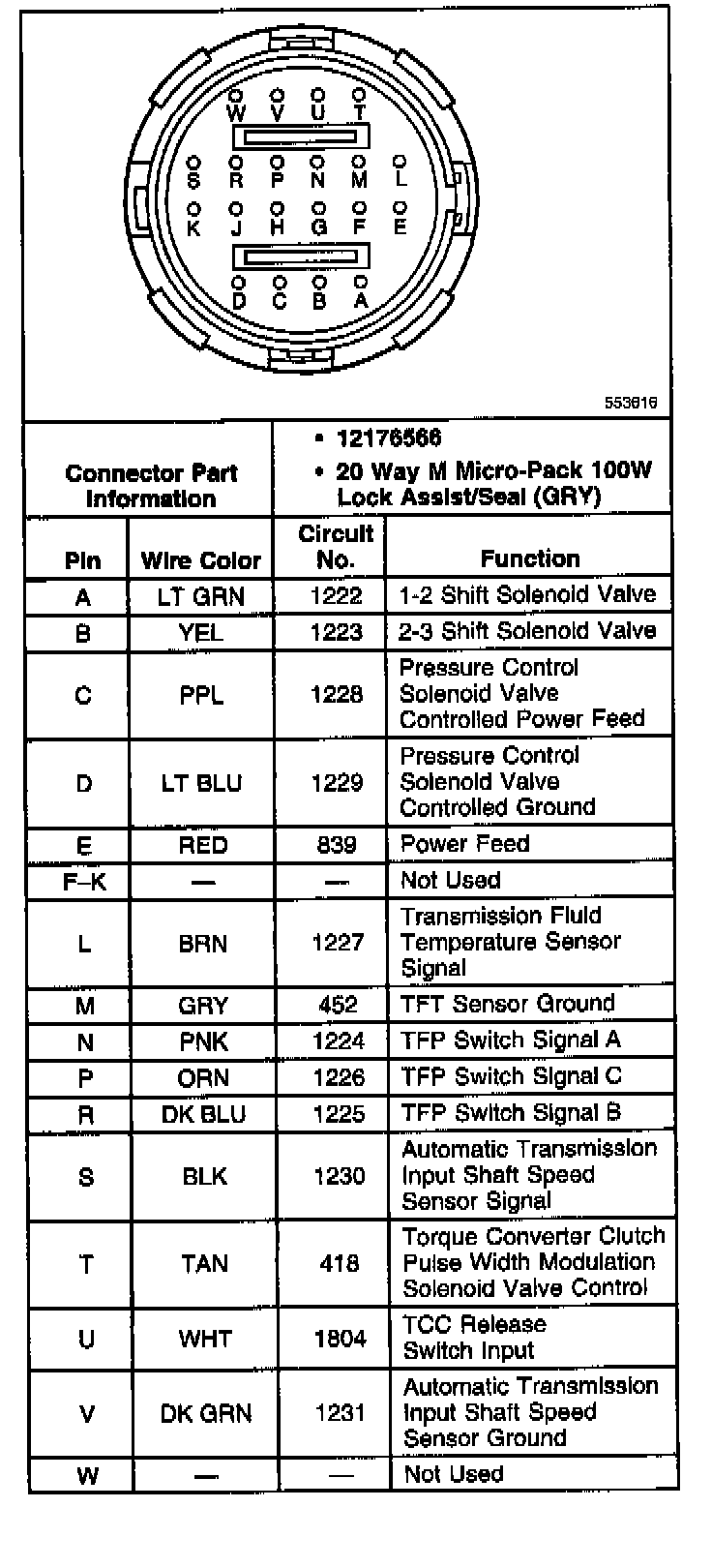

AT Inline Harness 20-way Connector, Transmission Side
