Home >> Buick >> 2000 >> Regal V6-3.8L SC VIN 1 >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> Engine Controls >> Generator and Class 2 Serial Data

Generator and Class 2 Serial Data

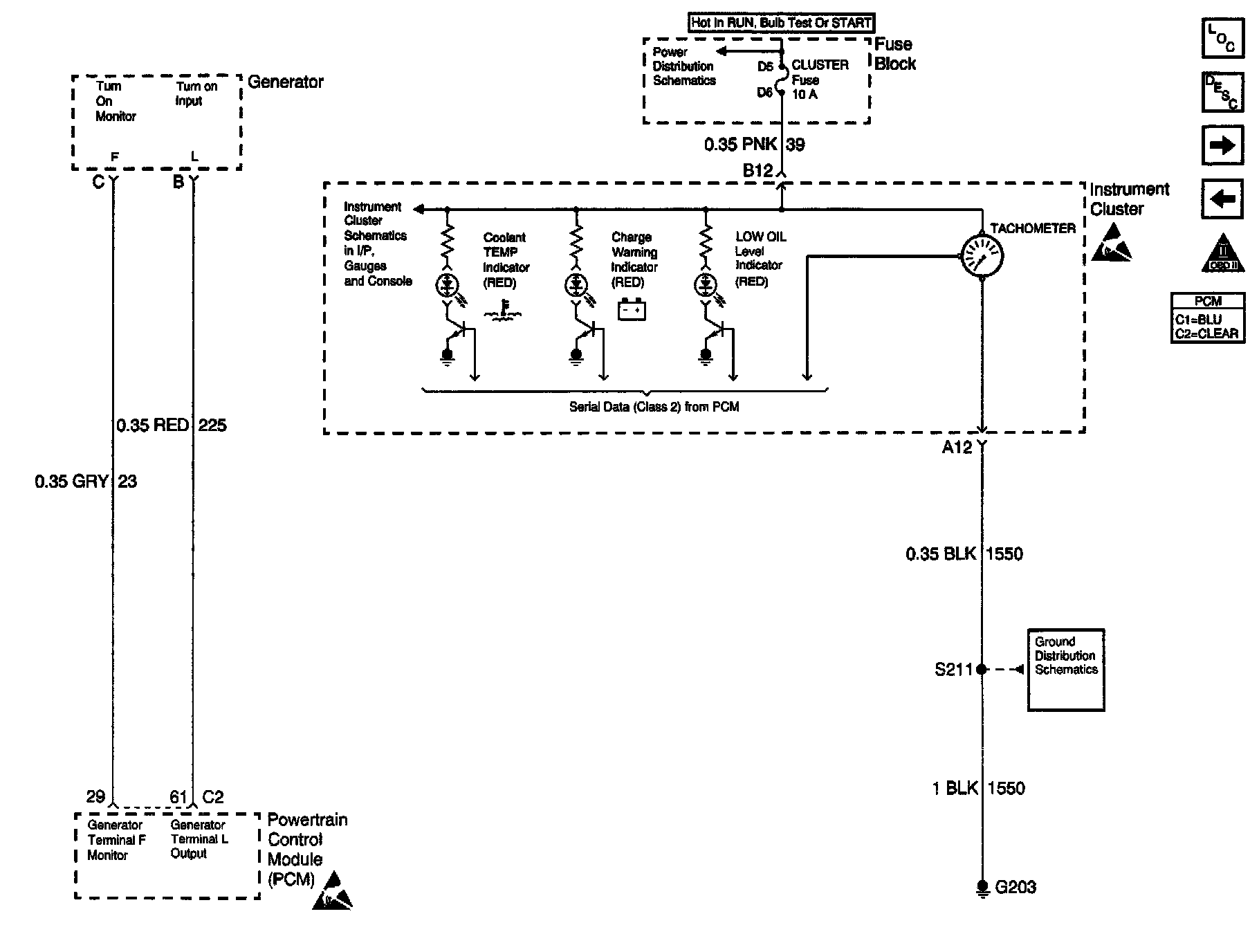

Engine Controls Schematics: Generator and Class 2 Serial Data:
