Door Lock Switch Inputs and RCDIR

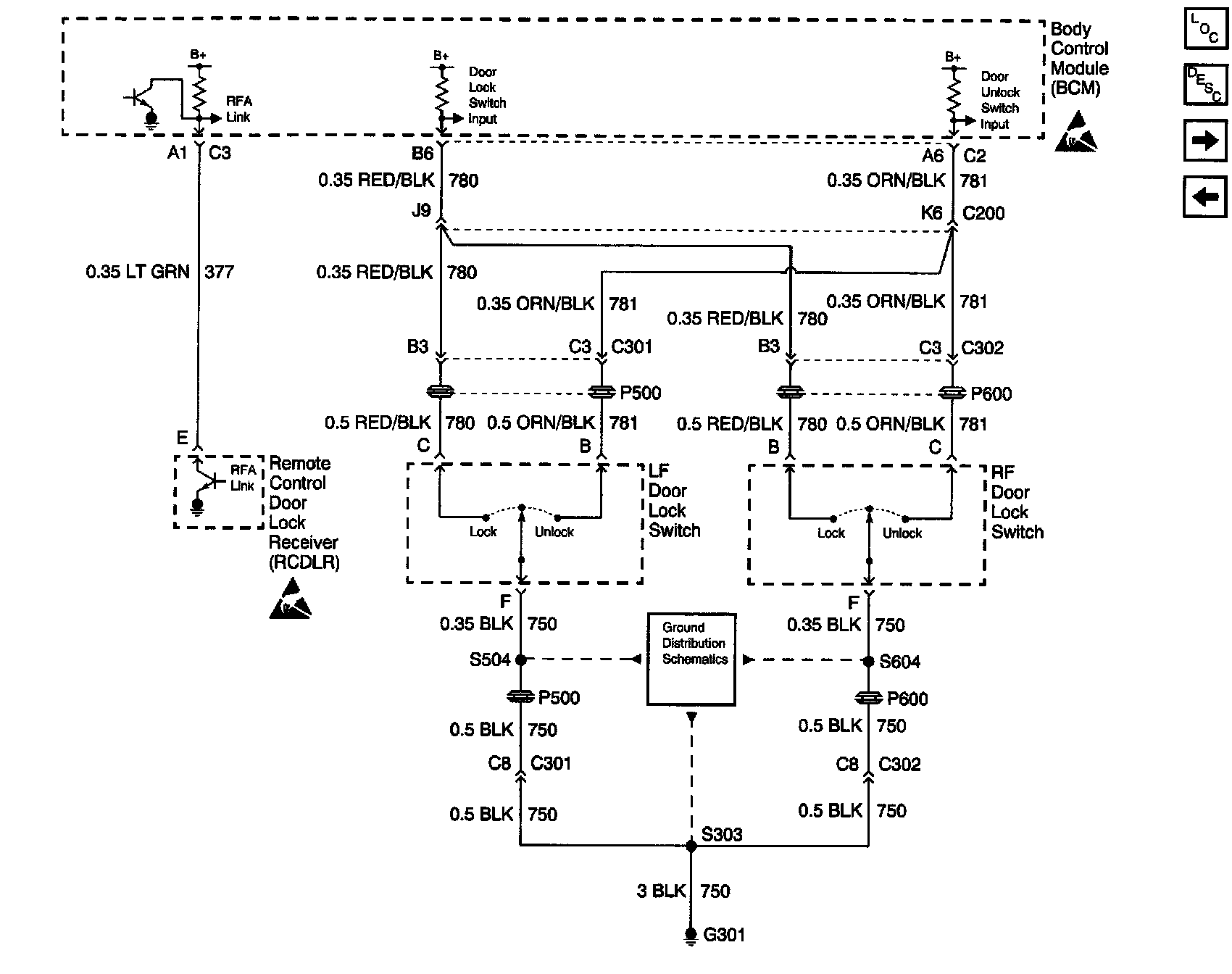

Body Control Module Schematics : Door Lock Switch Inputs And RCDLR:
