Timing Chain: Service and Repair

- Tools Required
- J36660-A Torque Angle Meter

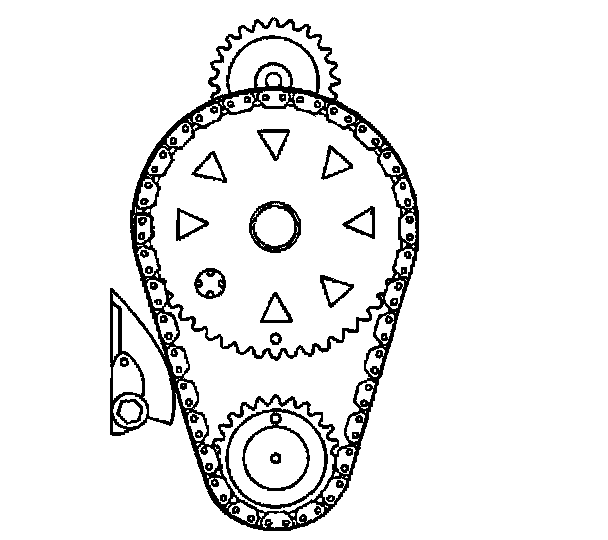

1. Install the timing chain on the sprockets. Align the timing marks.

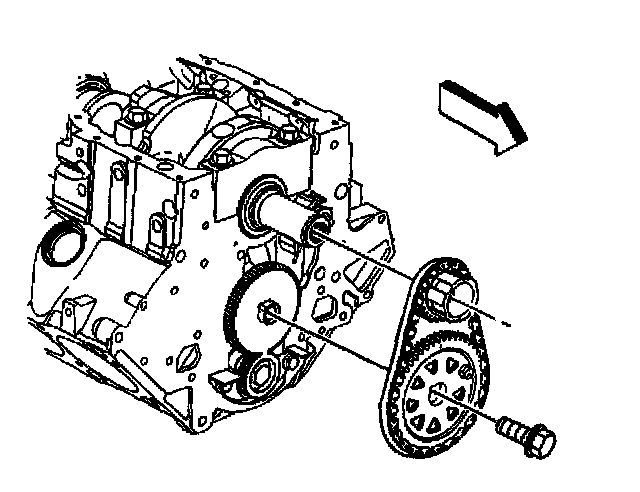

2. Install the timing chain, the crankshaft sprocket, and the camshaft sprocket.

Notice: Refer to Permanently Stretching Bolt Notice in Service Precautions.

Notice: Refer to Fastener Notice in Service Precautions.

3. Install the camshaft sprocket bolt.
Tighten the camshaft sprocket bolt to 100 Nm (74 lb ft). Use J36660-A to tighten the camshaft sprocket bolt an additional 90 degrees.





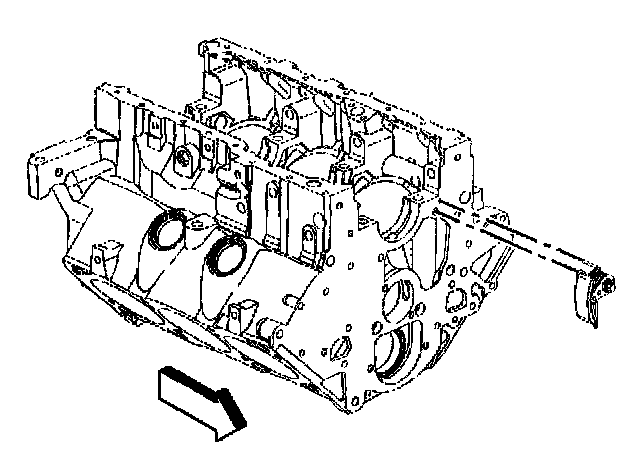

4. Install the timing chain dampener.
