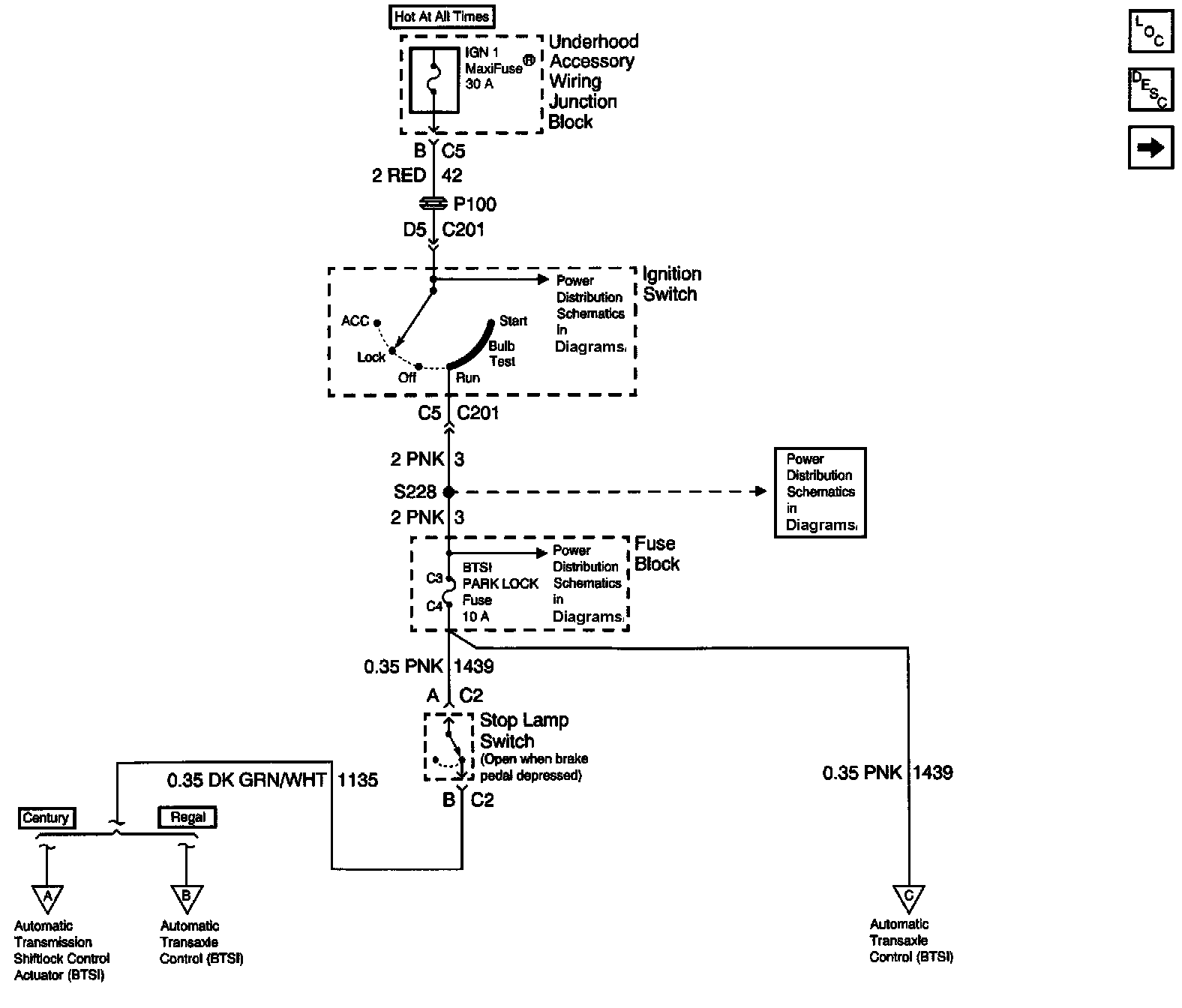

Brake Transmission Shift Interlock Control Schematic
Brake Transmission Shift Interlock Control Schematic
