PWR, RAP Relay, HDLP Relay, Park LP Relay & Ambient LT Sensor

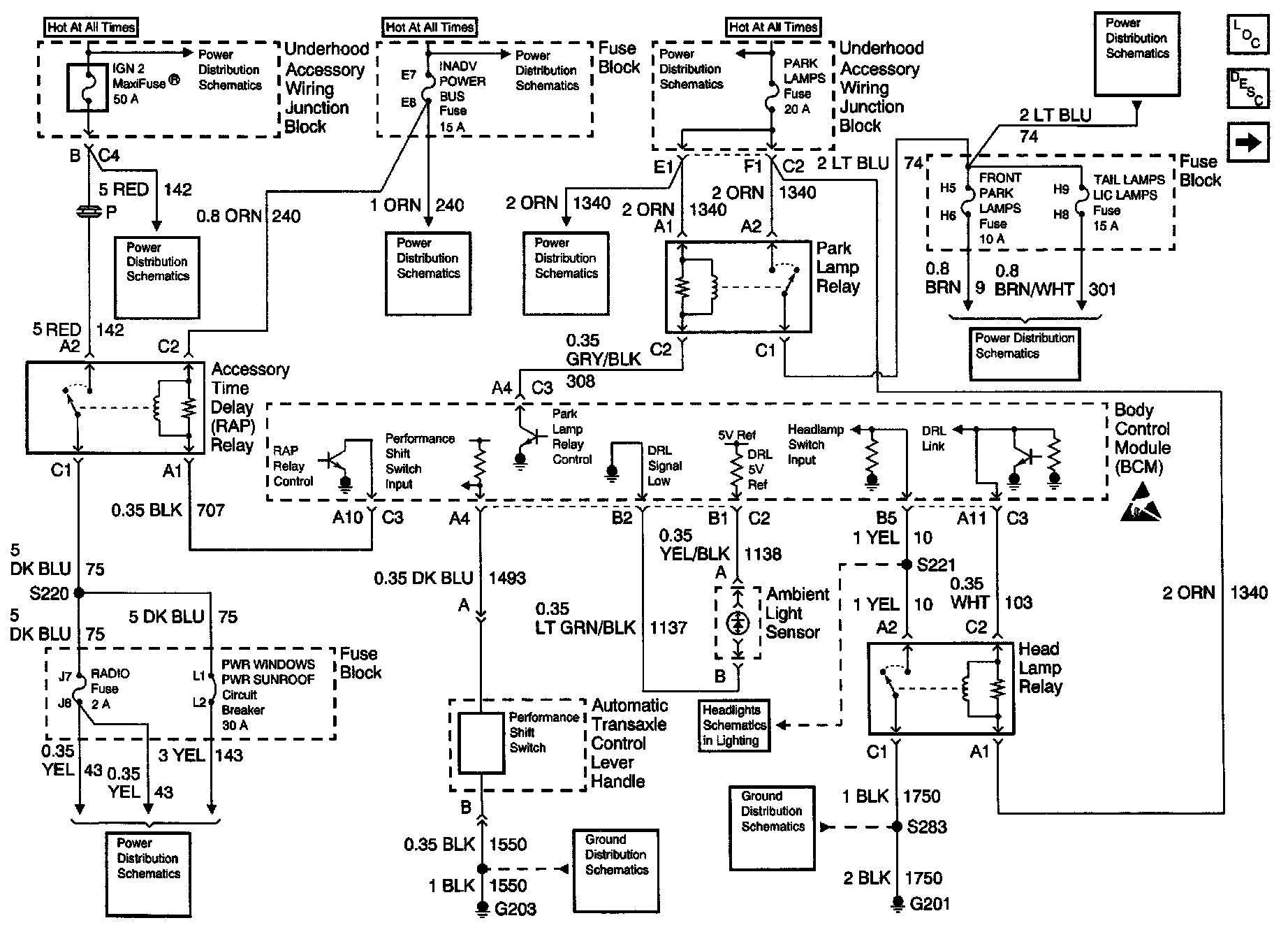

Body Control Module Schematics : Power, RAP Relay, Headlamp Relay, Park Lamp Relay And Ambient Light Sensor:
