Buick
>>
2000
>>
LeSabre V6-3.8L VIN K
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Oxygen Sensor
>>
Diagrams
>>
Connector Views
>>
Bank 1 Sensor 2
Bank 1 Sensor 2

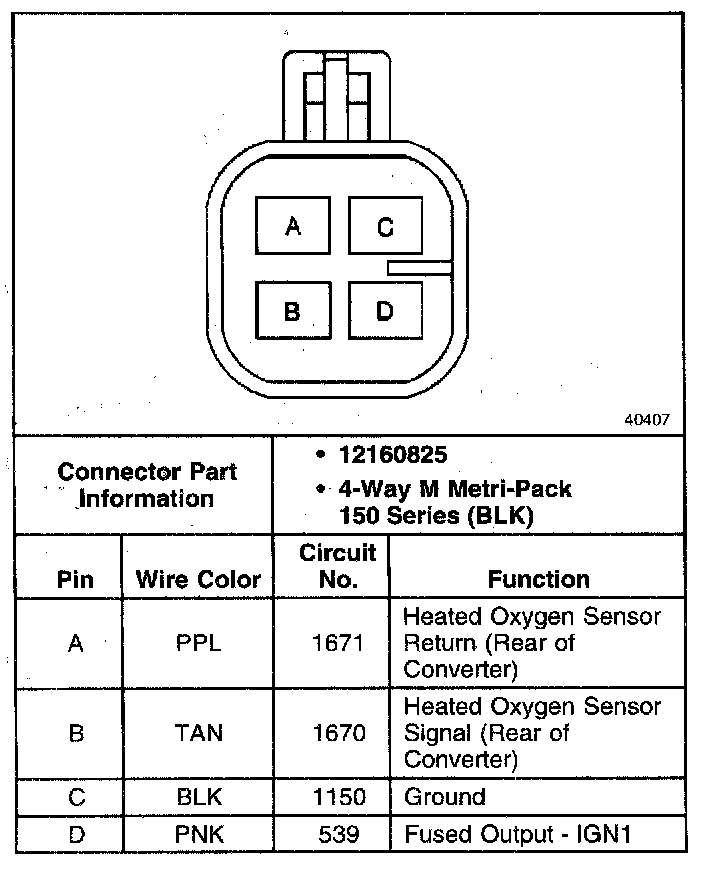

Heated Oxygen Sensor HO2S Bank1 Sensor2:
