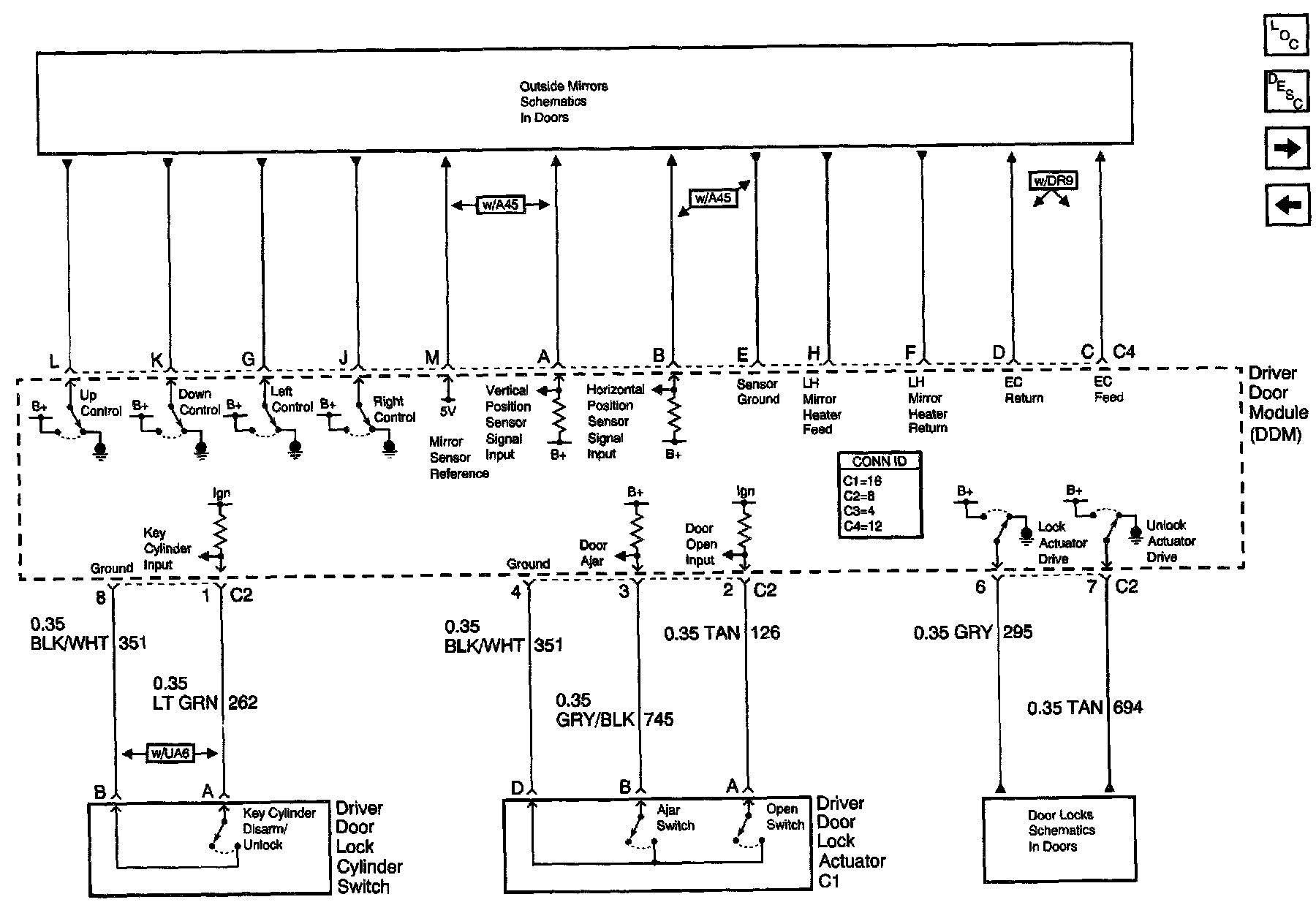

Driver Door Module (DDM) Inputs/Outputs

Door Control Module Schematics: Driver Door Module (DDM) Inputs/Outputs:
