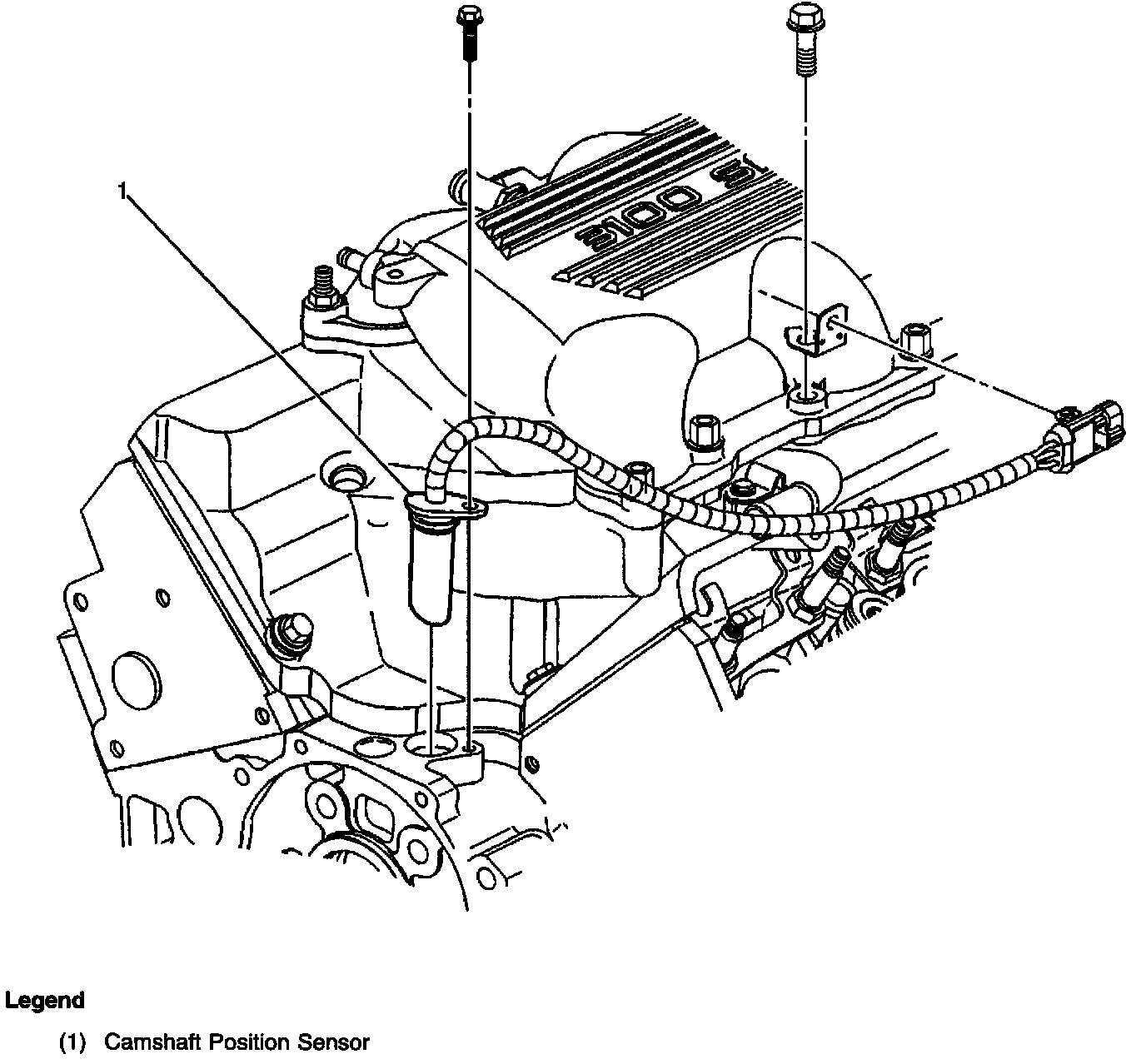

Camshaft Position Sensor: Locations

Locations View:




Right side of the engine, below the intake-plenum
