Home >> Buick >> 1999 >> Regal V6-3.8L SC VIN 1 >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse Block >> Locations

Fuse Block: Locations

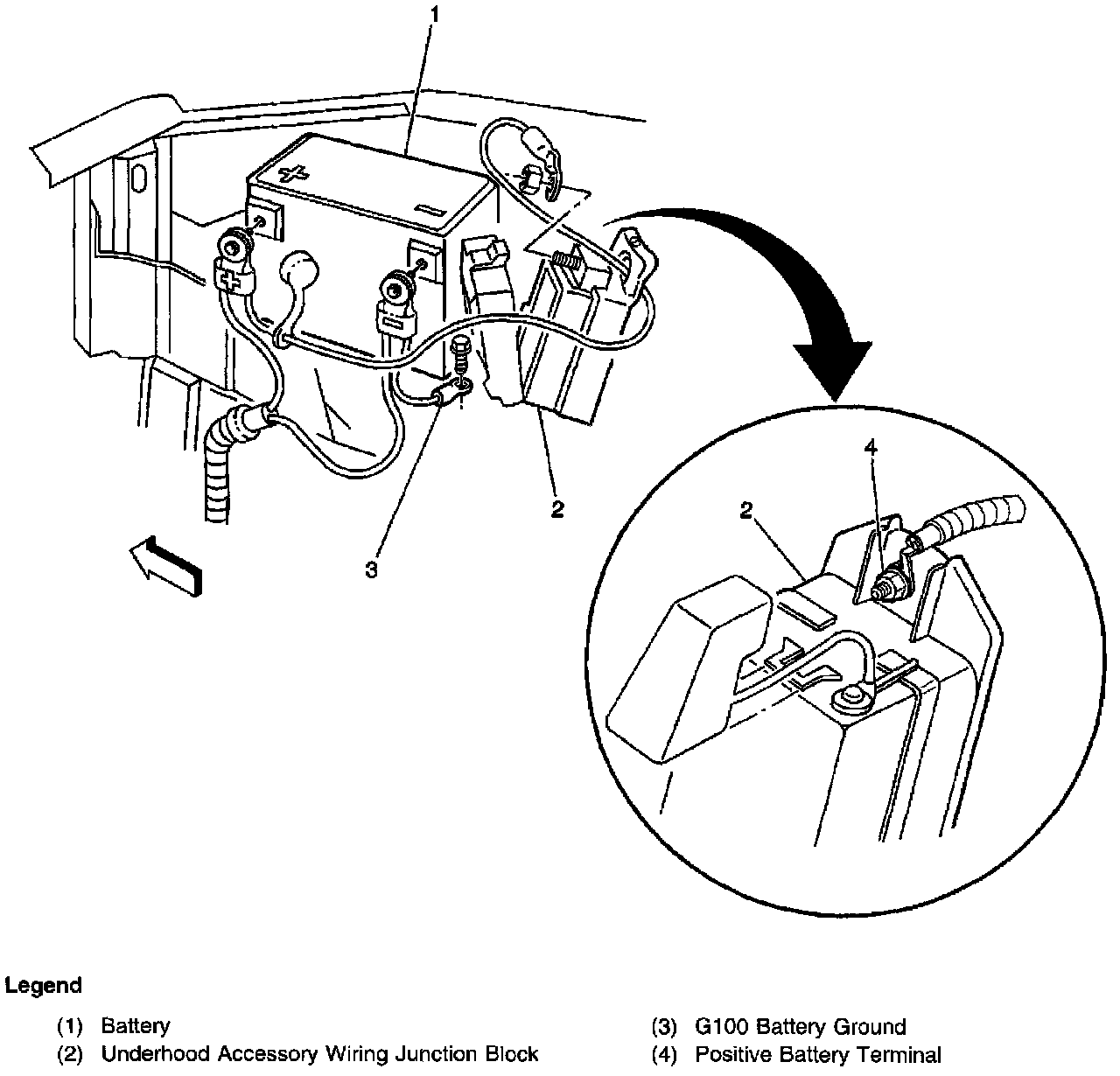

Component View:





Right side of the engine compartment, mounted to the strut tower
