Home >> Buick >> 1999 >> Regal V6-3.8L SC VIN 1 >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse Block >> Application and ID >> I/P Fuse Block

I/P Fuse Block

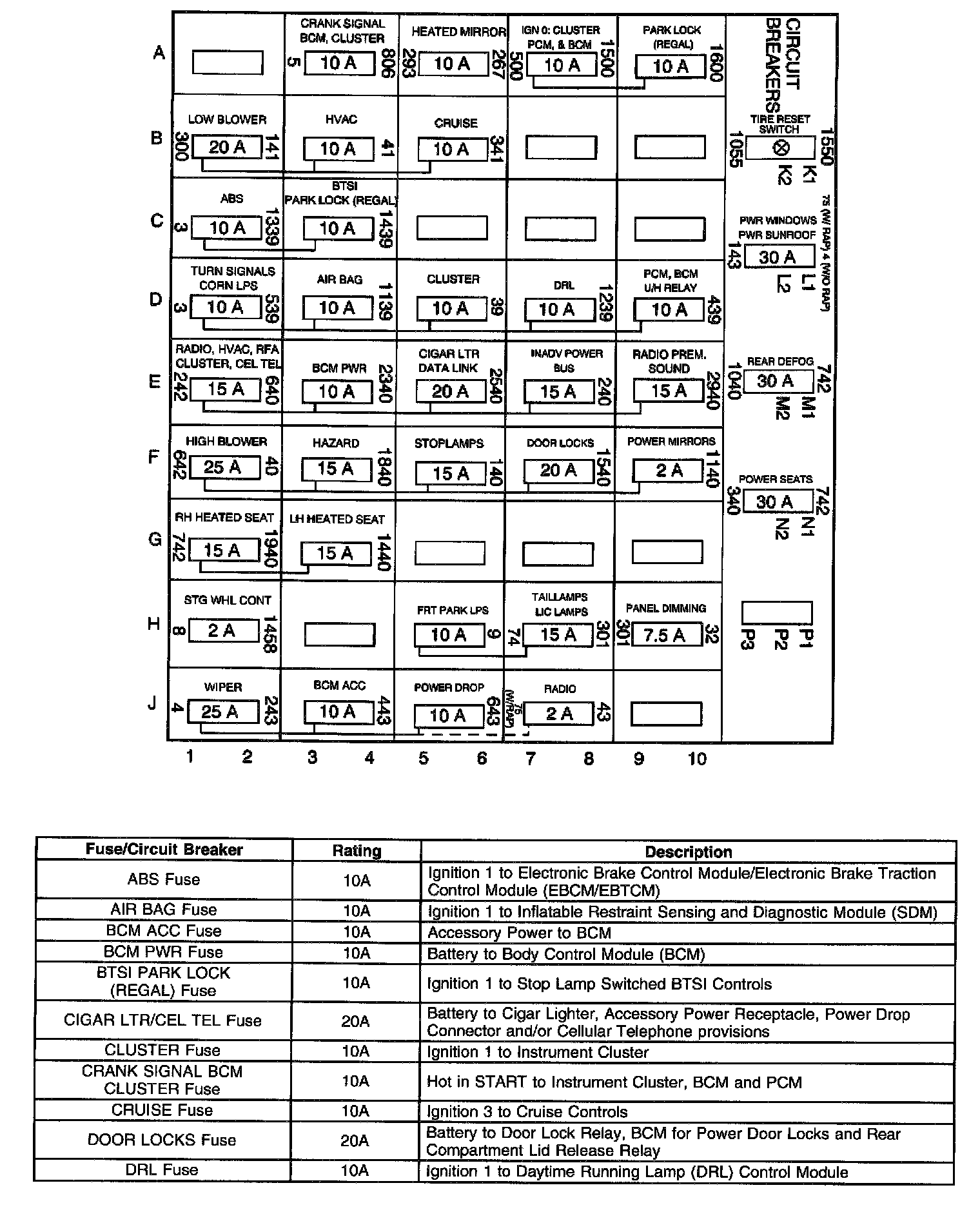

Fuse Block Details Schematics: I/P Fuse Block:

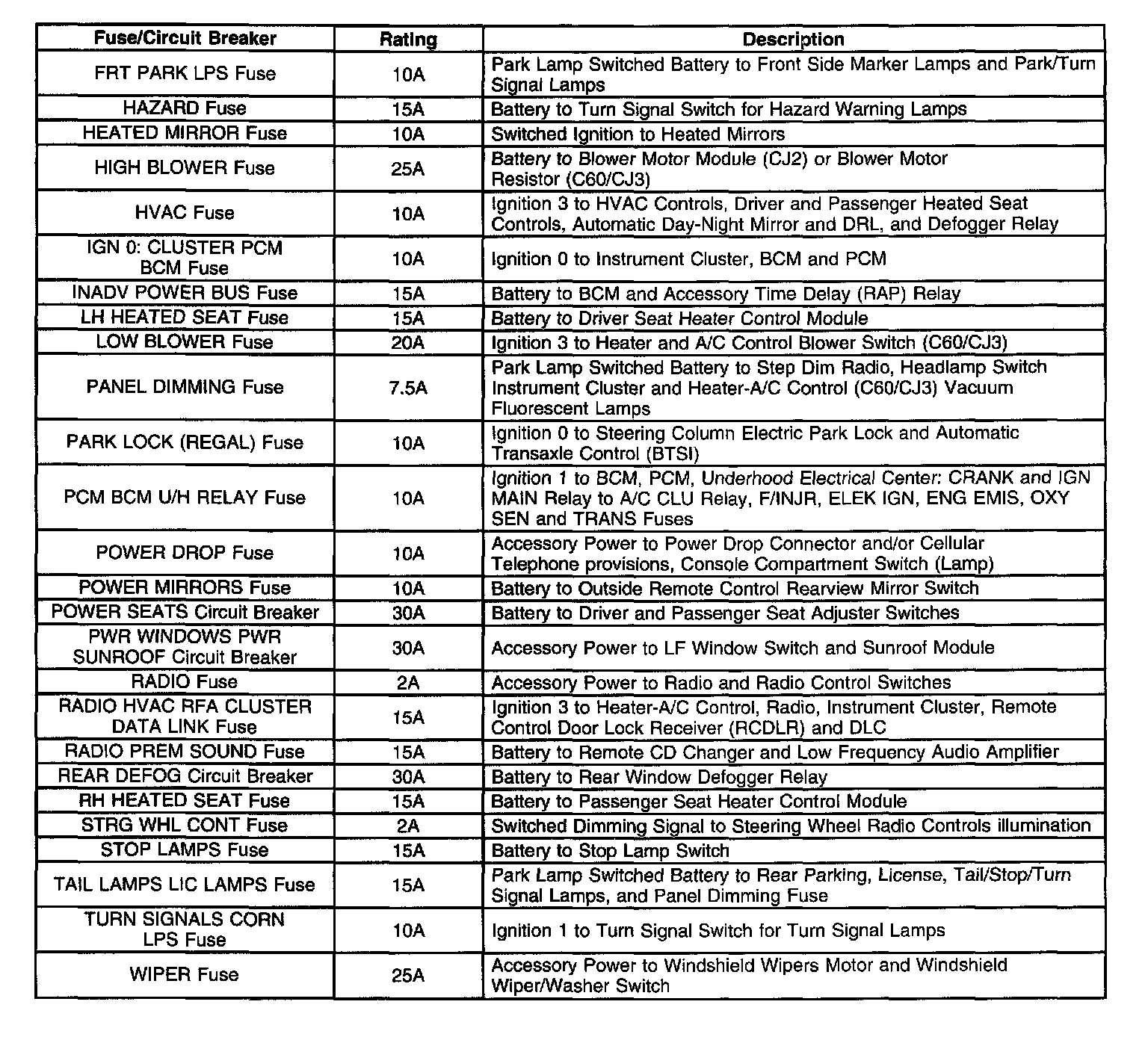

Fuse Block Details Schematics: I/P Fuse Block:
