Sun Load Sensor Replacement

SUN LOAD SENSOR REPLACEMENT - AUTOMATIC HVAC

REMOVAL PROCEDURE
1. Remove the defroster grille by prying up on the grille.

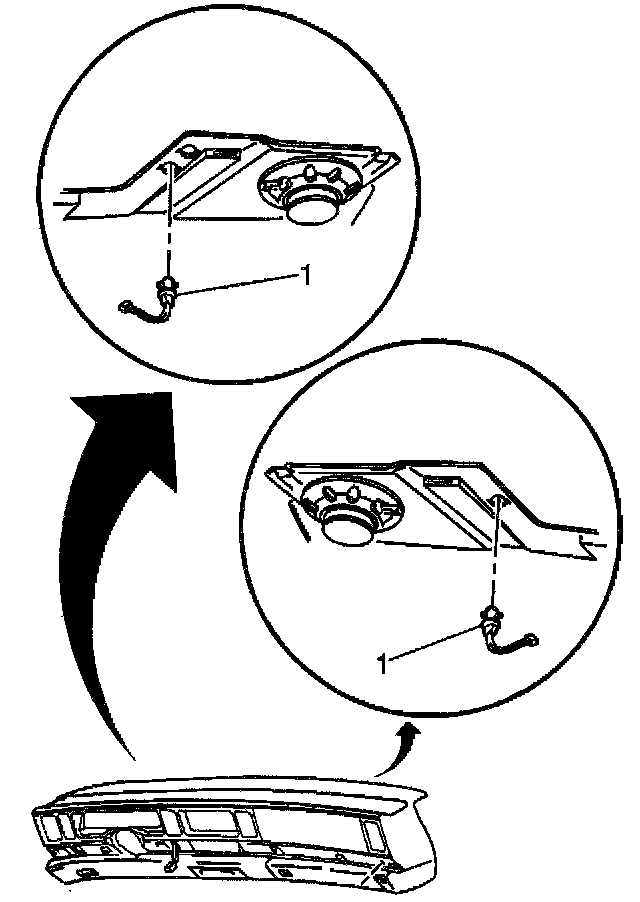

2. Remove the sun load sensor (1) from the defroster grille by twisting the sensor 1/4 turn.
3. Disconnect the sun load sensor electrical connector.
4. Remove the sun load sensor (1).

INSTALLATION PROCEDURE
1. Connect the sun load sensor electrical connector.
2. Install the sun load sensor (1) to the defroster grille by twisting the sensor 1A turn.
3. Install the defroster grille by snapping the grille into place.
