Wiring Diagrams

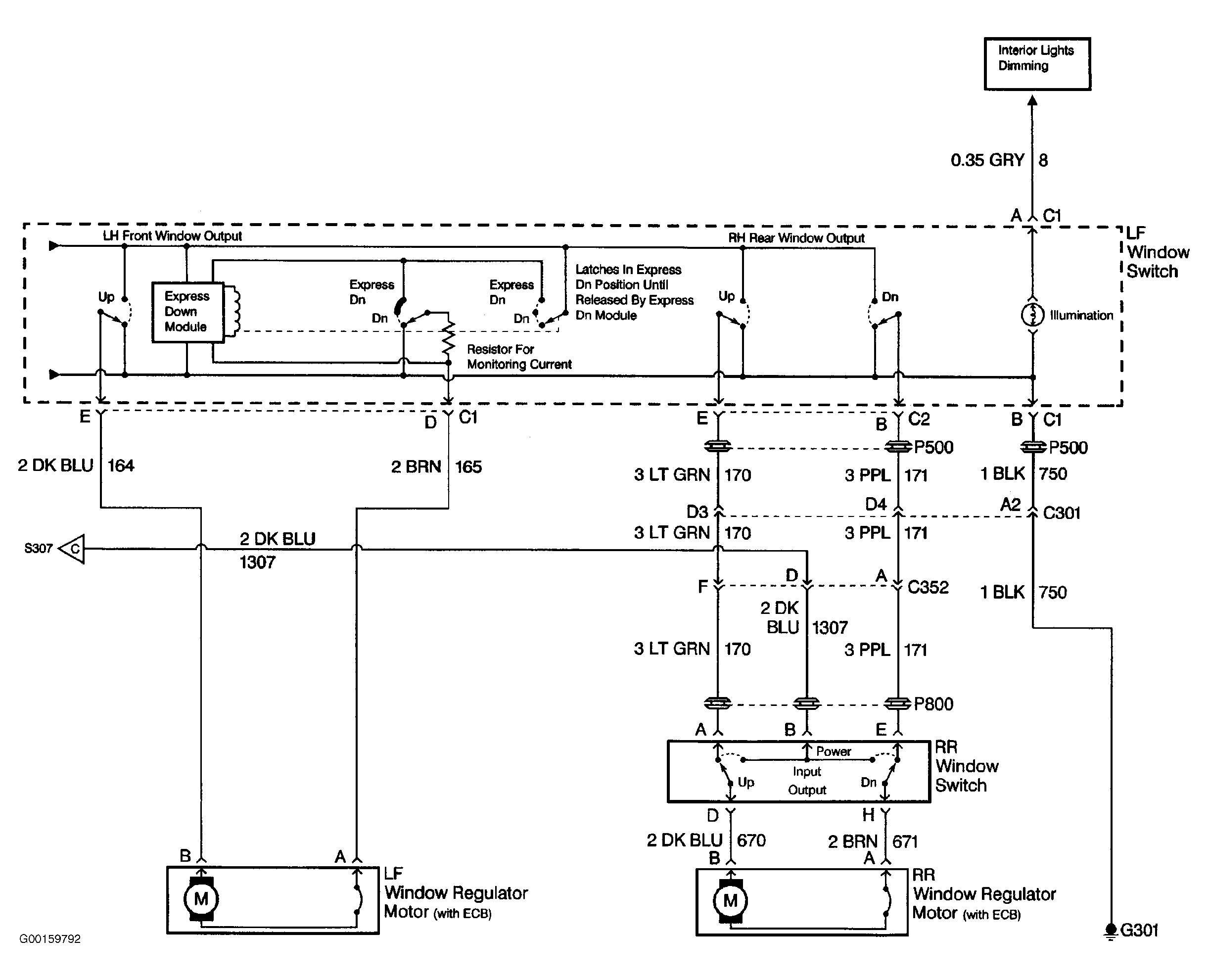

Fig 1: Power Window Wiring Diagram (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

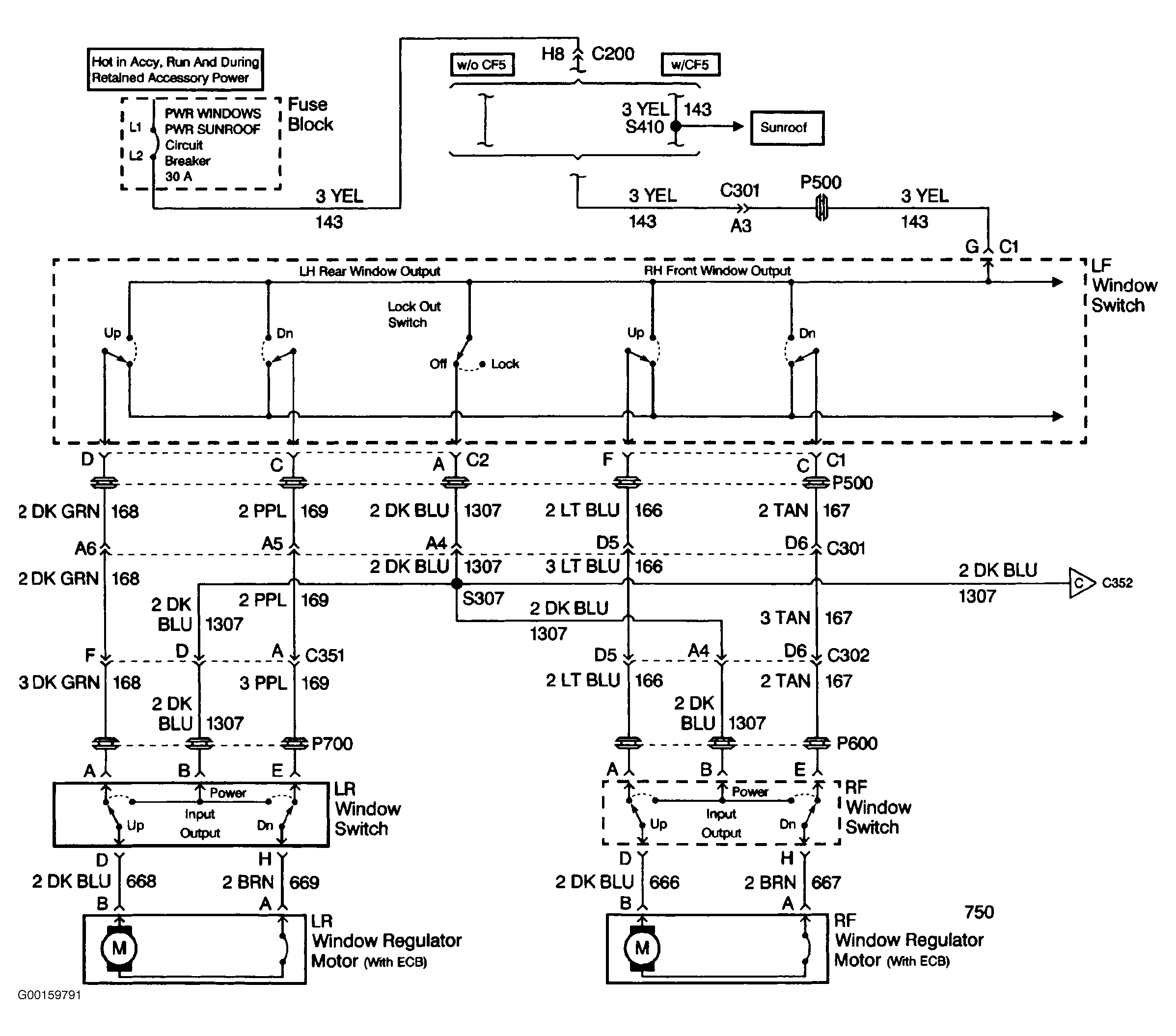

Fig 2: Power Window Wiring diagram (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
