Home >> Buick >> 1998 >> Regal V6-3.8L SC VIN 1 >> Repair and Diagnosis >> Heating and Air Conditioning >> Control Module HVAC >> Locations

Control Module HVAC: Locations

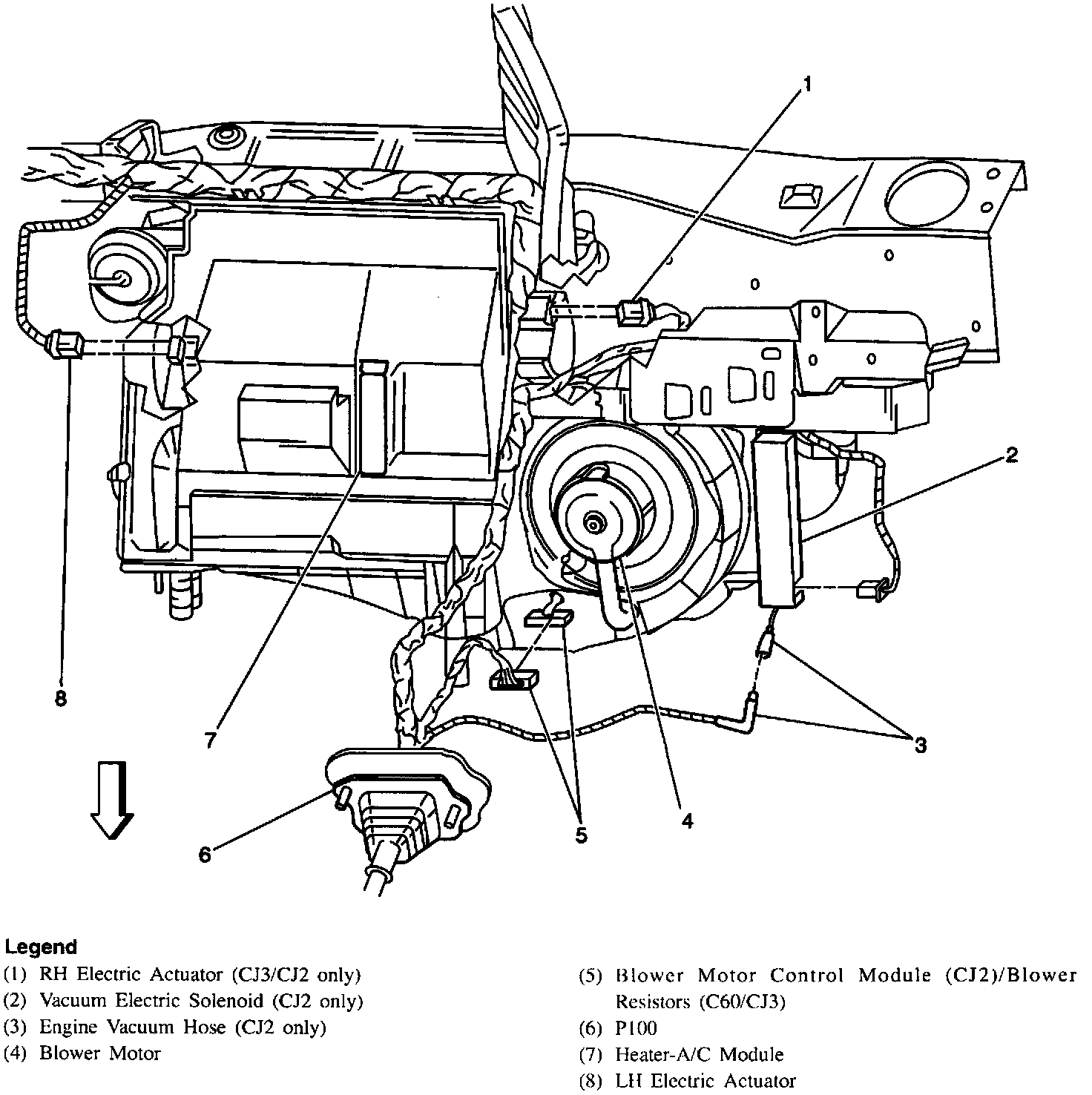

Behind Center Of I/P (CJ2 Shown, C60/CJ3 Similar):
