Home >> Buick >> 1998 >> Regal V6-3.8L SC VIN 1 >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> Cylinder Block Assembly >> Crankshaft, Engine

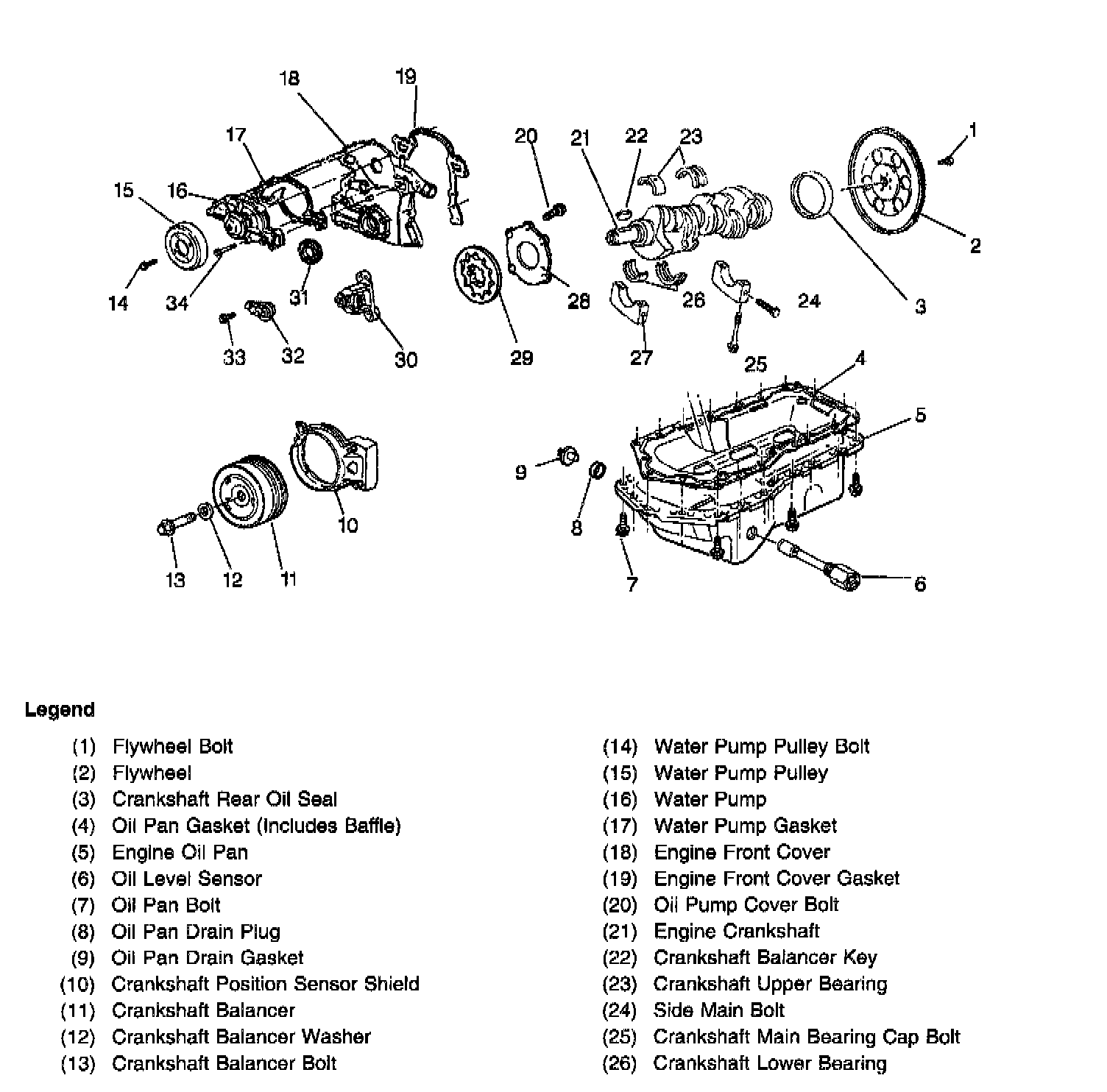

Crankshaft, Engine

Part 1 Of 2:



Part 2 Of 2:
