Home >> Buick >> 1997 >> Regal V6-3.8L SC VIN 1 >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Diagrams >> Connector Views

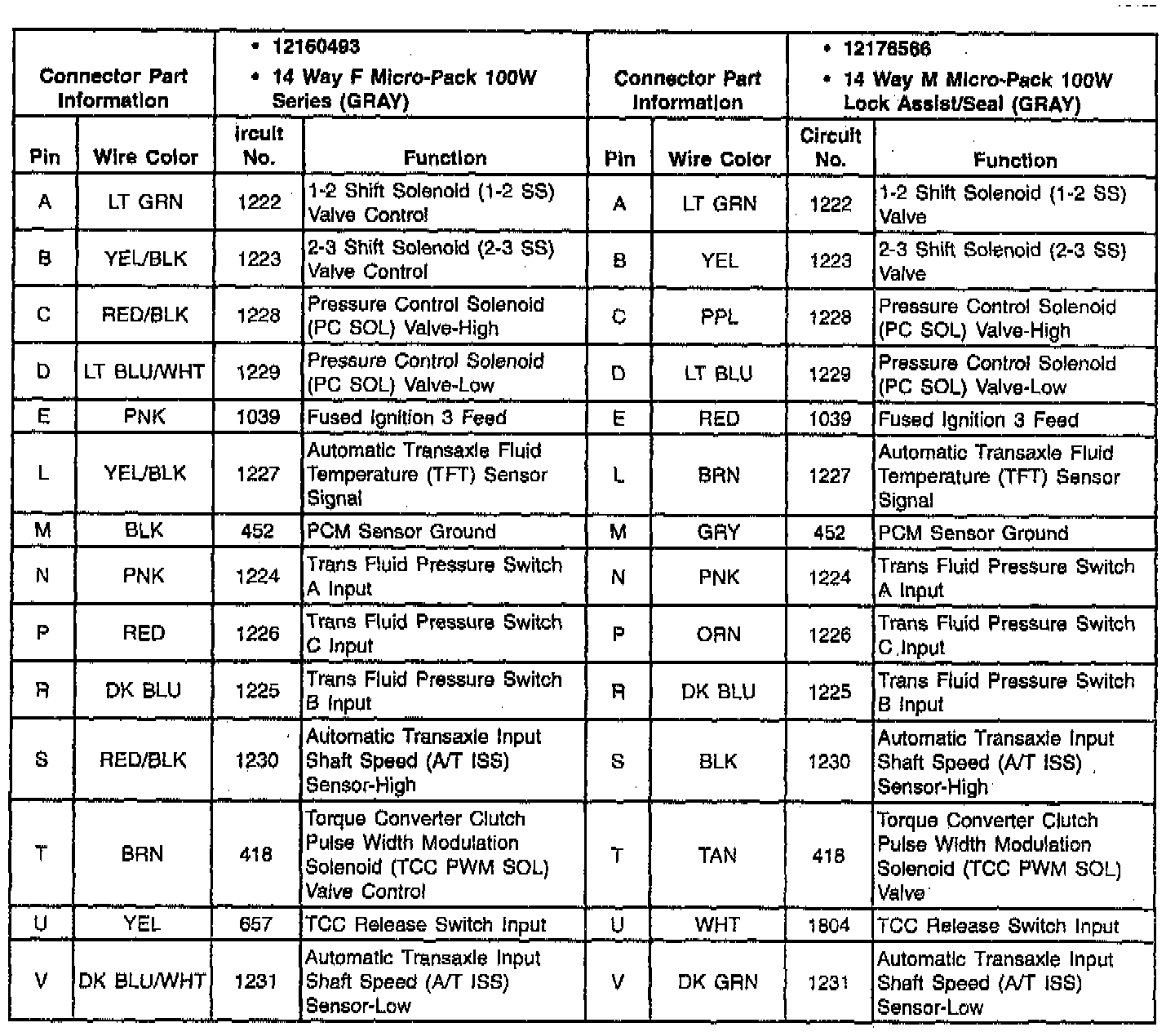

Connector Views

Part 1 Of 2:



Part 2 Of 2:
