Steering Column Support

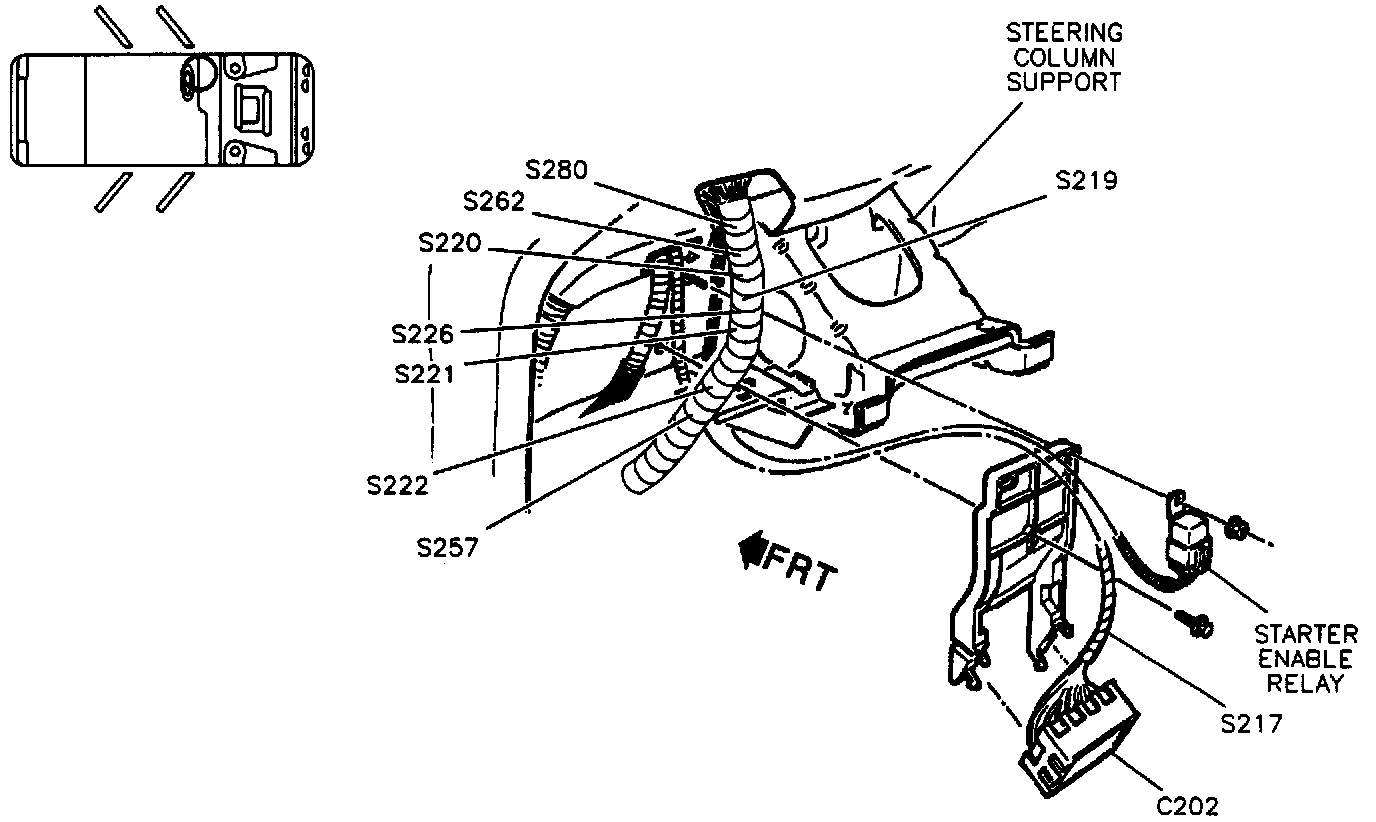

Under Steering Column Support:

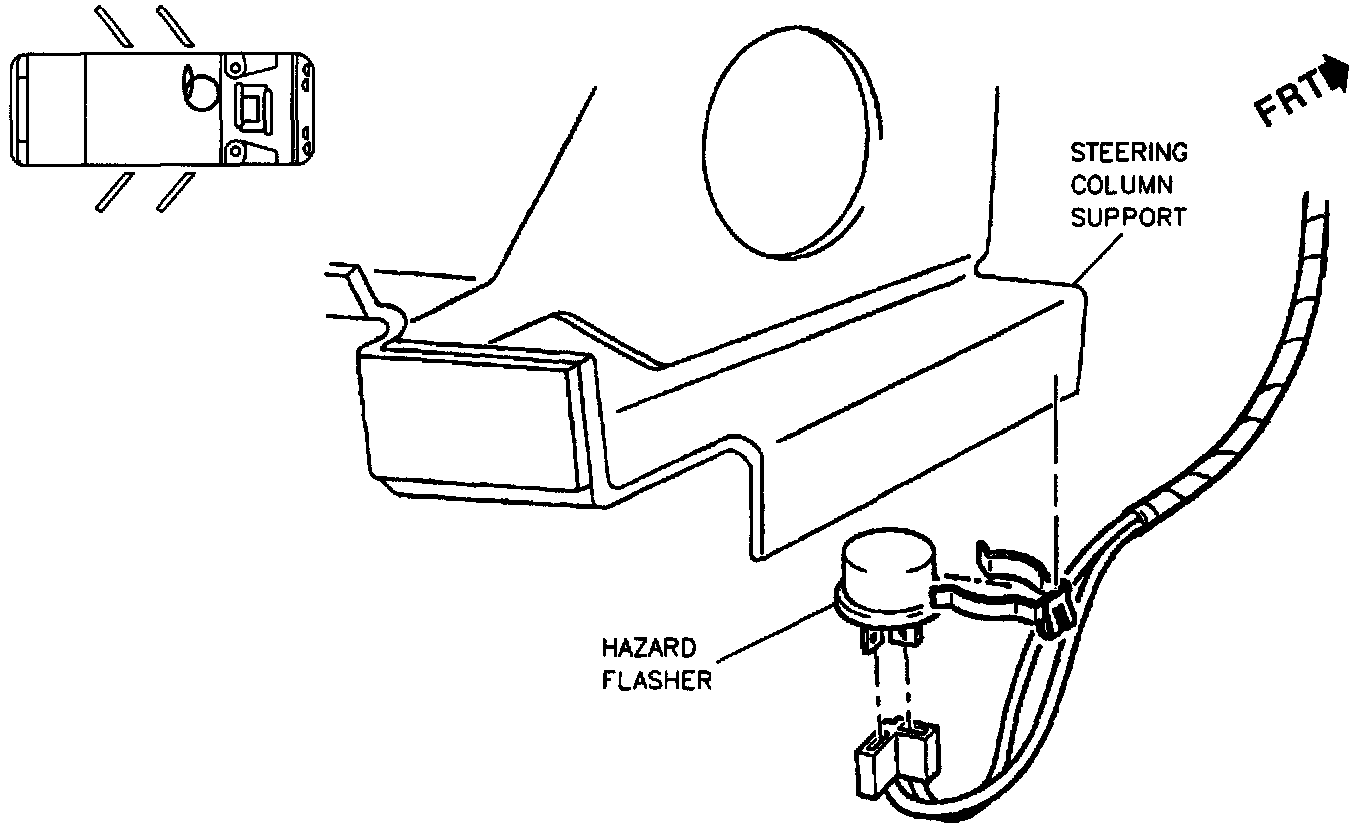

LH Side Of Steering Column Support:




RH Side Of Steering Column Support:




Center Of Passenger Compartment, Under Instrument Panel:
