Home >> Buick >> 1996 >> Century Sedan L4-2.2L VIN 4 >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Transmission Position Sensor/Switch >> Diagrams >> Transaxle Range Switch C1, C2

Transaxle Range Switch C1, C2

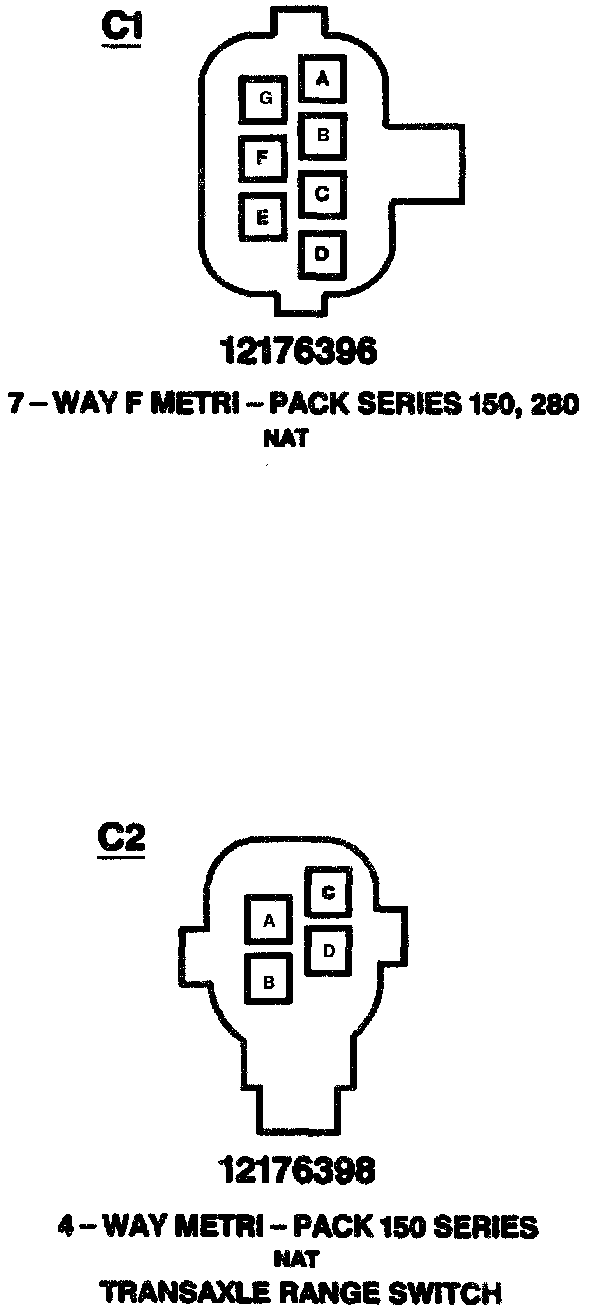

C1, C2: Transaxle Range Switch:

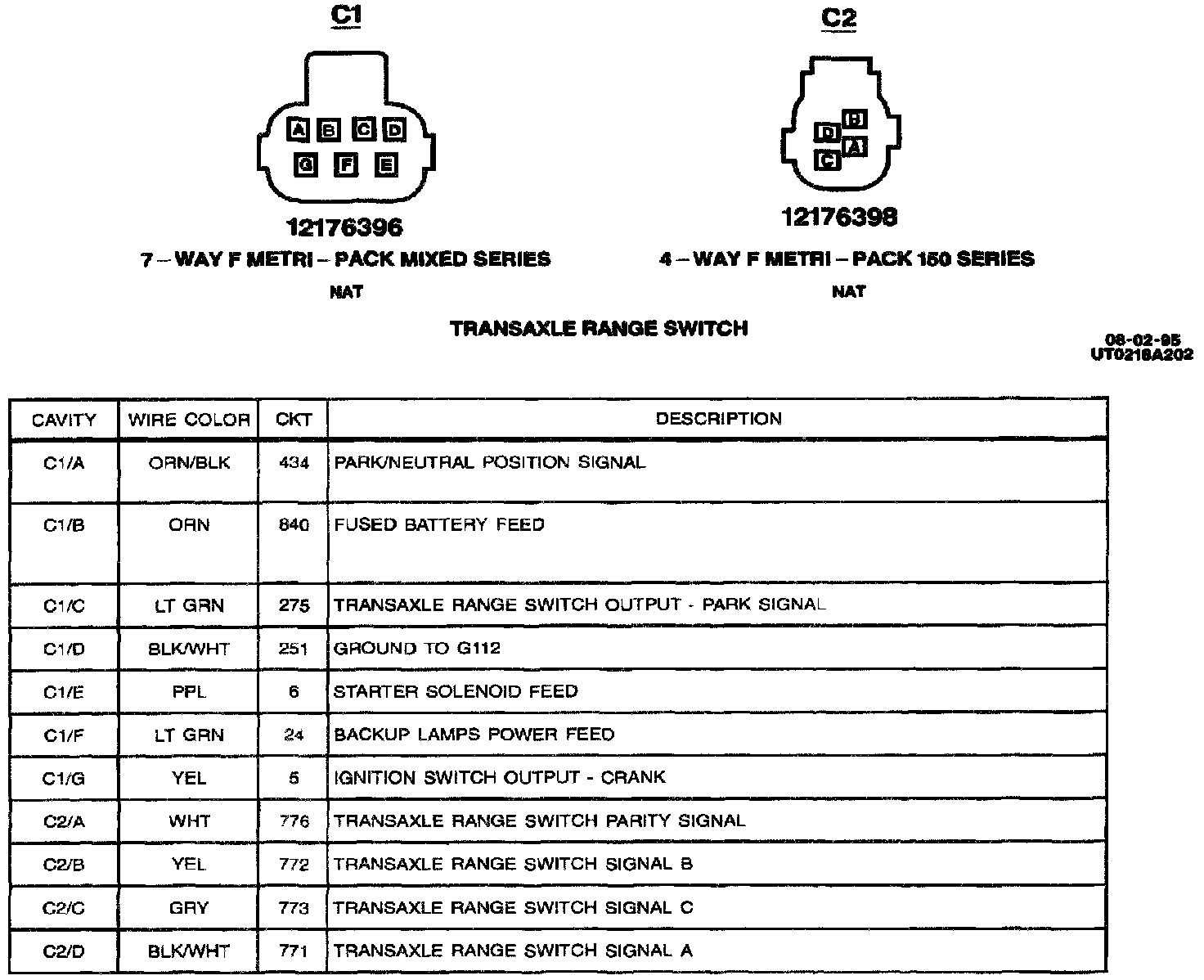

C1, C2: Transaxle Range Switch:
