Home >> Buick >> 1996 >> Century Sedan L4-2.2L VIN 4 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Antilock Brakes / Traction Control Systems >> Electronic Brake Control Module >> C1

C1

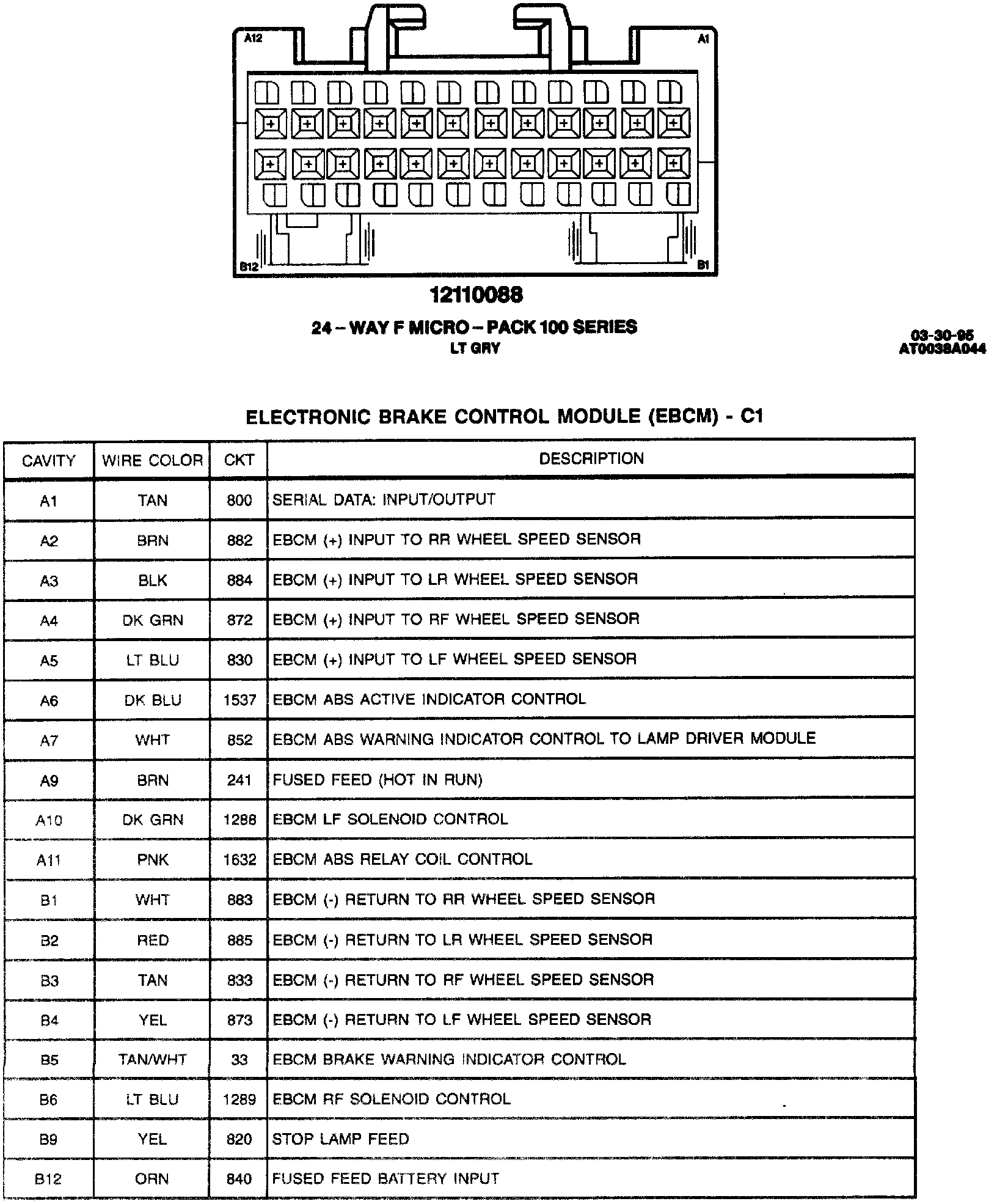

Electronic Brake Control Module: C1:
