A/C Compressor Control Relay
A/C Compressor Control Relay

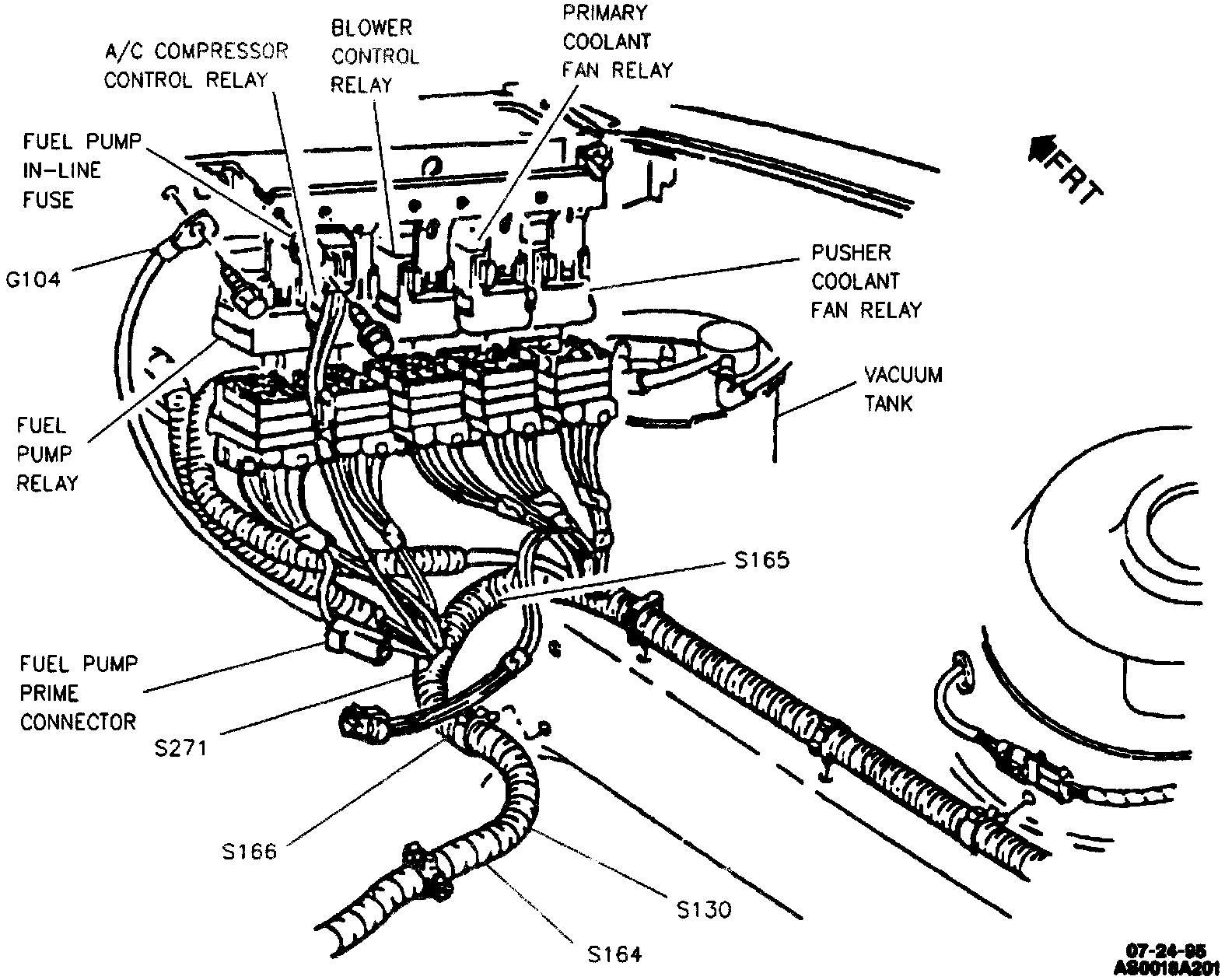

RH Front Of VIN M Engine Compartment (VIN 4 Similar):
