Home >> Buick >> 1996 >> Century Sedan L4-2.2L VIN 4 >> Repair and Diagnosis >> Diagrams >> Components >> Miscellaneous Components >> DRL Diode

DRL Diode

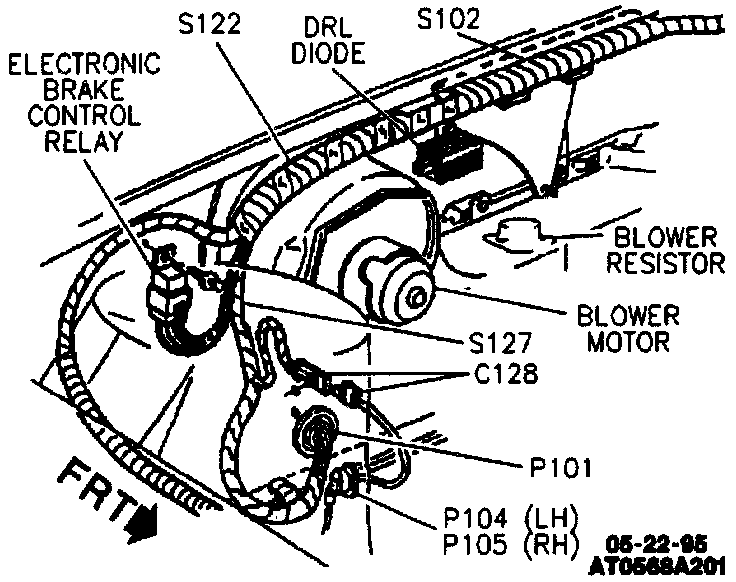

RH Rear Of Engine Compartment:
