Home >> Buick >> 1995 >> Century L4-2.2L VIN 4 >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse Block >> Application and ID

Fuse Block: Application and ID

Front View Of Fuse Block:

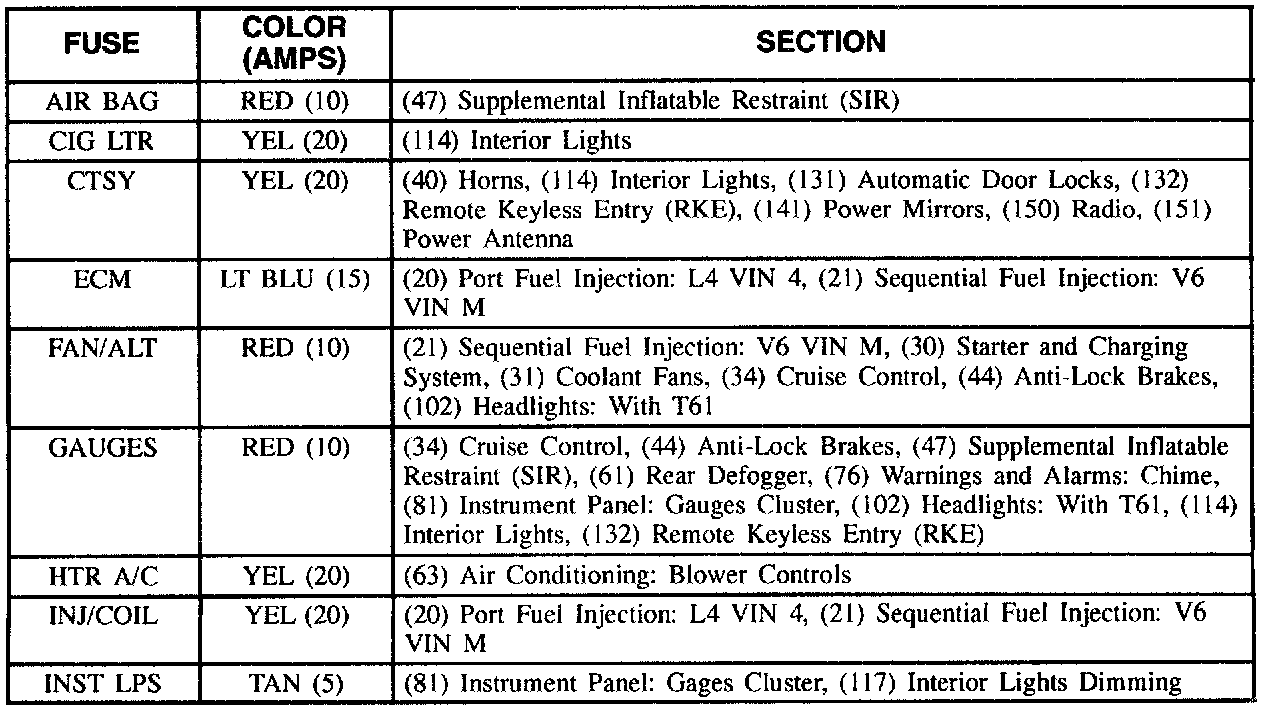

Fuse Block Details:

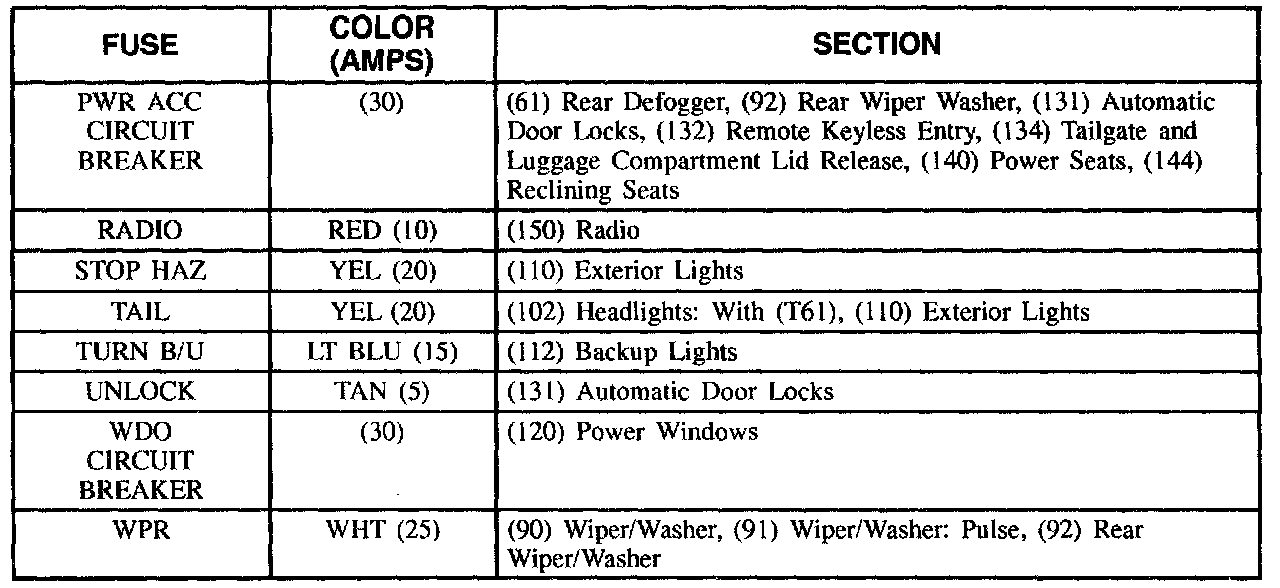

Fuse Block Details:
